■ Product Brief

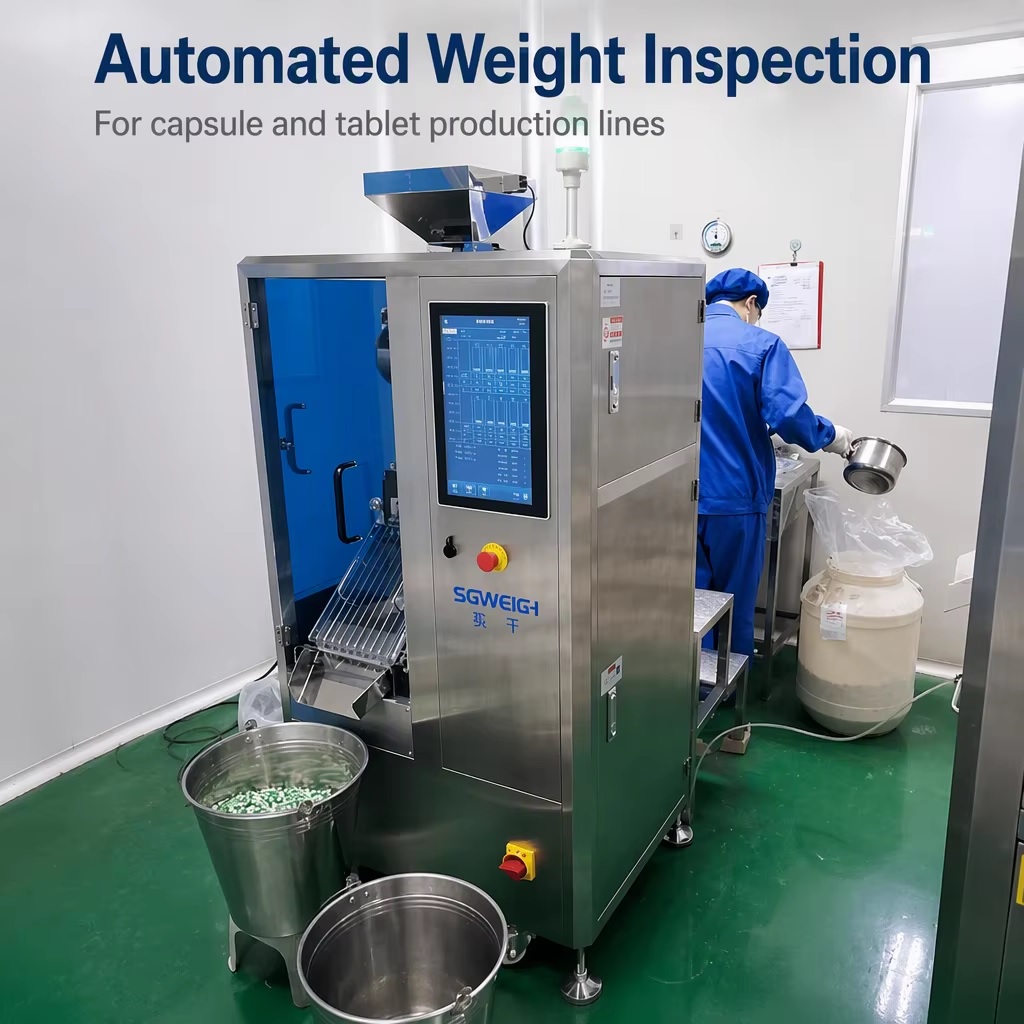

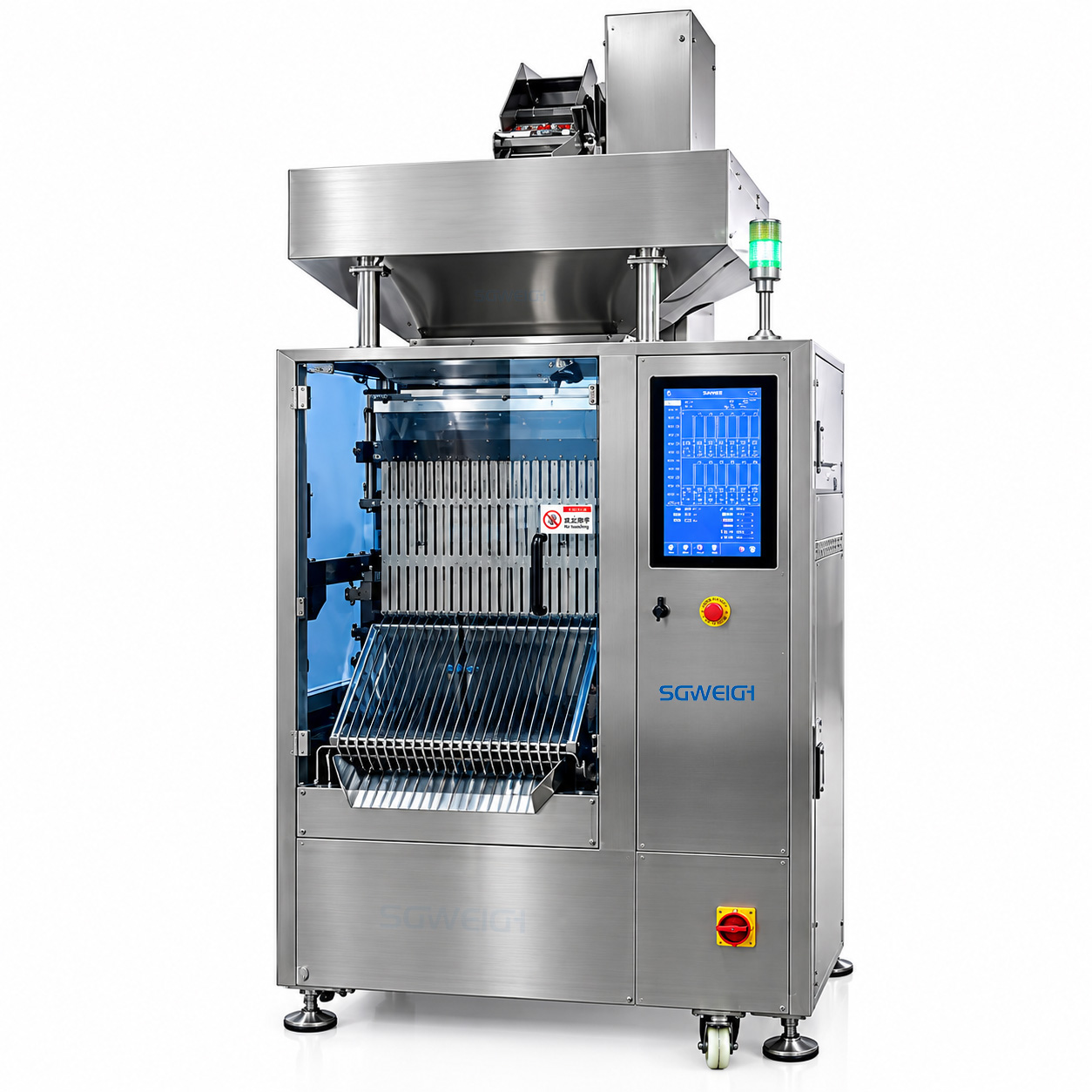

The 24 Lane Capsule Checkweigher is a high-speed multi-lane weighing inspection system designed for pharmaceutical and nutraceutical production lines. It uses 24 independent weighing channels to inspect capsules individually, helping manufacturers identify underweight, overweight, or out-of-tolerance products during continuous production.
By combining multi-channel weighing, high-speed signal processing, automatic classification, and reject control, the system can increase inspection capacity without relying on periodic manual sampling. Multi-lane capsule checkweighing is particularly suitable for high-volume capsule filling and automated pharmaceutical production, where consistent capsule weight and process control are important.
The High Speed Capsule Checkweigher can be integrated with capsule filling machines, capsule sorting systems, counting equipment, and downstream pharmaceutical packaging lines, providing an automated weight inspection step within the production process.
■ Technical Data
| Type | SG-CT24 |
| Weighing scope | 5-2000mg |
| Display scale | 0.1mg |
| Highest sorting accuracy | ±0.5mg |
| product specification | Capsule: 00#-5#（Other sizes or shapes subjrct to testing） |
| Highest sorting ability | 20 0,000 PCS/HR |
| Number of columns | 24 Lane |
| Power supply | AC-220V 50HZ |
| Compressed air | 0.3-0.9Mpa |
| Shell material | SUS304/316 |
■ Product Highlights
1. 24 Independent Weighing Lanes
- 24 parallel capsule inspection channels
- Independent weighing and signal processing
- Simultaneous multi-channel operation
- Suitable for high-volume pharmaceutical production
2. Individual Capsule Weight Inspection
- Automatically weighs capsules one by one
- Detects weight deviations during production
- Supports target weight and tolerance settings
- Suitable for 100% online weight inspection
3. Automatic Weight Classification
The system can classify capsules according to preset weight limits, such as:
- Underweight
- Qualified weight
- Overweight
- Unclassified / abnormal product
4. Automatic Reject System
Capsules outside the configured weight tolerance can be automatically removed from the production flow.
Possible reject functions include:
- Underweight capsule rejection
- Overweight capsule rejection
- Abnormal-product separation
- Reject confirmation
- Separate collection of qualified and rejected products
5. High-Speed Multi-Lane Processing
The 24-channel architecture allows multiple capsule streams to be inspected simultaneously, helping increase production capacity while maintaining centralized control.
6. HMI Touchscreen Control
- Product recipe management
- Target weight setting
- Upper/lower tolerance setting
- Lane status monitoring
- Production statistics
- Alarm information
- Parameter management
7. Data Recording & Traceability
Depending on configuration, the system can support:
- Production data recording
- Weight statistics
- Product recipe storage
- User access management
- Audit trail
- Electronic records
- Electronic signatures
These functions are commonly associated with pharmaceutical inspection systems requiring stronger data integrity and traceability.
8. Pharmaceutical-Friendly Design
- Stainless-steel construction
- Easy-access product-contact components
- Easy cleaning and maintenance
- Quick product changeover
- Reduced product damage during conveying and weighing
Pharmaceutical capsule checkweighers commonly use controlled capsule handling and vibration-reduction measures because small capsules require sensitive and stable weighing conditions.
■ Industry Applications
■ Company Profile
■ Cooperative Clients
■ Exhibition
■ Package & Logistics
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
