◆ Product Overview

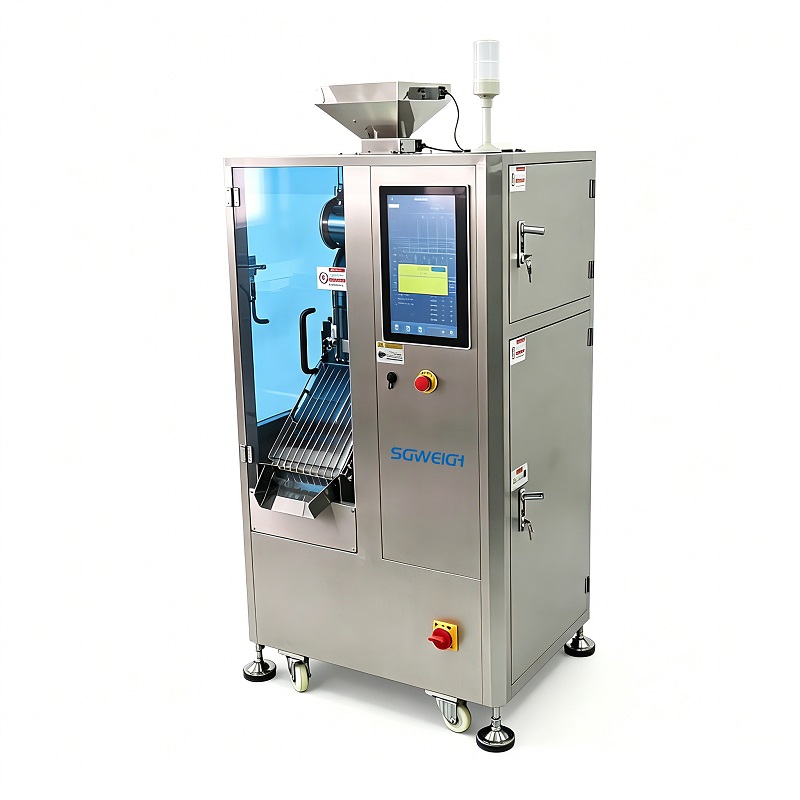

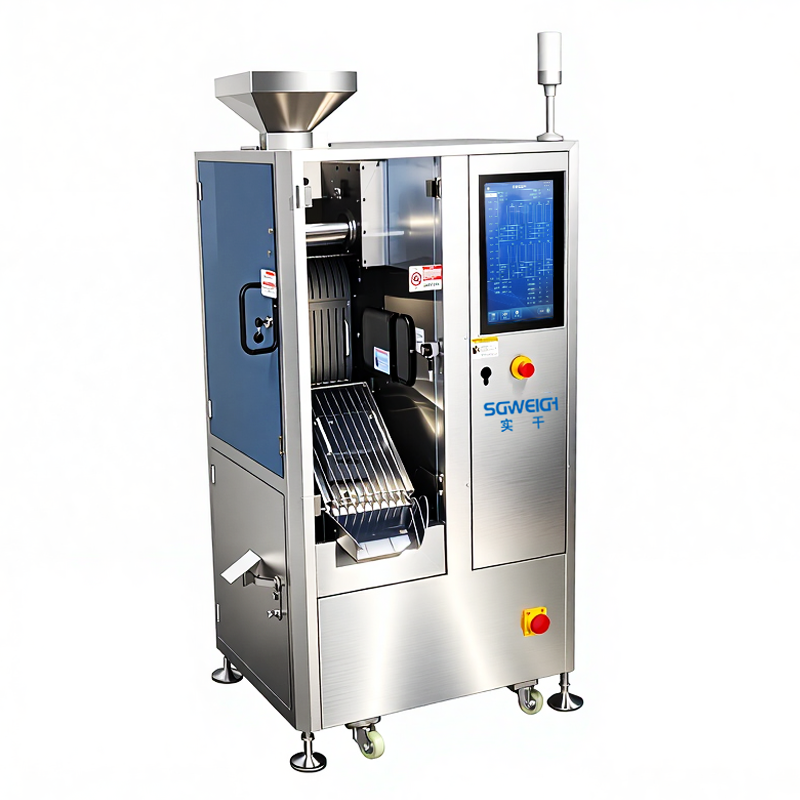

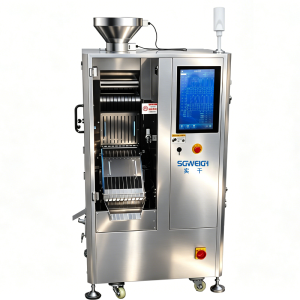

A 10-Lane Capsule Checkweigher is a high-speed pharmaceutical inspection system designed for 100% capsule weight verification in capsule production lines. Using ten independent weighing channels and high-precision load cells, the system automatically checks each capsule’s weight, identifies underweight or overweight products, and removes defective capsules in real time.
Widely used in pharmaceutical, nutraceutical, and healthcare supplement manufacturing, the Capsule Checkweigher helps ensure dosage accuracy, product consistency, GMP compliance, and production efficiency. Advanced models can achieve weighing accuracy of up to ±0.5 mg and throughput up to 75,000 capsules per hour, making them ideal for large-scale capsule production.
◆ Technical Parameters
| Type | SG-CT10 |
| Weighing scope | 5-2000mg |
| Display scale | 0.1mg |
| Highest sorting accuracy | ±0.5mg |
| product specification | Capsule: 00#-5#（Other sizes or shapes subjrct to testing） |
| Highest sorting ability | 75,000 PCS/HR |
| Number of columns | 10 Lane |
| Power supply | AC-220V 50HZ |
| Compressed air | 0.3-0.9Mpa |
| Shell material | SUS304/316 |
◆ Key Advantages
1. 100% Capsule Inspection
Every capsule is individually weighed to ensure accurate dosage and product consistency.
2. High-Speed Production
Supports throughput up to 75,000 capsules/hour with ten weighing lanes operating simultaneously.
3. Ultra-High Accuracy
Advanced weighing technology delivers accuracy up to ±0.5 mg, suitable for pharmaceutical-grade applications.
4. Automatic Rejection System
Underweight, overweight, and abnormal capsules are automatically removed without interrupting production.
5. Multi-Size Capsule Compatibility
Suitable for various capsule sizes, including empty and filled capsules.
6. User-Friendly Touchscreen Interface
Large color touchscreen supports recipe management, production monitoring, and parameter adjustment.
7. Data Recording & Traceability
Supports USB/Ethernet communication, production reports, audit trails, and integration with MES/ERP systems.
◆ Application Scope
◆ About Us
◆ Client Cases
◆ Exhibition Events
◆ Packaging & Shipping
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
