■ Product Brief

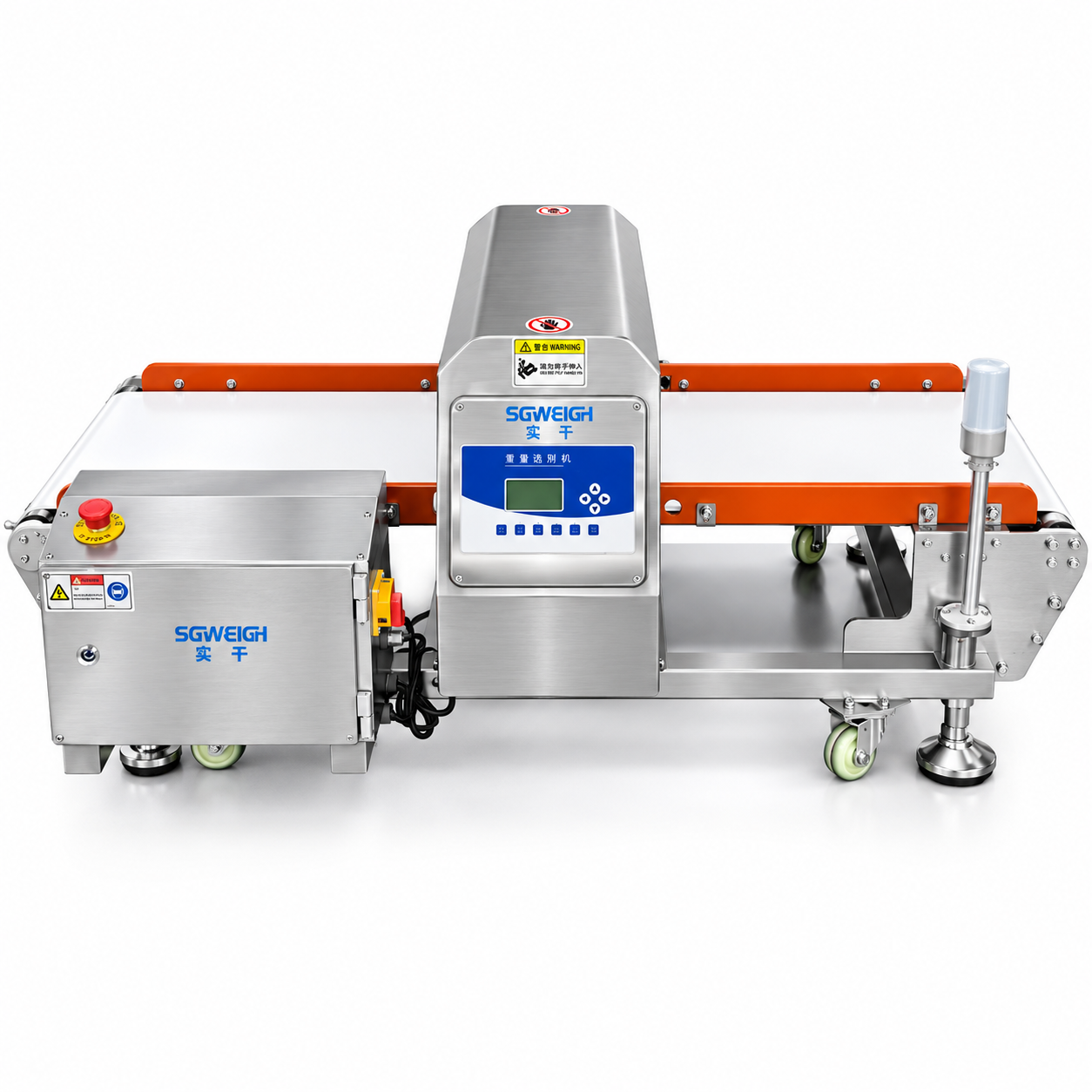

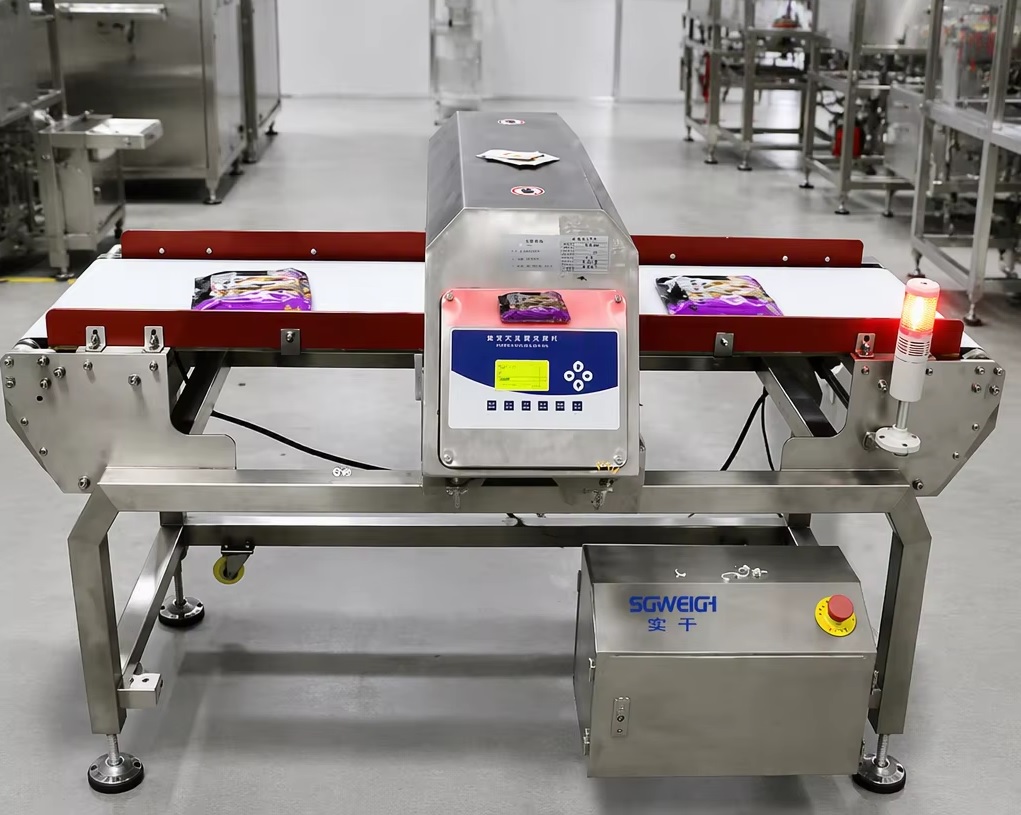

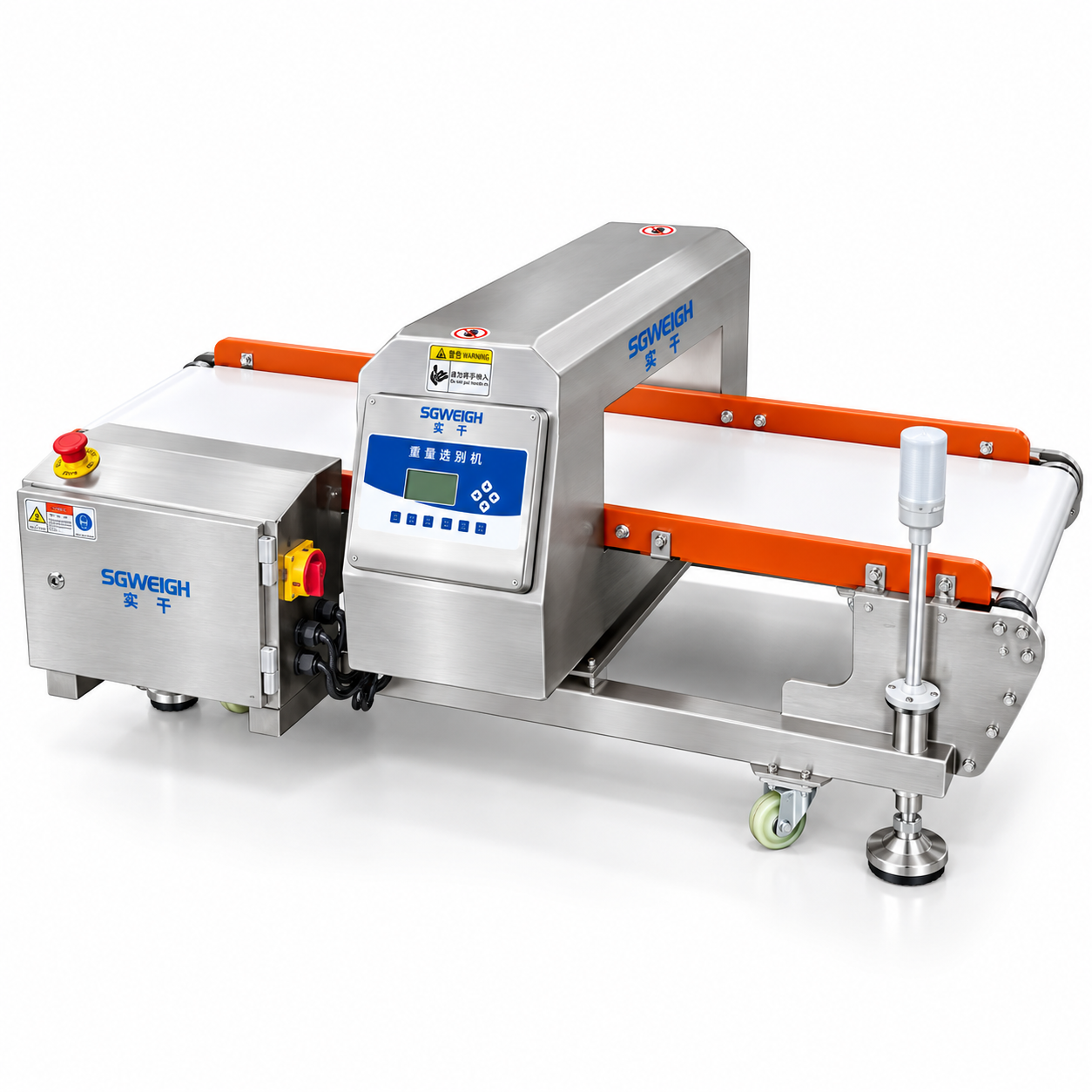

The Conveyor Metal Detector is an inline inspection system designed to detect metal contaminants in finished, packaged baby diapers and other disposable hygiene products before they leave the production line. The system combines a high-sensitivity metal detector with a conveyor and automatic rejection mechanism, enabling continuous inspection without interrupting product flow.
Industrial Metal Detector can detect common metallic contaminants, including ferrous, non-ferrous and stainless-steel metals, helping manufacturers identify accidental metal contamination introduced during cutting, forming, conveying, packaging or other production processes. Conveyor metal detection systems are widely used for packaged products and can be configured with automatic rejection devices according to the package and production-line requirements.
■ Technical Data
| Type | SG-M500 |
| Machine Grade | Food Grade |
| Detect method | Electromagnetic wave detection |
| Detecting width | 150-1000mm (accept custom） |
| Detecting height | 80-500mm (accept custom） |
| Detecting sensitivity | Fe 0.8mm, Non-Fe1.5mm, SUS 1.5mm |
| Detecting adjustment | Intelligent adjustable |
| Belt Speed | 25m /min (or specified) |
| Protection class | IP65 |
| Conveyor belt material | food grade PU belt |
| Power | 300W |
| Power supply | AC220V,50/60Hz (Or Customized) |
| Alarm mode | The buzzer alarm, the motor automatically stop or auto rejection |
■ Product Highlights
1. High-Sensitivity Metal Detection
Detects ferrous, non-ferrous and stainless-steel metal contaminants in finished diaper packages.
2. Continuous Inline Inspection
Automatically inspects packaged baby diapers as they pass through the conveyor tunnel without stopping normal production flow.
3. Automatic Reject System
Removes contaminated packages from the production line through a suitable rejection method, such as a flap, pusher, air blast or conveyor-stop system.
4. Product Learning & Parameter Management
Product settings can be configured for different diaper sizes and packaging formats. Product-learning and digital signal-processing functions can help maintain stable detection performance.
5. Touchscreen HMI Control
Operators can configure inspection parameters, monitor production status and manage product recipes through the control interface.
6. Production-Line Integration
The conveyor metal detector can be integrated with packaging machines, existing conveyors, checkweighers and downstream case-packing equipment.
7. Finished Product Quality Inspection
Provides an additional inspection point before finished packed diapers enter secondary packaging or shipment.
8. Stainless-Steel Construction
A stainless-steel conveyor structure can be used for durable industrial operation and easier cleaning and maintenance.
■ Industry Applications
■ Company Profile
■ Cooperative Clients
■ Exhibition
]
■ Package & Logistics
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
