◆ Product Overview

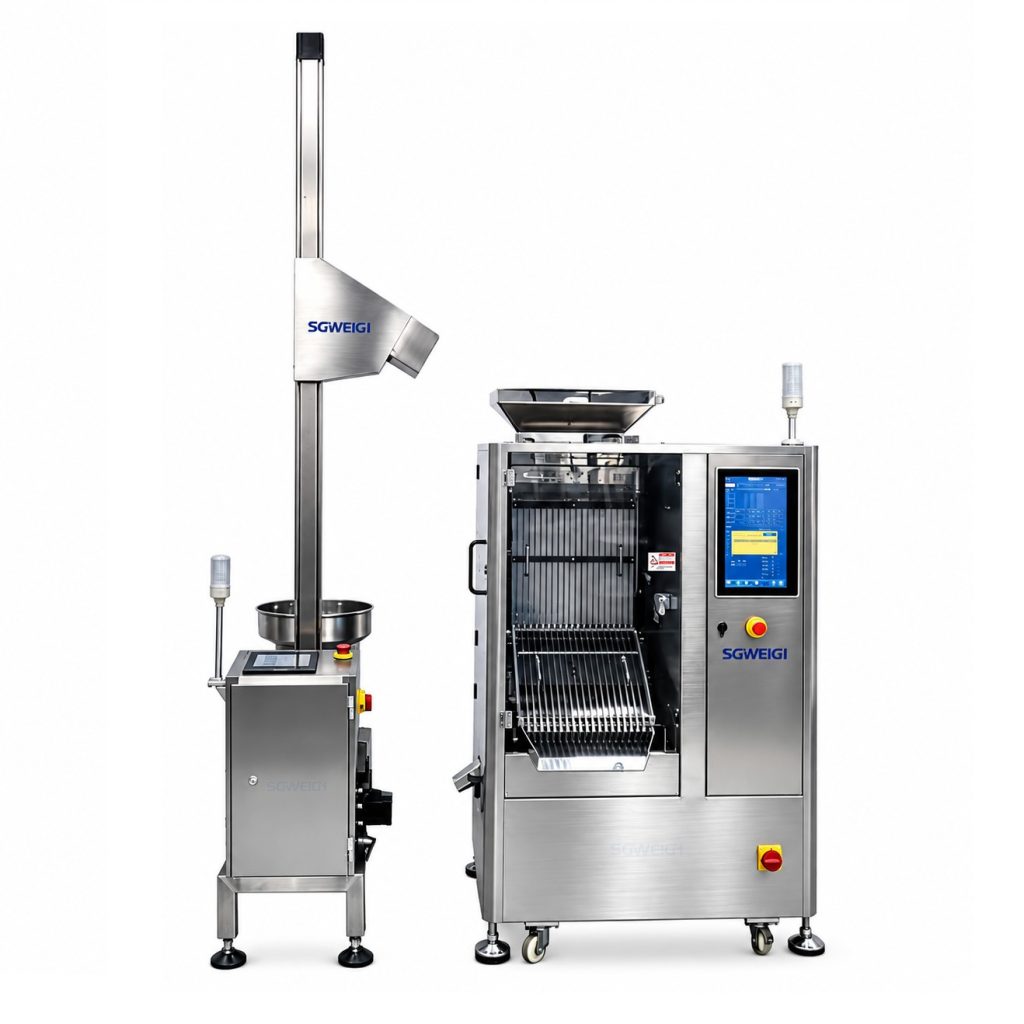

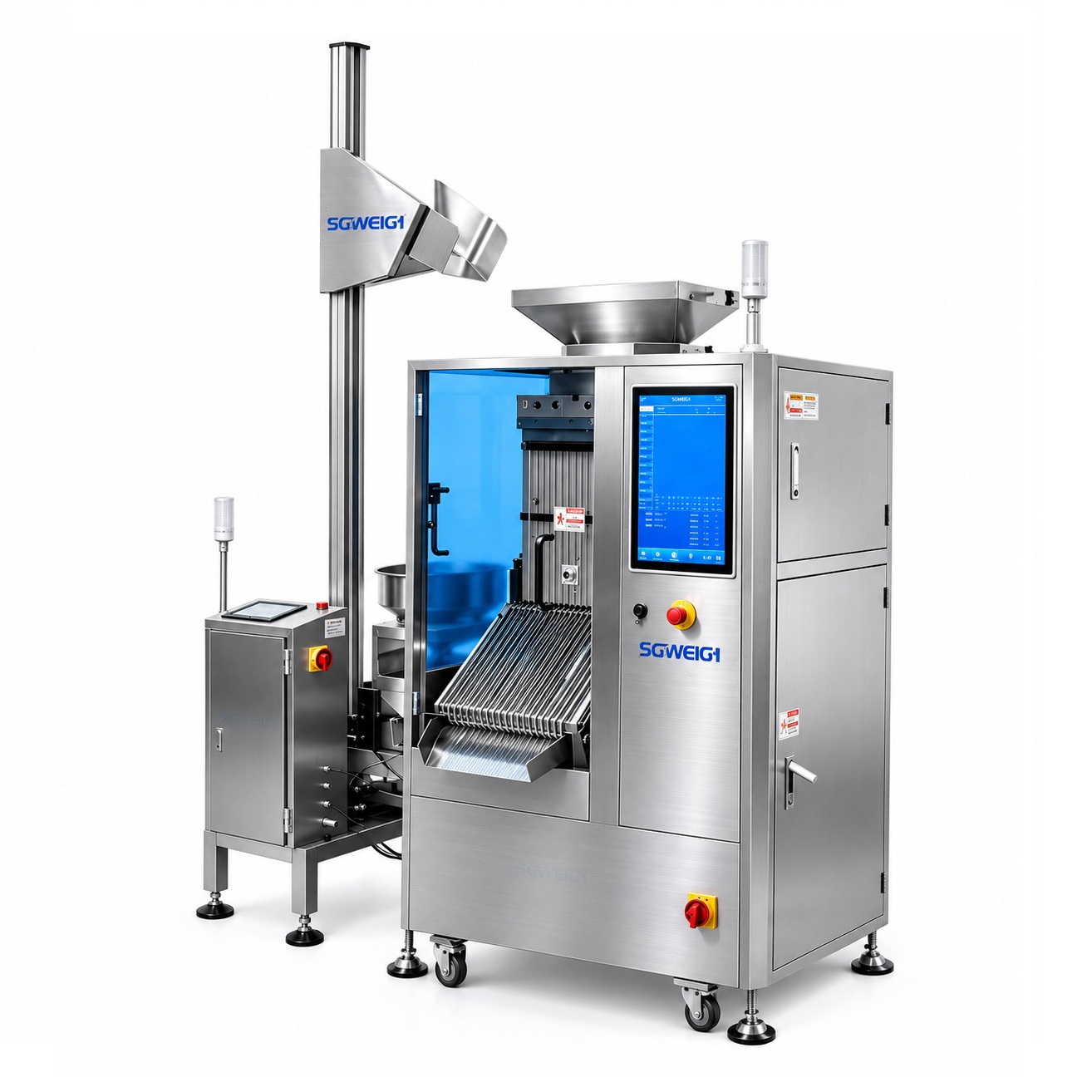

The 20 Lane Hard Capsule Checkweigher is a high-speed multi-lane dynamic weighing system designed for accurate, 100% in-line weight inspection of hard capsules. With 20 independent weighing lanes, the system can process large volumes of capsules while maintaining stable weighing performance and consistent quality control.
Each capsule is individually weighed during continuous production. The system compares the measured weight with preset target limits and automatically identifies and rejects capsules that are underweight, overweight, or outside the specified tolerance range.
With its multi-lane architecture, high-speed weighing technology, compact stainless steel construction, and configurable control system, the Capsule Checkweigher is suitable for automated capsule filling and packaging lines where high throughput, weight accuracy, product traceability, and reliable quality inspection are required.
◆ Technical Parameters
| Type | SG-CT20 |
| Weighing scope | 5-2000mg |
| Display scale | 0.1mg |
| Highest sorting accuracy | ±0.5mg |
| product specification | Capsule: 00#-5#（Other sizes or shapes subjrct to testing） |
| Highest sorting ability | 150,000 PCS/HR |
| Number of columns | 20 Lane |
| Power supply | AC-220V 50HZ |
| Compressed air | 0.3-0.9Mpa |
| Shell material | SUS304/316 |
◆ Key Advantages
1.20-Lane Parallel Weighing – Simultaneously weighs capsules through 20 independent lanes for high production capacity.
2.100% Weight Inspection – Performs individual weight checking to help identify missing, underweight, or overweight capsules.
3.High-Speed Dynamic Weighing – Supports continuous in-line inspection without interrupting production.
4.Automatic Reject System – Removes capsules outside preset weight tolerances automatically.
5.High Accuracy Weight Control – Provides stable and repeatable weighing performance for demanding production environments.
6.Multi-Parameter Management – Stores and manages product recipes, weight limits, and inspection parameters.
7.Real-Time Monitoring – Displays production quantity, pass rate, rejected quantity, and weighing status.
8.Touchscreen Operation – User-friendly HMI allows quick parameter setting and production monitoring.
9.Stainless Steel Construction – Designed for hygienic, durable, and easy-to-clean operation.
10.Line Integration – Can be integrated with capsule filling, sorting, conveying, and packaging systems.
