◆ Product Overview

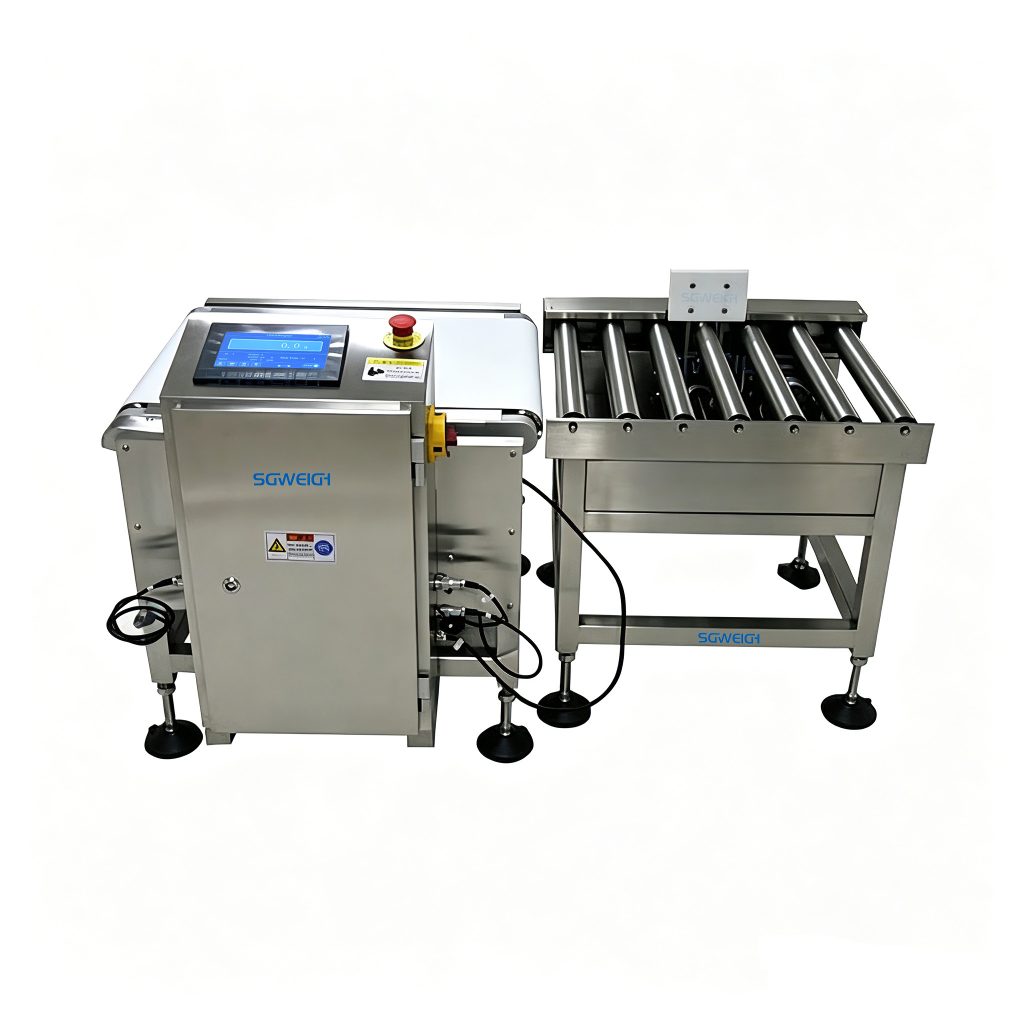

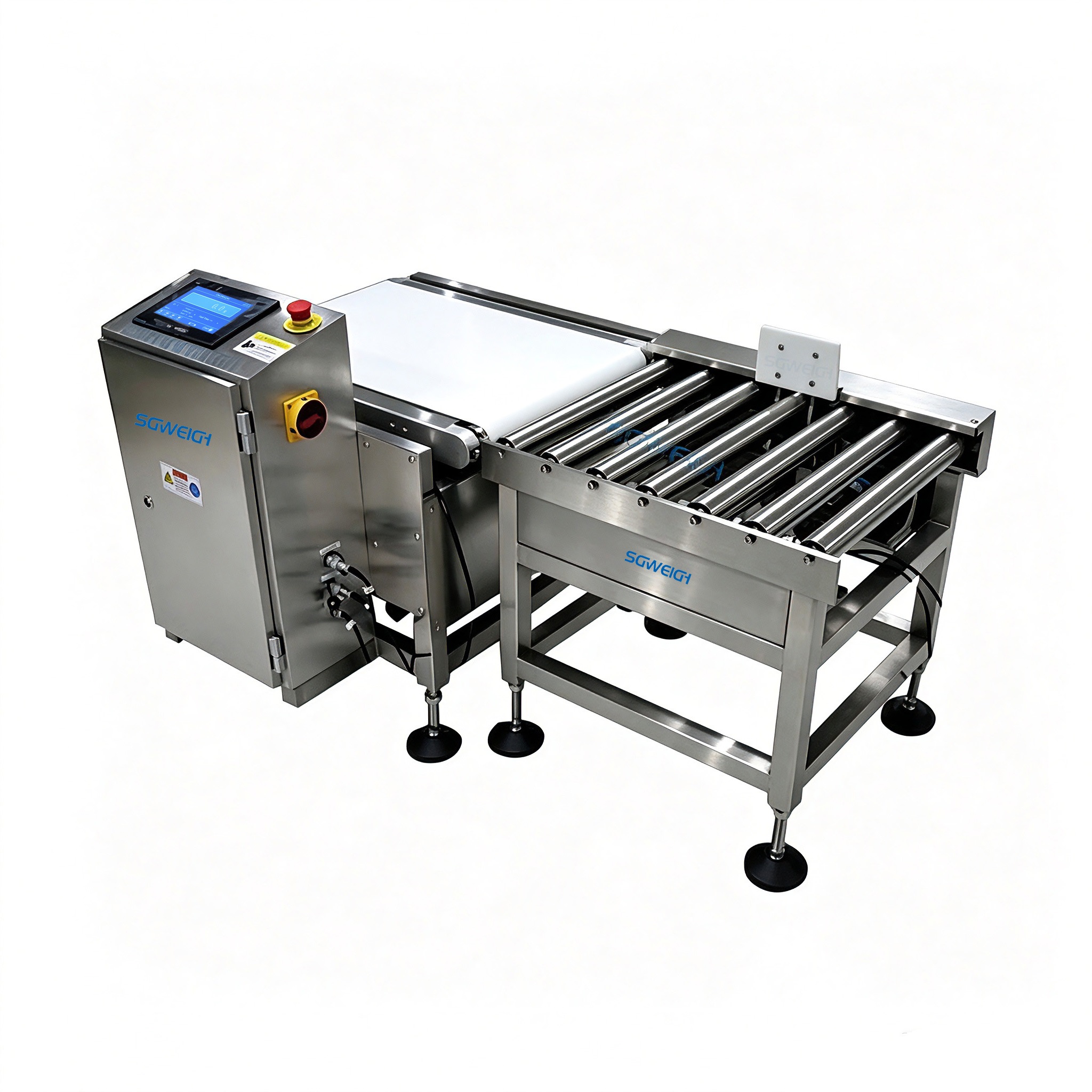

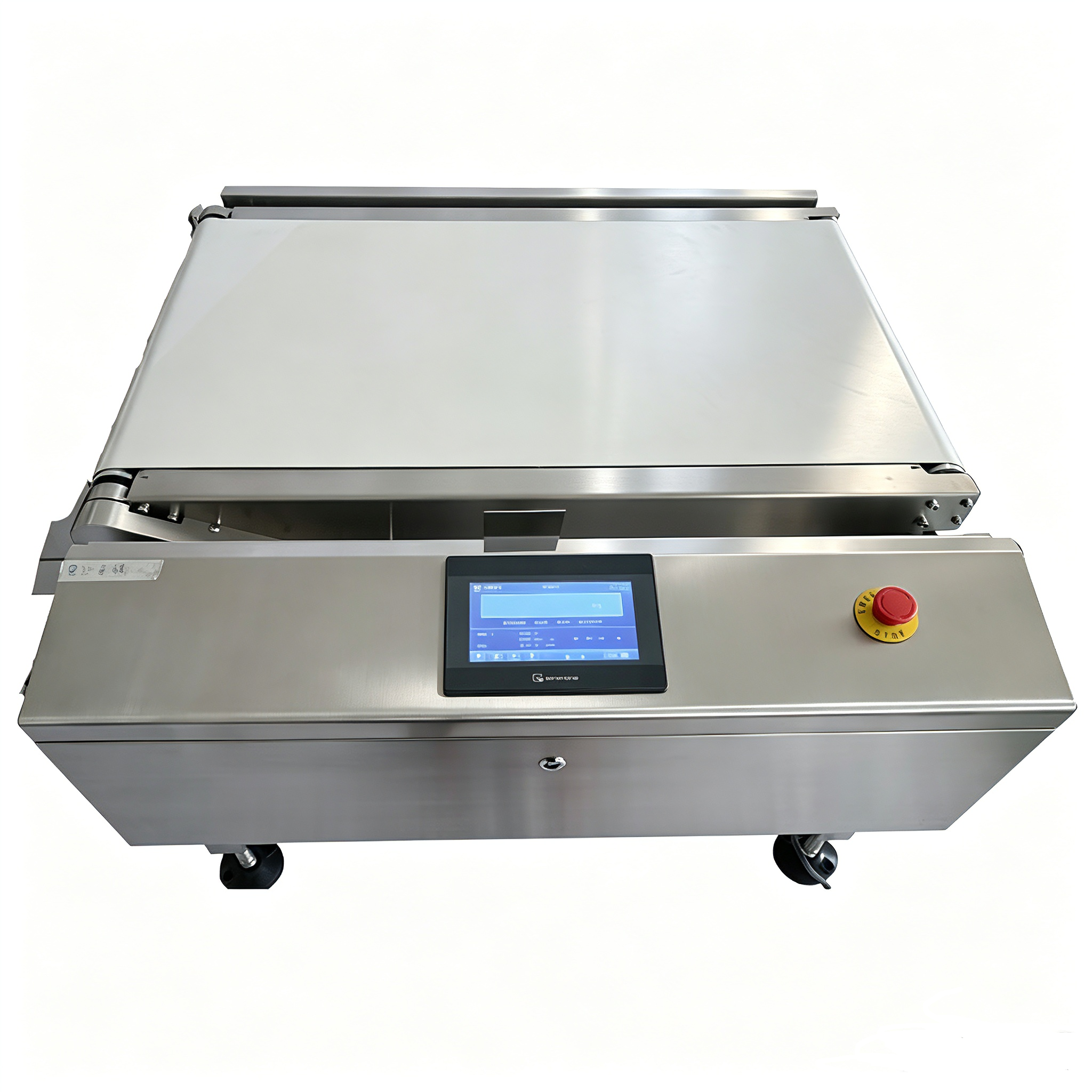

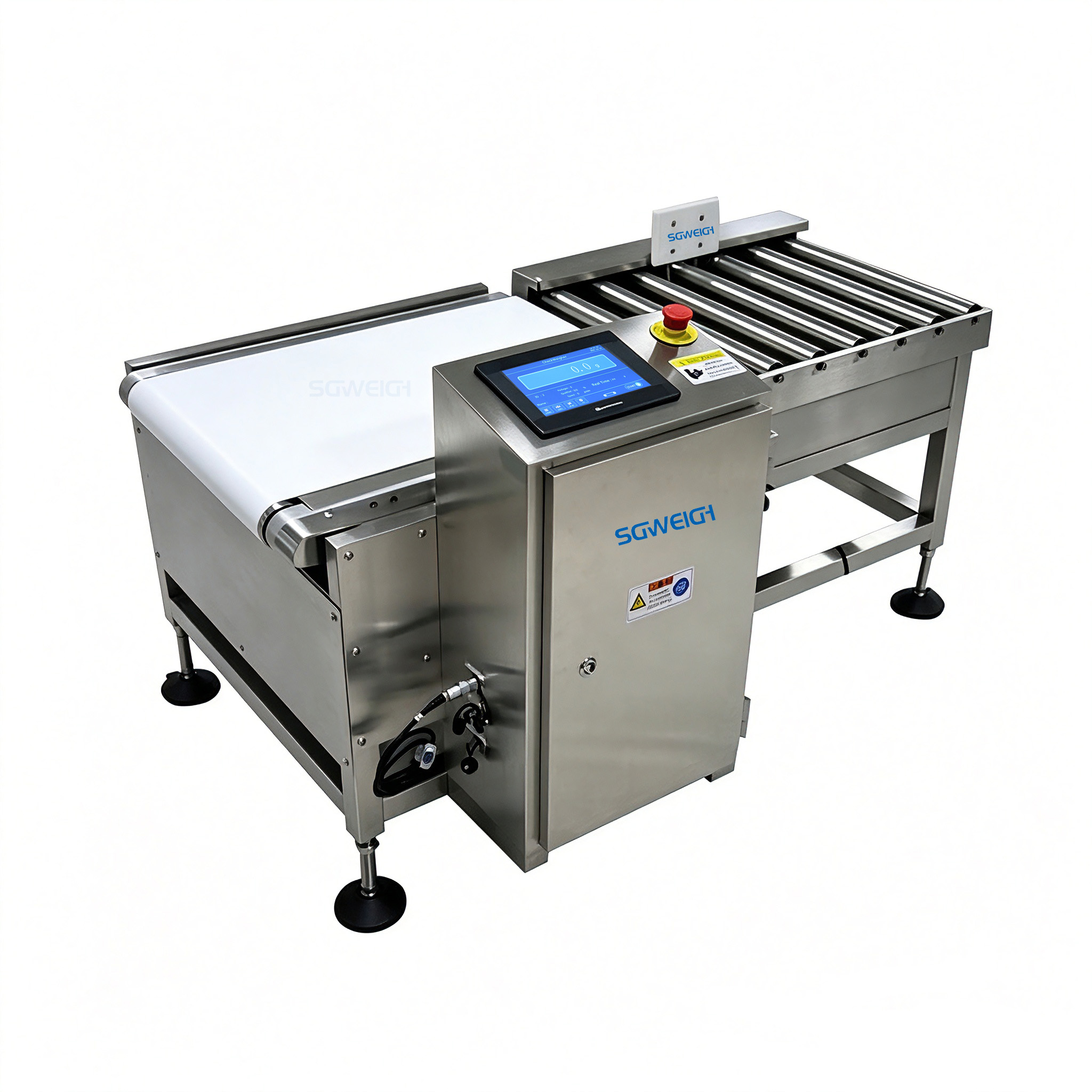

Heavy-Duty Conveyor Checkweigher is designed for automatic in-line weighing of large, heavy, or high-load products. It combines a robust conveyor structure, high-capacity weighing sensor, and intelligent control system to provide stable and accurate dynamic weight inspection during continuous production.
The Heavy Duty Checkweigher can automatically identify products outside the preset weight tolerance and activate a suitable reject mechanism. It is suitable for applications involving heavy bags, cartons, boxes, containers, industrial products, and other large packages.
◆ Technical Parameters
| Type | SG-600 |
| Weighing Range | 0.5-50Kg |
| Limited of product | L: 800 W:600 H: 3-400mm |
| Accuracy | ±20g Depends on product |
| Division Scale | 1g |
| Belt Speed | 0-40 m/min |
| Max Speed | 30 pcs/min |
| Belt Width | 600mm |
| Machine Weight | 80+50kg |
| Power | about 500W |
| Main Material | SUS304/316 stainless steel |
◆ Key Advantages
1.Heavy-load conveyor structure for demanding applications.
2.High-capacity weighing system for large and heavy products.
3.Accurate dynamic weighing during continuous production.
4.Automatic overweight and underweight detection.
5.Automatic reject system for out-of-tolerance products.
6.Adjustable conveyor speed and weighing parameters.
7.Stainless steel construction for industrial environments.
8.Easy-to-use touchscreen control.
9.Data recording and production statistics.
10.Customizable conveyor size, weighing range, and reject system.
◆ Application Scope
◆ About Us
◆ Client Cases
◆ Exhibition Events
◆ Packaging & Shipping
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
