◆ Product Overview

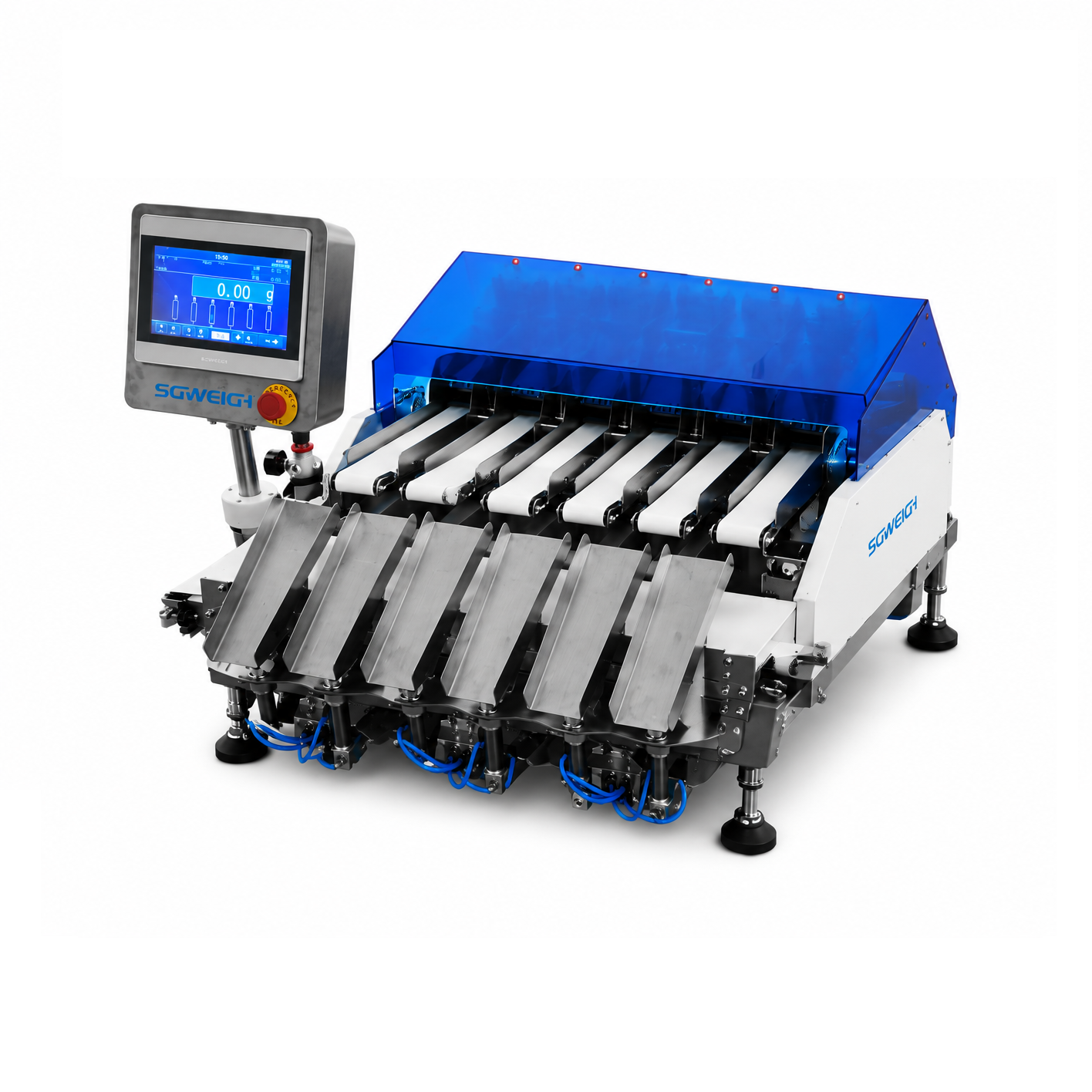

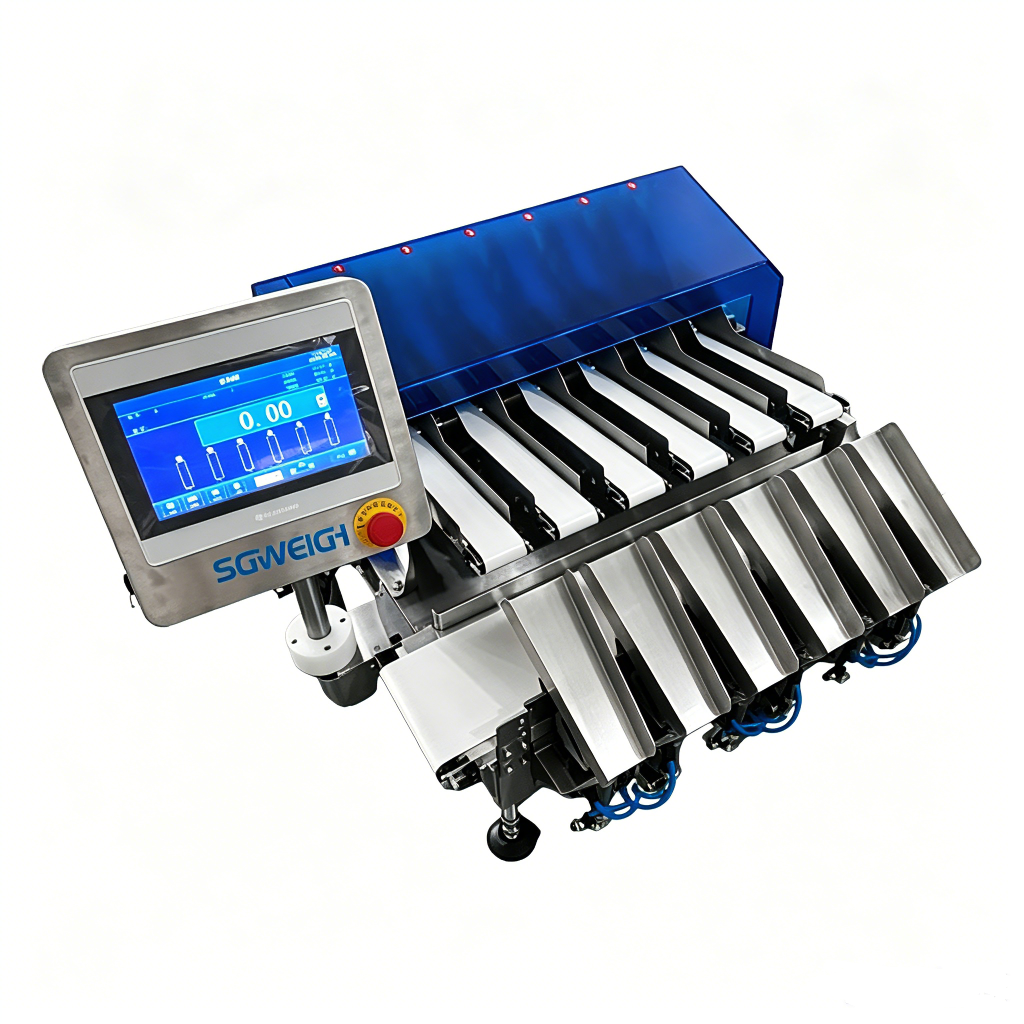

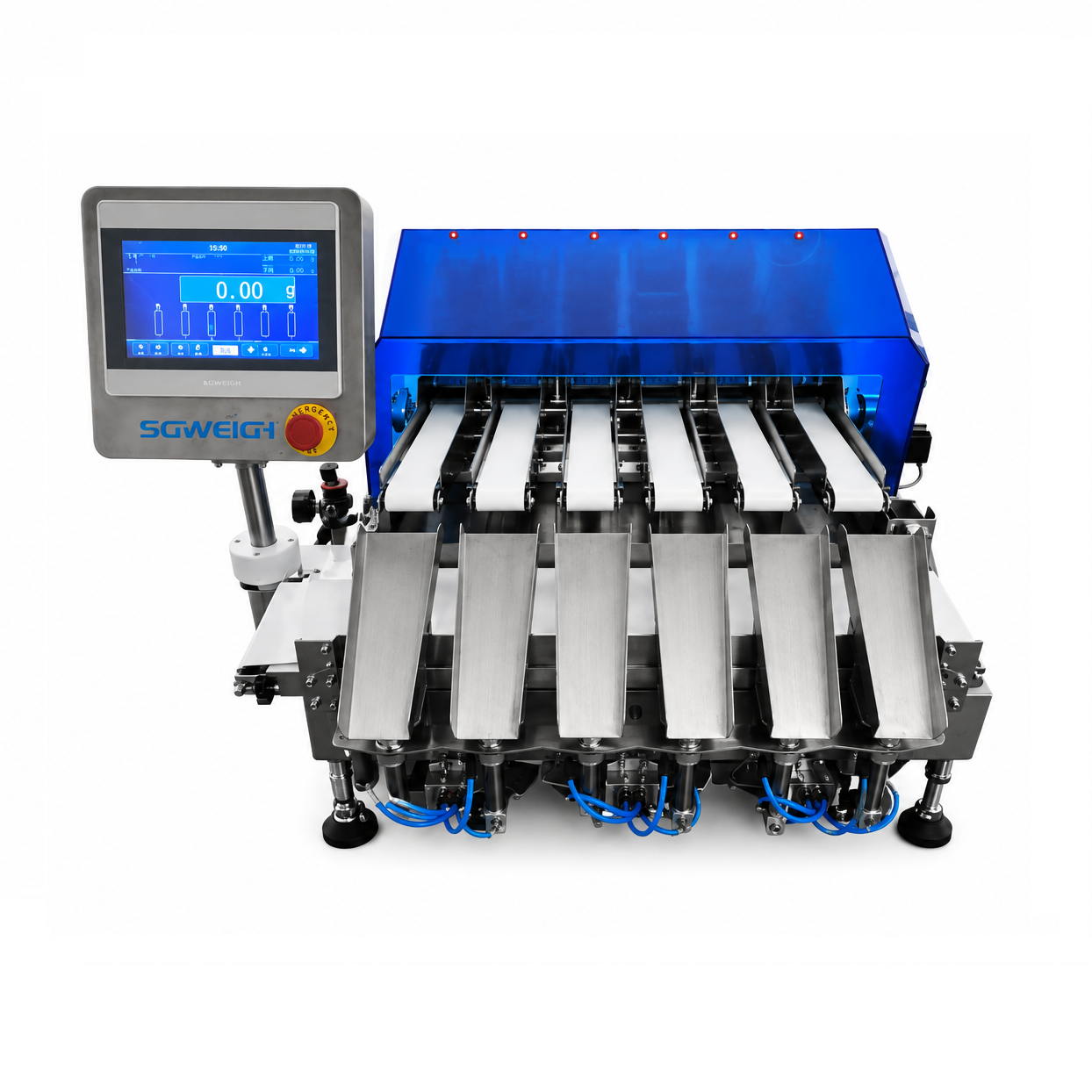

The 6 Lane Checkweigher is a high-efficiency multi-lane dynamic weighing system designed for the simultaneous weight inspection of small packaged products. Featuring six independent weighing lanes, the system can inspect multiple products at the same time, significantly increasing production throughput while maintaining stable and accurate weight control.
Each lane operates with an independent weighing and detection mechanism, allowing the Six-lane Checkweigher to continuously measure product weight during high-speed production. Products outside the preset weight tolerance can be automatically identified and rejected, helping manufacturers detect underweight, overweight, missing-product, and incomplete-package issues.
◆ Technical Parameters
| Model | SG-6X |
| Weighing Range | 1-50g |
| Accuracy | 0.01 gram (depending on the product) |
| Sorting Speed | 70 pcs/min (one lane) |
| Conveying Speed | 20-100m/min |
| Operation Method | Touch operation |
| Conveying Direction | Can be placed according to the actual situation on site |
| Elimination Method | Lifting Rejection |
| Machine Structure | Stainless steel (SUS304/316) |
| Power Supply | 220V 50-60HZ |
| Power | About400W |
◆ Key Advantages
1.6-lane simultaneous weighing for higher production efficiency.
2.High-speed dynamic weight inspection without stopping production.
3.Independent weighing control for each inspection lane.
4.Automatic overweight and underweight detection.
5.Automatic rejection of non-conforming products.
6.Real-time weight data monitoring and statistics.
7.Recipe storage for quick product changeovers.
8.Touchscreen operation with intuitive parameter settings.
9.Customizable lane width and weighing range.
10.Production line integration with packaging and filling equipment.
11.Data recording and production statistics.
12.Stainless-steel structure for industrial production environments.
◆ Application Scope
◆ About Us
◆ Client Cases
◆ Exhibition Events
◆ Packaging & Shipping
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
