■ Product Brief

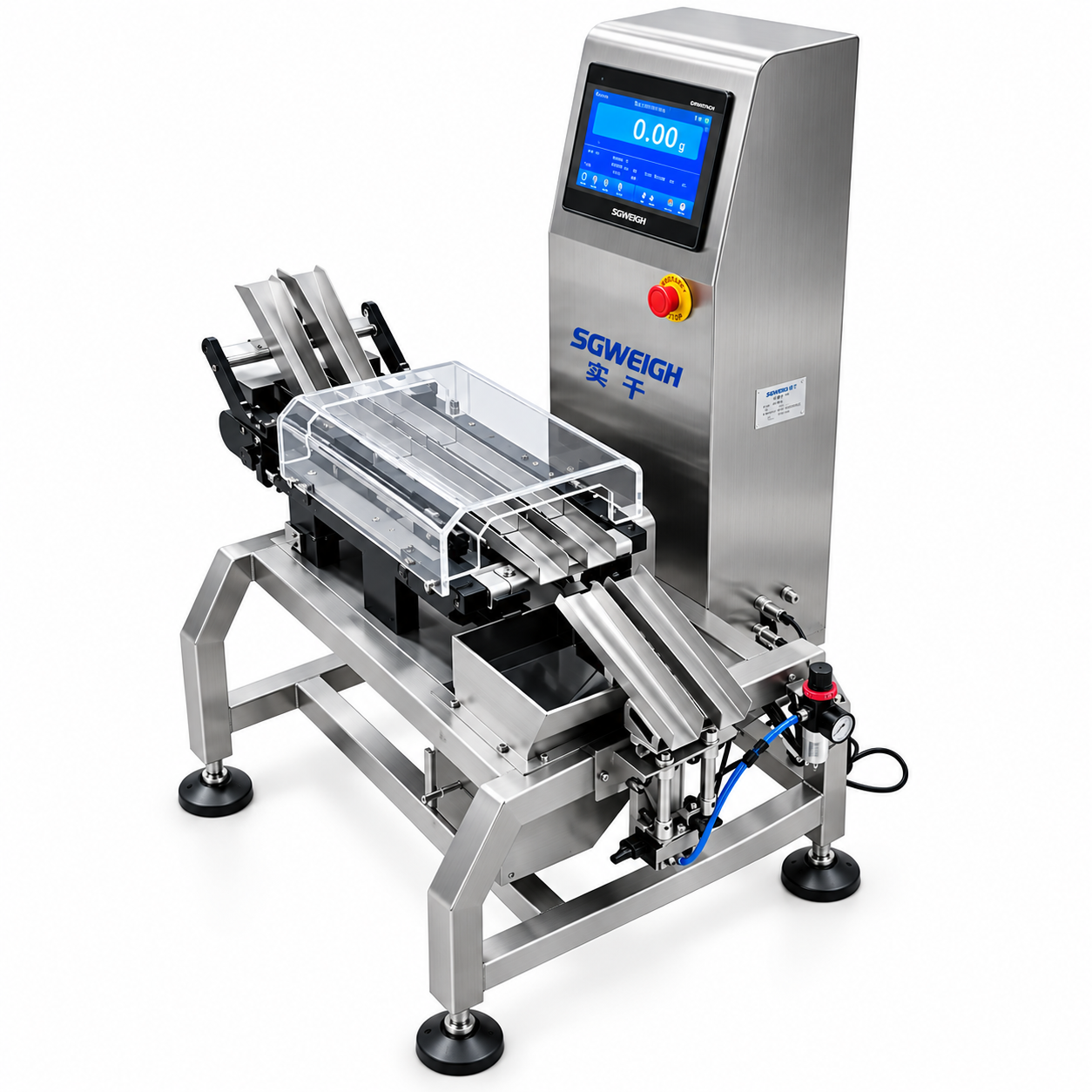

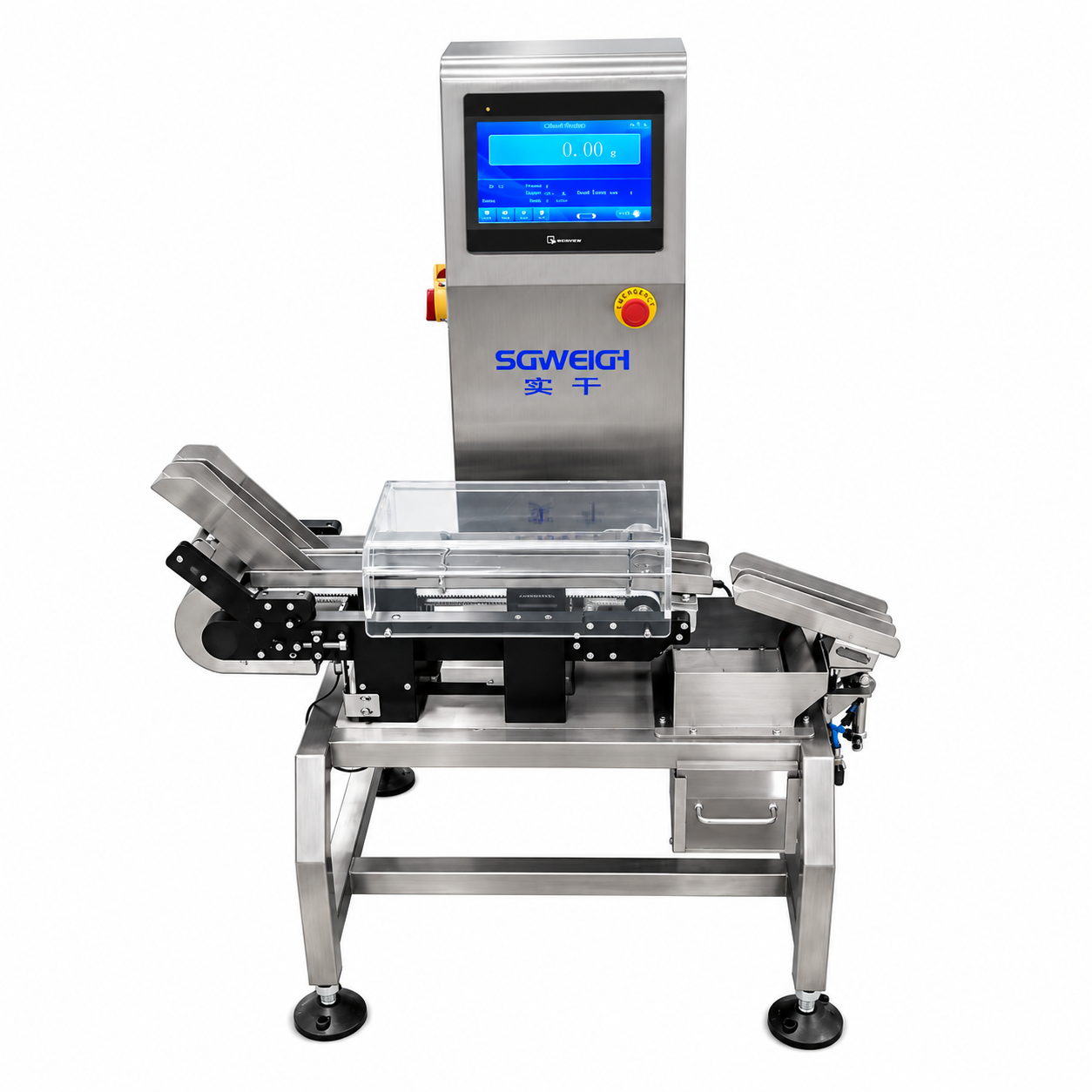

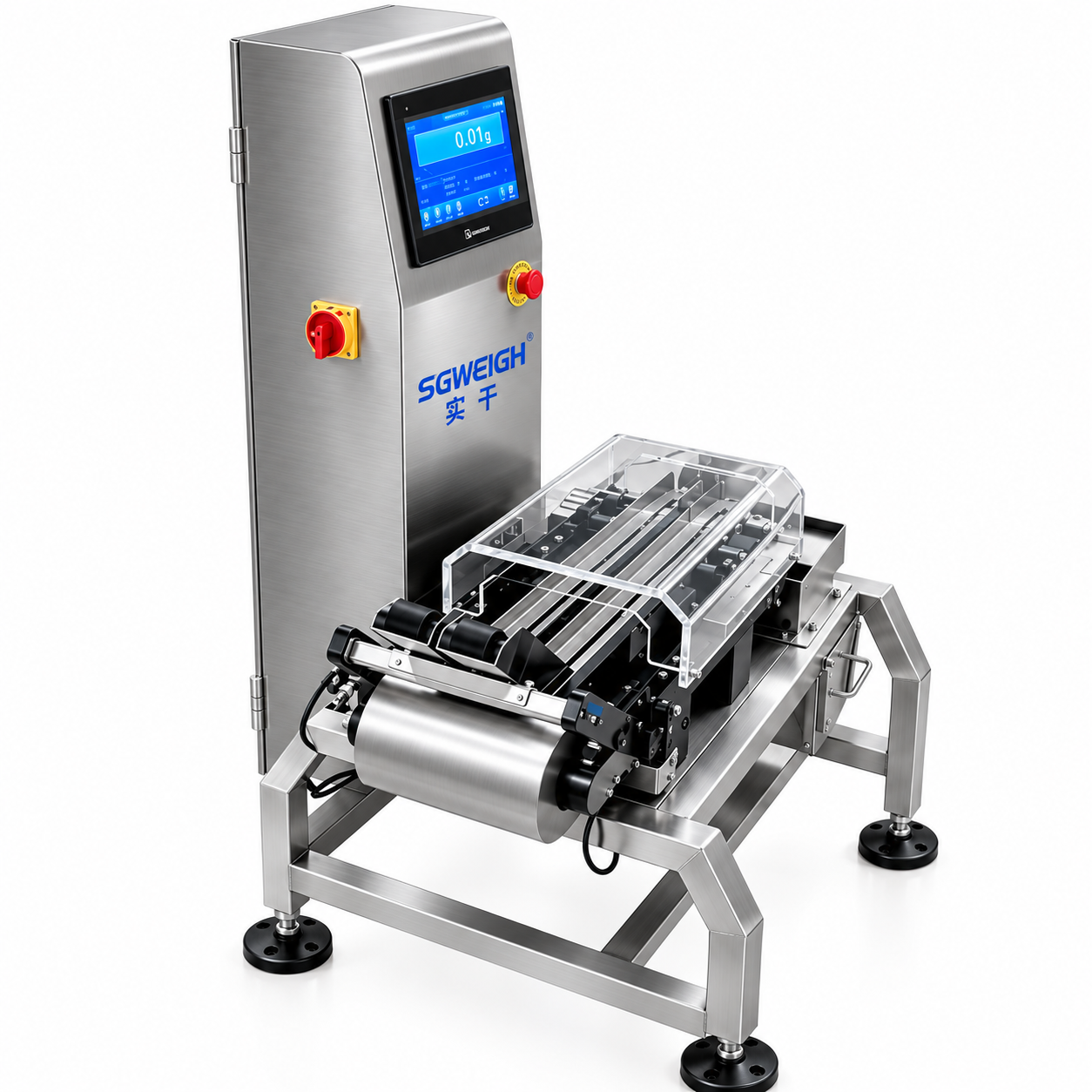

The 2-Track Stick Pack Checkweigher is a high-precision inline weighing system designed for automatic weight inspection of stick packs, narrow sachets, and small single-dose packages. It is engineered to connect directly with a 2-lane stick pack packaging machine, enabling continuous weight inspection of products from two parallel packaging lanes within one integrated production line.
With a target weighing resolution of 0.01g, this Dual-lane Checkweigher helps manufacturers monitor individual package weight, identify underweight and overweight products, and improve filling consistency. Actual sorting accuracy depends on product characteristics, package dimensions, production speed, and operating conditions and should be verified through application testing.
■ Technical Data
| Model | SG-2X |
| Weighing range | 1-100g |
| Product restrictions | L:180 W-40 H:2-20(mm) |
| Sorting accuracy | ±0.01g (Depends on products) |
| Graduation value | 0.01g |
| Maximum speed | 70 pcs/min |
| Belt width | 100mm (customizable) |
| Machine weight | about 70kg |
| Power supply | AC220V±10%50HZ |
| Power | about 200W |
| Main material | SUS304/316 stainless steel |
■ Product Highlights
1. Dual-track weighing: Inspects stick packs from two parallel packaging lanes.
2. 0.01g weighing resolution: Supports fine weight monitoring for compatible lightweight packages.
3. Automatic dynamic checkweighing: Measures individual packages while they move along the conveyor.
4. Independent lane monitoring: Supports lane-specific weight inspection when configured with independent weighing channels.
5. Adjustable weight limits: Sets target weight and upper/lower tolerance limits for each product.
6. Automatic rejection: Removes underweight or overweight products using a compatible reject system.

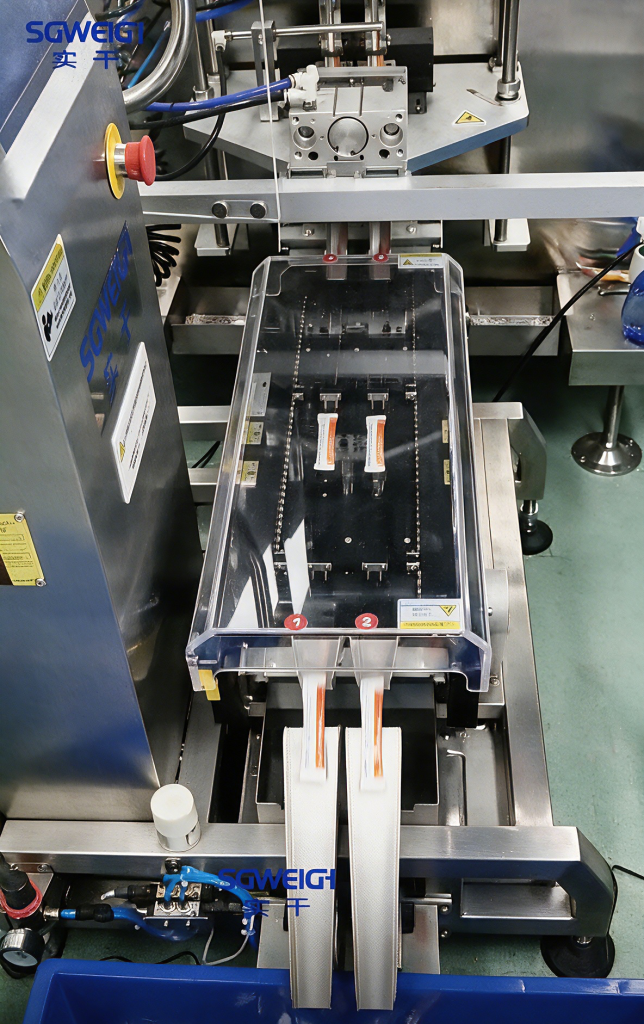

7. Packaging machine integration: Connects with compatible 2-lane stick pack filling and sealing machines.
8. Production data analysis: Optional weight statistics, trend charts, and production reports.
9. Product recipe storage: Optional presets for faster product changeover.
10. Customizable configuration: Conveyor width, transfer height, rejection method, and communication interfaces can be selected to suit the line.
