Product Summarize

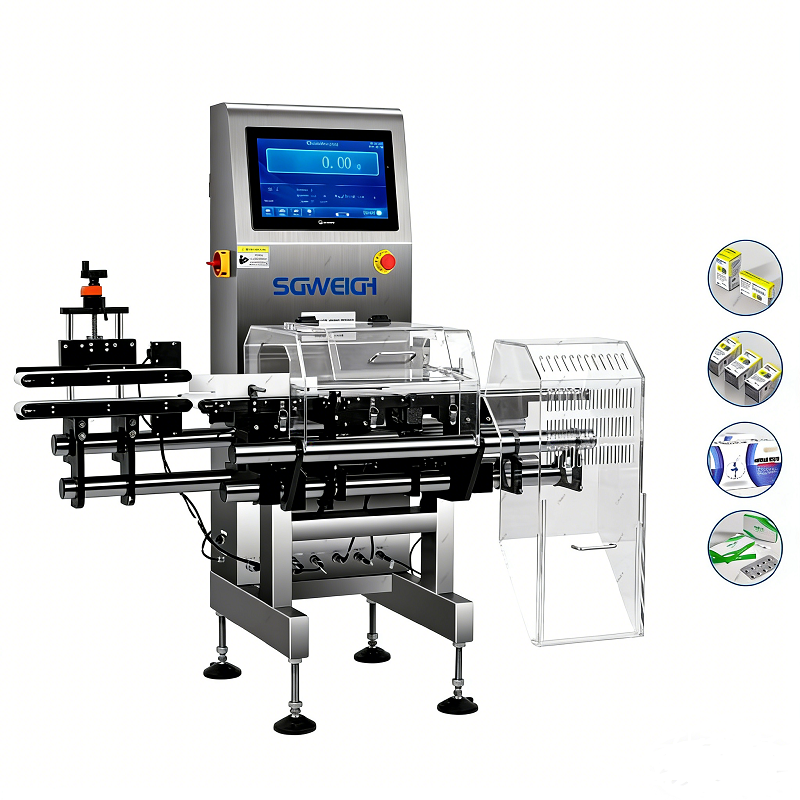

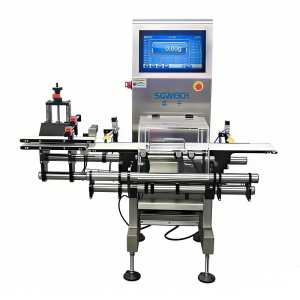

The High Speed Pharma Checkweigher is designed for continuous, in-line weight inspection of small cartons, boxes, packages, and other lightweight products. With a maximum throughput of up to 800 pcs/min, it provides fast and accurate weight verification without interrupting the production line.
The Box Checkweigher automatically weighs each product while it is moving on the conveyor, compares the measured weight with preset upper and lower limits, and identifies overweight or underweight products. An automatic reject system can remove non-conforming products and allow qualified products to continue to the next production stage.
Its compact conveyor design makes it suitable for high-speed packaging lines where small box checkweighing, weight control, product counting, and automatic rejection are required.
Product Parameter
| Type | SG-150HH |
| Weighing scope | 3-500g |
| Restriction of product | L:100 W:150 H:2-150(mm) |
| Accuracy | ±0.01g(Depends on products) |
| Division scale | 0.01g |
| Highest speed | 800pcs/min |
| Belt width | 150mm |
| Belt Speed | 0-110m/min |
| Power supply | AC220V±10%50HZ |
| Power | about 200W |
| Main material | SUS304/316 |
Product Characteristics
1.Up to 800 pcs/min high-speed weighing performance.
2.Designed for small boxes, cartons, and lightweight packages.
3.Continuous dynamic weighing without stopping the production line.
4.High-speed load cell weighing system for accurate weight measurement.
5.Automatic detection of overweight and underweight products.
6.Automatic reject system for non-conforming products.
7.Separate collection of accepted and rejected products.
8.Easy-to-use touchscreen control interface.
9.Adjustable weight tolerance and product parameters.
10.Real-time production statistics and weight data.
11.Compact and modular conveyor design.
12.Stainless steel construction suitable for demanding production environments.
13.Easy cleaning, maintenance, and product changeover.
14.Can be integrated with existing packaging and conveyor systems.
Specific Application
Widely used in food, pharmaceutical and consumable products industries for online weight check and quality control.
Used to in-motion weight check for all packed products.
Company Profile
Customer Visit
Exhibition
Packaging&Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
