■ Product Brief

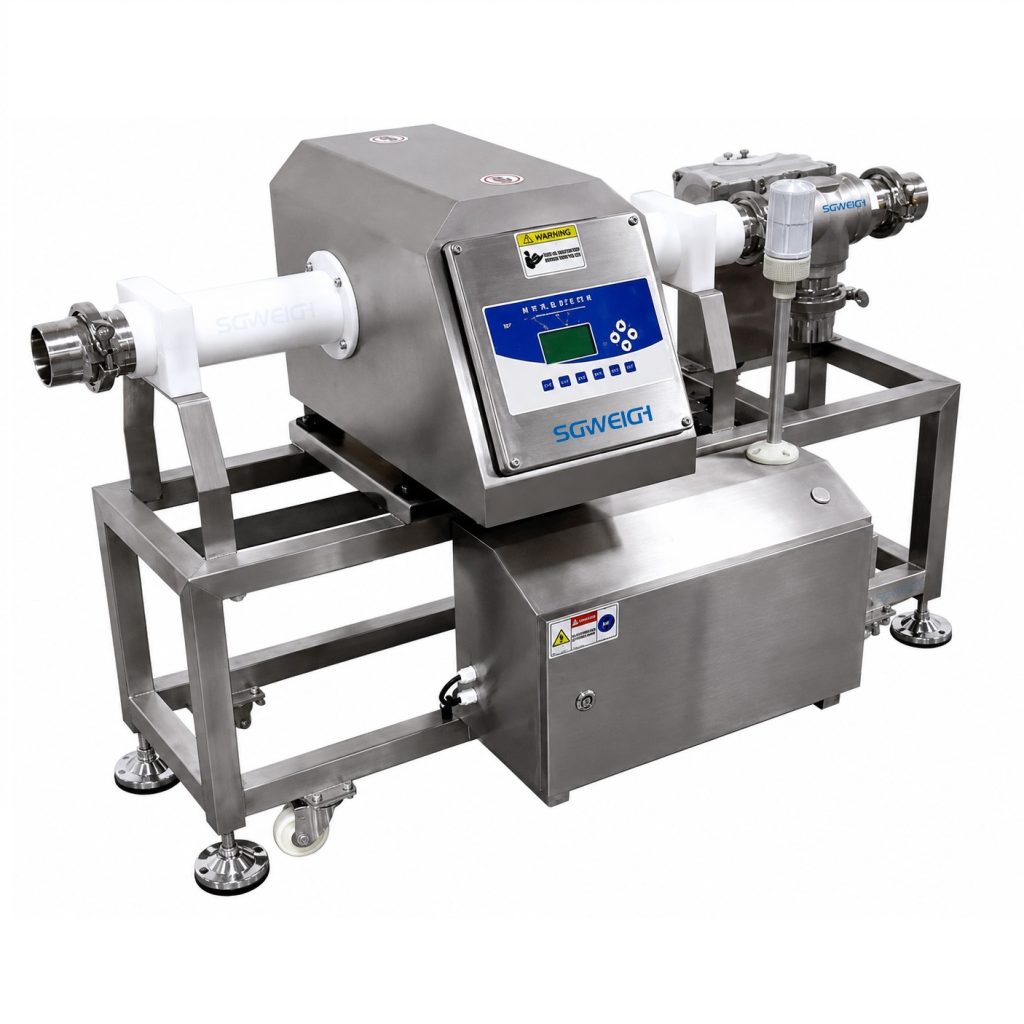

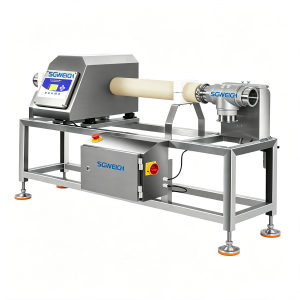

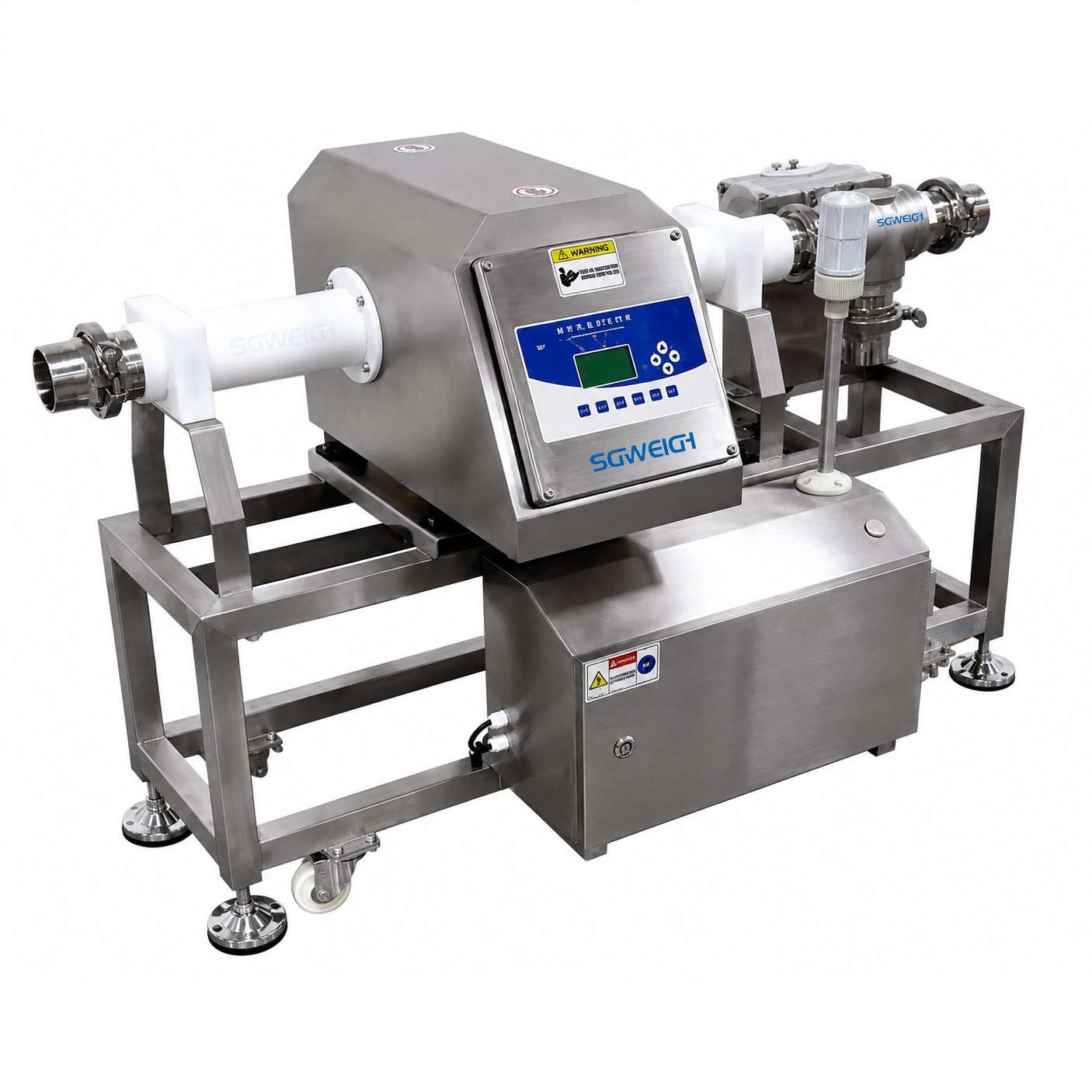

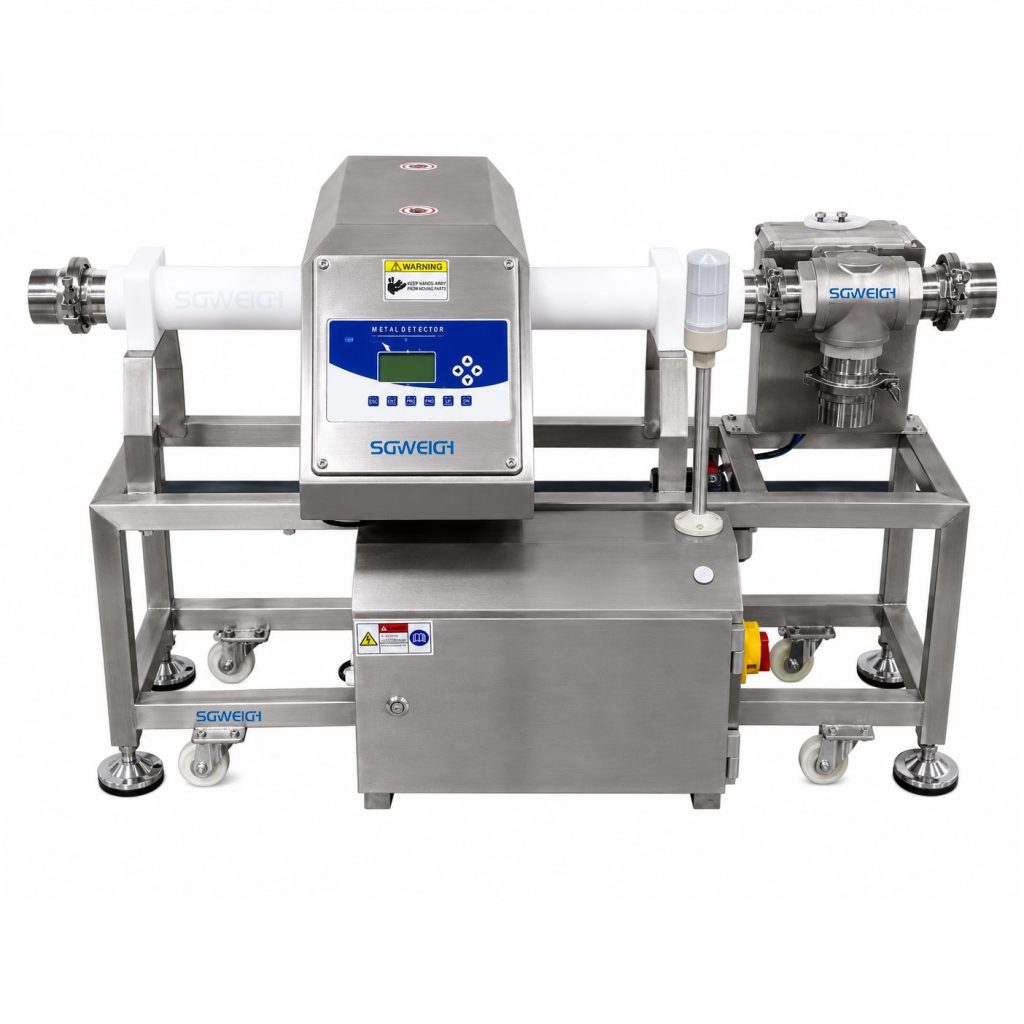

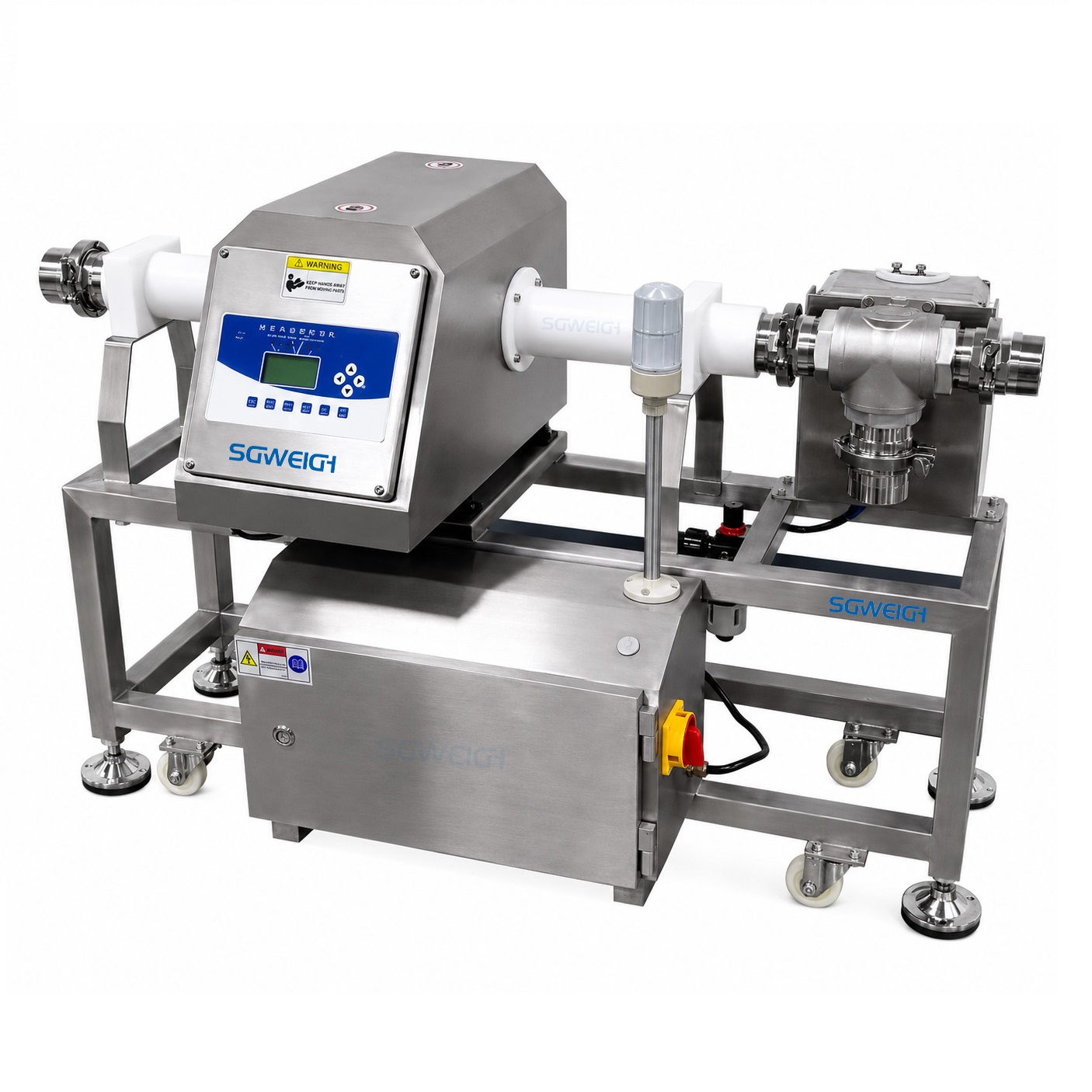

The Pipeline Metal Detector for Liquid Products is an inline inspection system designed for detecting metallic contaminants in pumped liquid, semi-liquid, viscous, and paste products. It is particularly suitable for fruit juice, vegetable juice, beverages, sauces, jams, dairy products, soups, purees, and other liquid food products transported through closed pipelines.

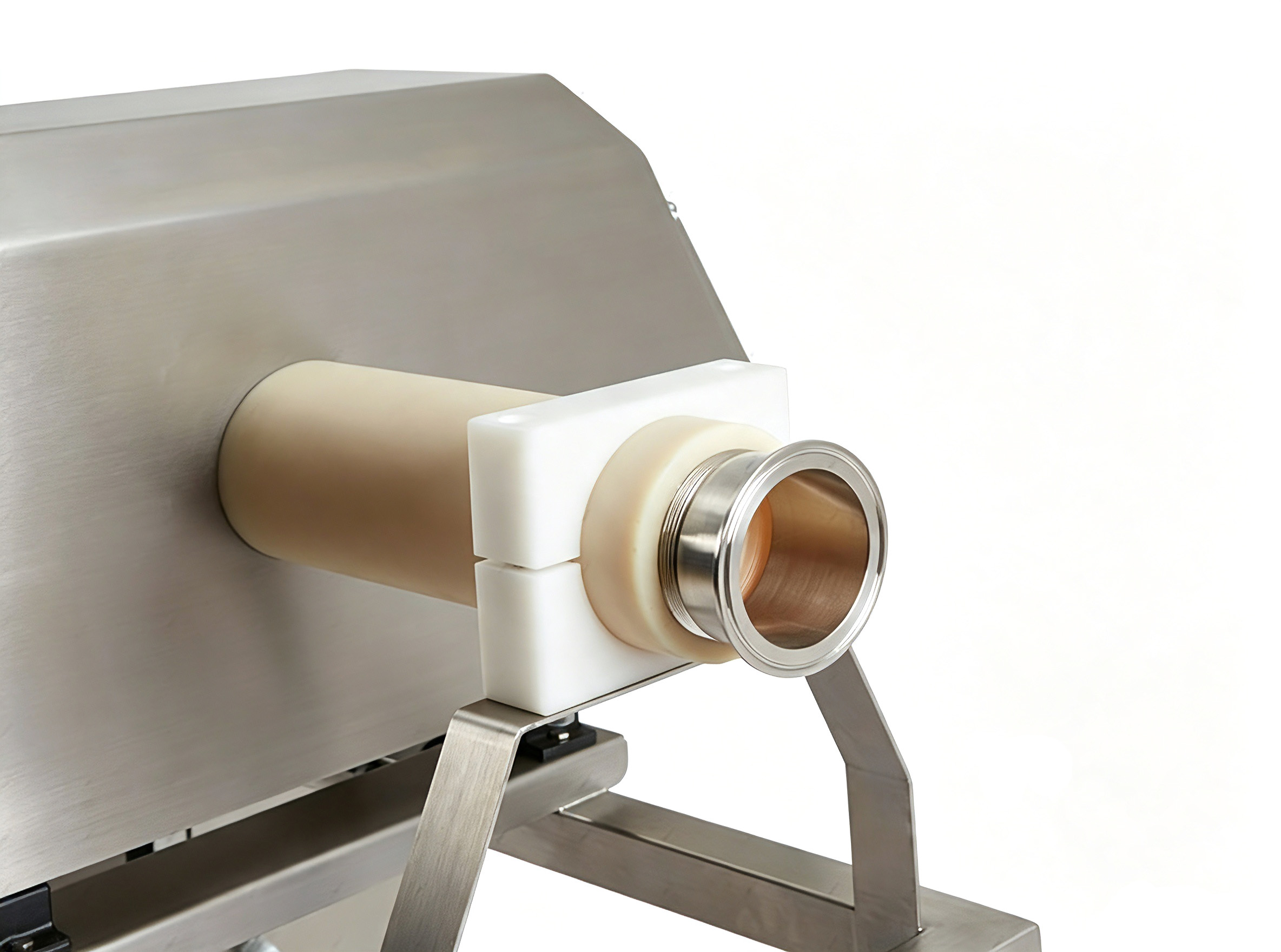

The Inline Metal Detector is installed directly into the product pipeline, allowing the liquid product to pass continuously through the detection area without interrupting production. It can detect potential ferrous, non-ferrous, and stainless steel contaminants, helping food manufacturers improve product quality, reduce contamination risks, and protect downstream processing and filling equipment. Pipeline metal detection is commonly used for pumped products where conveyor-style inspection is not practical.
■ Technical Data
| Type | SG-ML80 | SG-ML100 | SG-ML150 | SG-ML200 | |
| Pipe inner diameter | 80 | 100 | 150 | 200 | |
| Detection sensitivity | Fe（φ） | 0.6 | 0.8 | 1.0 | 1.0 |
| SUS304（φ） | 1.2 | 1.5 | 1.5 | 2.0 | |
| Pipe flow t/h | 2 | 4 | 8 | 15 | |
| Deadweight of Machine | 120kg | 140kg | 160kg | 180kg | |
| Product default quantity | 100 Type | ||||
| Detected product form | Sauces, fruit purees, chocolate syrups, dairy products, beverages, viscous fluids, etc. | ||||
| Air source requirement | ≥0.5MPa | ||||
| Alarm Way | When metal is detected, it will be alarmed and automatically rejected | ||||
| Pipe material | PP | ||||
■ Product Highlights
1.Inline metal detection for continuous liquid product inspection.
2.Suitable for fruit juice, vegetable juice, sauces, jams, dairy, soup, puree and other pumped products.
3.Detects ferrous, non-ferrous and stainless steel metal contaminants.
4.High-sensitivity digital metal detection technology.

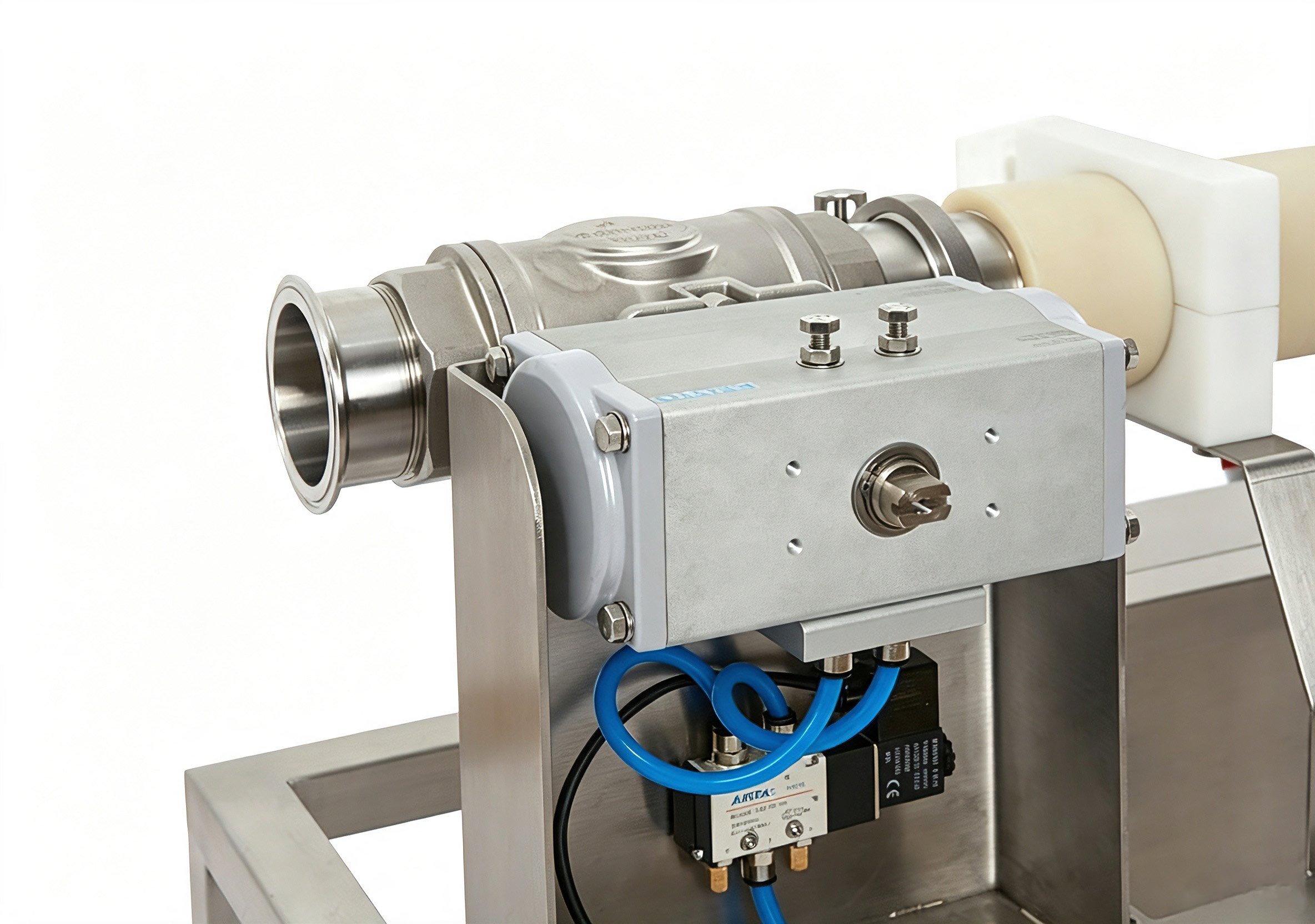

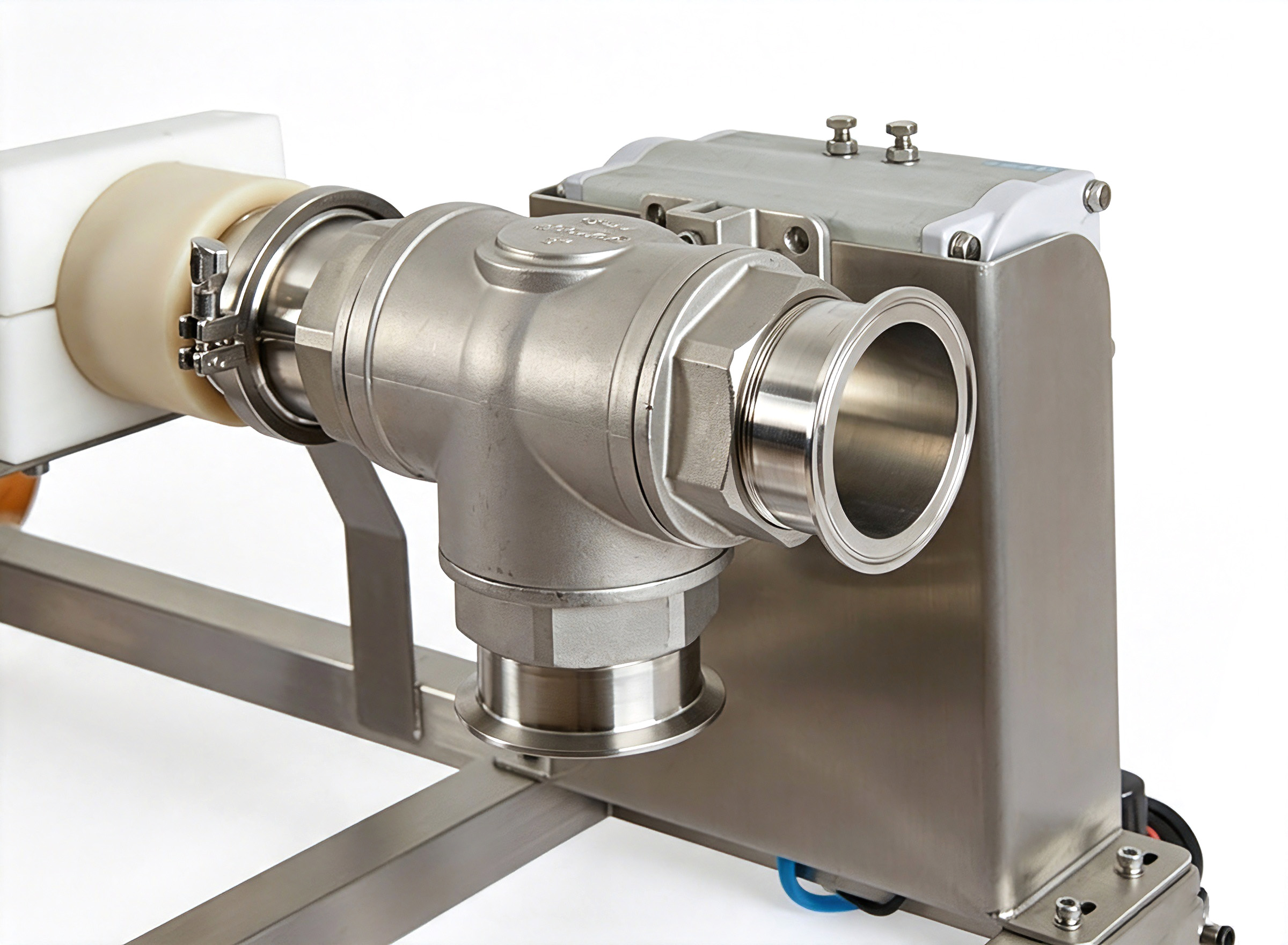

5.Automatic rejection of contaminated product.
6.Stainless steel hygienic construction for food-processing environments.
7.Compatible with sealed pipeline production systems.
8.Customized pipe diameter and connection options.
9.Suitable for different product flow rates, temperatures and viscosities.
10.Easy integration with existing filling and processing lines.
11.Touchscreen operation and product learning functions available.
12.Optional data monitoring and production-line communication functions.
13.Designed for convenient cleaning and maintenance.
■ Industry Applications
■ Company Profile
■ Cooperative Clients
■ Exhibition
■ Package & Logistics
Packaging
● All products are packed in standard export-grade packaging to ensure maximum protection during transportation.
● Each unit is wrapped with plastic film and foam, fixed firmly with inner support, and placed in a strong carton or plywood case.
● All corners and fragile parts are specially protected to prevent collision, scratch and damage.
Shipping
● We support sea freight, air freight and international express (DHL, FedEx, UPS, TNT) according to customer requirements.
● Goods will be carefully loaded and inspected before delivery.
● A complete tracking number will be provided once shipped, so you can monitor the whole logistics process.
● We cooperate with reliable forwarders to ensure safe, on-time and cost-effective delivery.
