Introduction
In pharmaceutical manufacturing, accurate bottle weight inspection is an important part of production quality control. Tablets, capsules, and other solid liquid pharmaceutical products must be filled into bottles according to predefined quantity and weight requirements. A Rotary Pharmaceutical Bottle Checkweigher provides automated in-line weighing to help manufacturers identify bottles that may be underfilled or overfilled during production.
Designed for pharmaceutical bottle filling and packaging lines, a rotary bottle checkweigher uses a rotating inspection mechanism to transport, position, and weigh bottles efficiently. By integrating dynamic weighing with automatic inspection and rejection functions, the system helps improve inspection consistency, reduce manual handling, and support reliable pharmaceutical packaging operations.
What Is a Rotary Pharmaceutical Bottle Checkweigher?

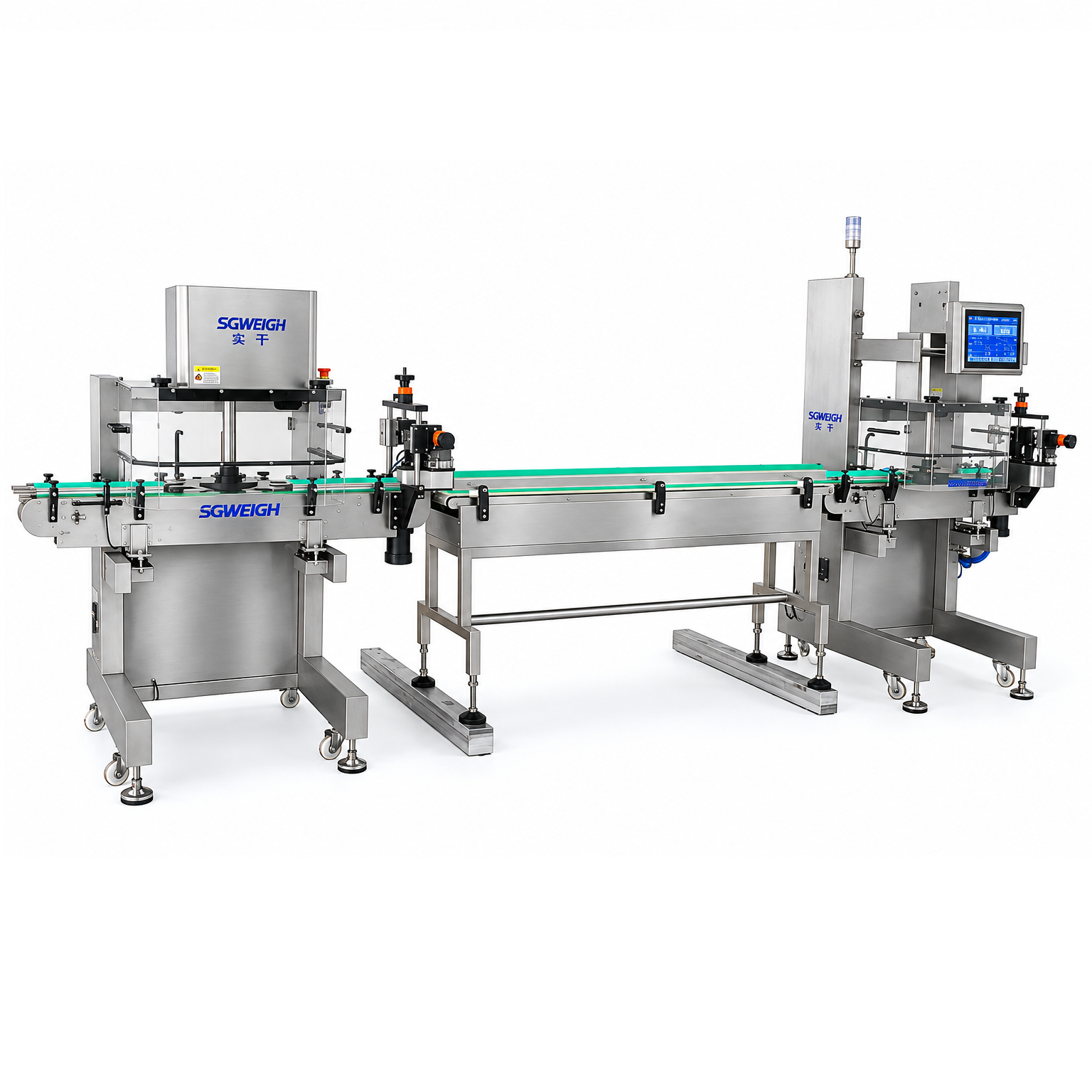

A rotary pharmaceutical bottle checkweigher is an automated weighing system designed to inspect the gross weight of individual bottles on a production line. Bottles are transferred through rotating stations, where each bottle is positioned for dynamic or controlled weighing.
The measured weight is compared with a preset target weight and allowable tolerance range. Bottles that meet the configured criteria continue to the next packaging stage, while bottles outside the specified limits can be automatically rejected or separated for further inspection.

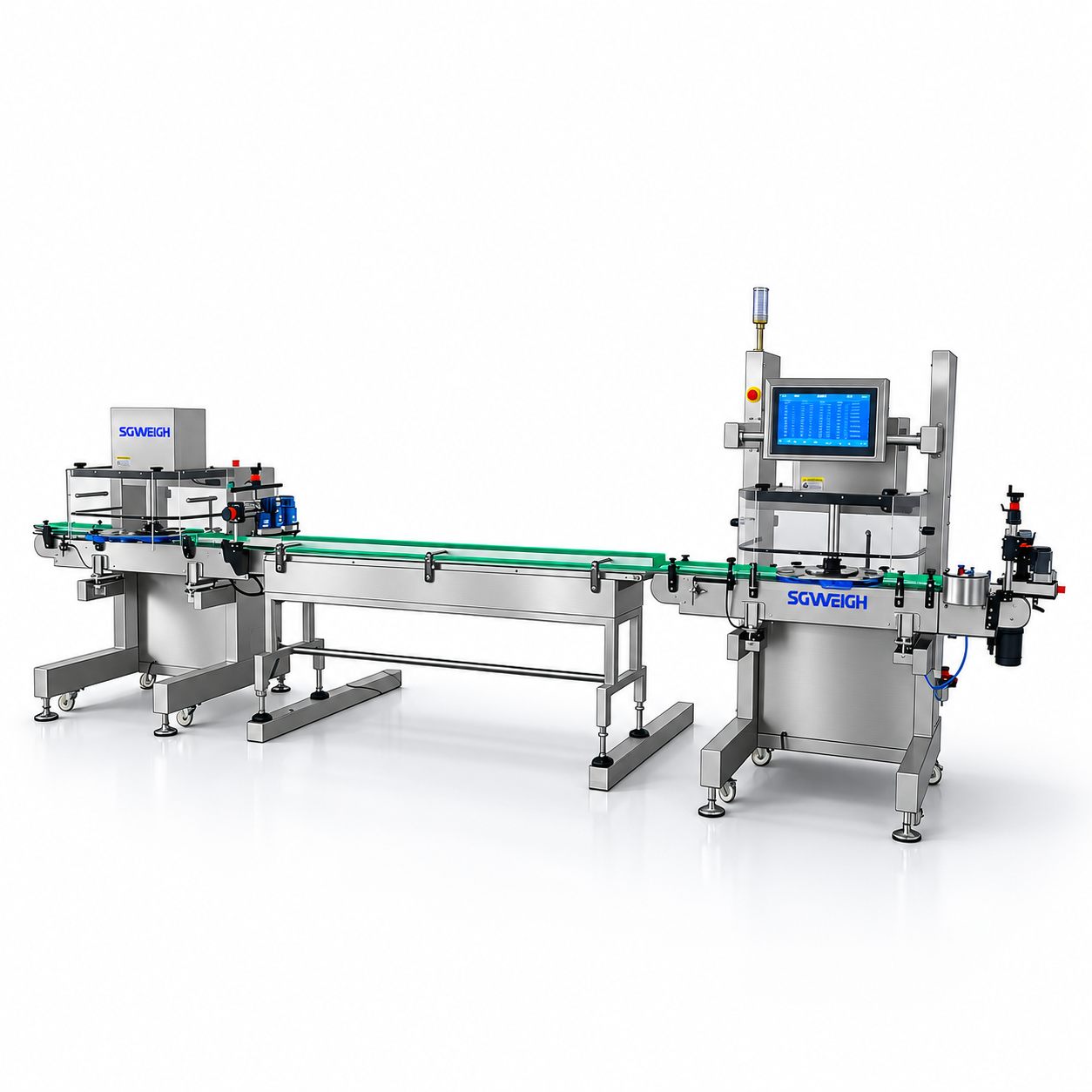

This type of equipment is suitable for pharmaceutical applications such as tablet bottles, hard capsule bottles, softgel bottles, and other compatible containers. The system configuration can be customized according to bottle dimensions, production speed, weighing range, required accuracy, and production line layout.
How Does a Rotary Bottle Checkweigher Work?
The inspection process generally includes the following stages:
1. Bottle Infeed and Positioning
Filled pharmaceutical bottles enter the checkweigher through an infeed conveyor or transfer mechanism. The rotary indexing or conveying system positions each bottle at the designated inspection station.
2. Individual Bottle Weighing
Each bottle is weighed using a precision weighing sensor and a weighing control system. Depending on the machine design, weighing can take place during controlled positioning or within a dynamic weighing process.
3. Target Weight Comparison
The control system compares the measured bottle weight with the preset target weight and tolerance limits. Weight results are evaluated according to the configured inspection parameters.
4. Automatic Rejection or Separation
Bottles identified as outside the configured weight limits can be diverted to a reject station for further inspection. Qualified bottles continue along the production line.
5. Data Display and Production Monitoring
The operator interface can display weighing results, inspection counts, and other configured production statistics. Optional data management functions can support quality monitoring and production recordkeeping, depending on the system configuration.
Key Features
1. Rotary Bottle Handling
The rotary mechanism supports organized bottle transfer and repeatable positioning. It can be designed to work with compatible bottle handling and filling equipment, helping maintain a continuous packaging workflow.
2. High-Speed Automated Weighing
Automated bottle feeding, weighing, and sorting reduce the need for manual inspection. Actual throughput depends on the number of weighing stations, bottle dimensions, line stability, and the required weighing accuracy.
3. Precision Weight Inspection
A precision weighing sensor and suitable signal-processing system measure individual bottle weight. The inspection threshold can be configured according to the product specification and validated process requirements.
4. Underweight and Overweight Detection
The system compares each measured result against predefined limits to identify potential filling inconsistencies. This helps manufacturers investigate missing tablets or capsules, incorrect fill quantities, and other weight-related deviations.
Important: Gross bottle weight inspection cannot always identify an individual missing tablet or capsule. Detection capability depends on the product weight, bottle and closure variation, weighing accuracy, and the difference between the expected and actual contents.
5. Automatic Reject Function
An optional rejection mechanism separates bottles that fail the configured weight criteria. This reduces manual sorting and helps prevent nonconforming products from moving directly to subsequent packaging stages.
6. Integration with Pharmaceutical Packaging Lines
The rotary checkweigher can be configured for integration with compatible tablet counters, capsule counters, bottle filling machines, capping machines, labeling machines, and downstream inspection equipment.
Integration depends on the production line interface, bottle transfer requirements, control signals, and available installation space.
Why Is Rotary Bottle Checkweighing Important in Pharmaceutical Production?
Pharmaceutical bottle filling requires consistent control of product quantity and packaging quality. Manual sampling alone may not identify every individual bottle with a weight deviation.
An in-line rotary pharmaceutical bottle checkweigher provides individual bottle weight inspection at the designated inspection point. Its key benefits include:
- Consistent weight verification: Applies predefined weight limits to individual bottles.
- Improved production efficiency: Automates weighing and bottle separation.
- Reduced manual inspection: Helps operators focus on exceptions and quality investigations.
- Better process monitoring: Provides weighing results and production statistics when supported by the configured software.
- Flexible line integration: Can be adapted to compatible bottle handling and packaging equipment.
- Support for quality control: Helps identify potential filling problems before products proceed further along the line.
The checkweigher is a process-control tool. It supports quality assurance but does not replace pharmaceutical product testing, fill-count verification, or other required quality-control procedures.
How to Choose the Right Rotary Pharmaceutical Bottle Checkweigher
When selecting a rotary bottle checkweigher, pharmaceutical manufacturers should evaluate the following factors:
- Bottle specifications: Bottle diameter, height, shape, material, and closure type.
- Product type: Tablets, capsules, softgels, or other bottle contents.
- Target weight and tolerance: The required inspection range and minimum detectable weight difference.
- Production speed: The required number of bottles per minute under actual operating conditions.
- Weighing performance: Sensor capability, weighing stability, bottle movement, and environmental influences.
- Reject mechanism: The required separation method and reject confirmation options.
- Line compatibility: Communication, conveyor height, transfer arrangement, and available installation space.
- Data and compliance requirements: Required records, audit trails, electronic signatures, and validation documentation, where applicable.
For pharmaceutical applications, the supplier should confirm achievable throughput and weighing performance using representative bottles and actual production conditions. This is particularly important when the system must detect small differences in tablet or capsule quantities.
Conclusion
A Rotary Checkweigher provides automated individual bottle weight inspection for pharmaceutical packaging lines. By combining controlled bottle handling, precision weighing, target-weight comparison, and optional automatic rejection, it helps manufacturers monitor filling consistency and improve packaging process control.
For pharmaceutical companies seeking an appropriate solution, the key is to match the rotary handling design, weighing performance, inspection tolerance, and throughput to the actual production requirements. A properly configured system can become a valuable component of an integrated pharmaceutical bottle inspection line.
Looking for a rotary pharmaceutical bottle checkweigher for your production line? Contact our team with your bottle specifications, target weight, required inspection accuracy, and production speed to discuss a suitable weighing solution.
