■ Product Brief

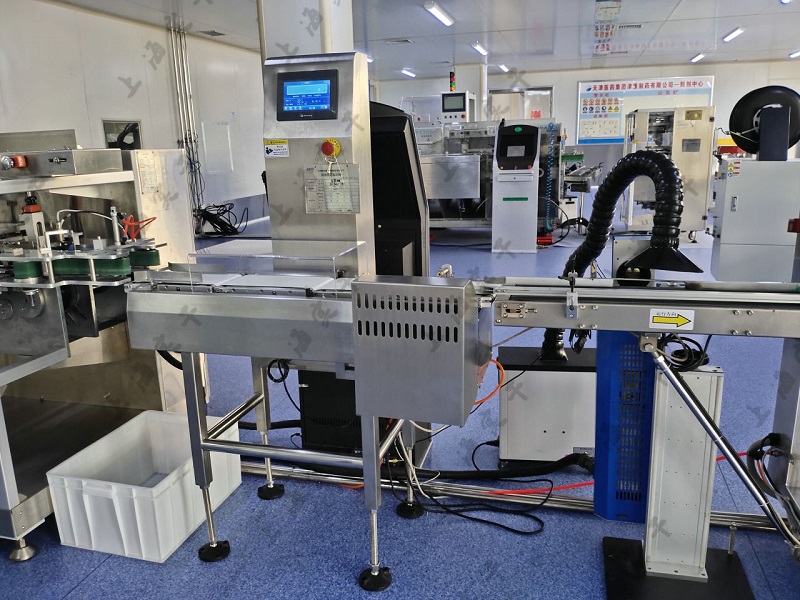

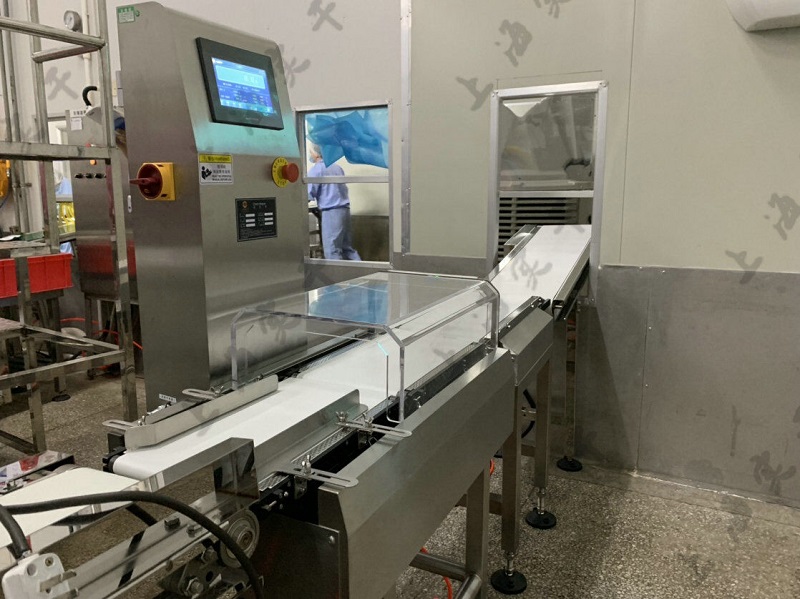

A Bottle Line Checkweigher is specially designed for high-speed weighing of lightweight, tall, narrow, or unstable bottles used in the pharmaceutical, food, beverage, cosmetic, and chemical industries. During dynamic weighing, bottles may tilt, shake, or shift due to conveyor speed or product shape, leading to weighing errors. By integrating an optional clamping conveyor system, the Weight Inspection Machine securely holds each bottle throughout the weighing process, ensuring maximum weighing stability and repeatability.
■ Technical Data
| Type | SG-150H |
| Weighing Range | 3-500g |
| Limited of product | L: 200 W:150 H: 3-200mm |
| Accuracy | ±0.1g Depends on product |
| Division Scale | 0.1g |
| Belt Speed | 0- 90m/min |
| Max Speed | 250 pcs/min |
| Belt Width | 150mm |
| Power Supply | AC 110/220V±10% 50HZ |
| Power | 100W |
| Main Material | SUS304 stainless steel |
■ Product Highlights
1.Optional side clamping device for stable bottle transportation.
2.Prevents bottle shaking, tipping, and vibration during weighing.
3.High-precision digital load cell with excellent repeatability.
4.Automatic rejection of underweight and overweight bottles.
5.Suitable for round, square, oval, and irregular bottle shapes.
6.Supports PET bottles, glass bottles, HDPE bottles, and cosmetic containers.
.Easy integration with bottle filling, capping, labeling, and packaging lines.
8.Stainless steel SUS304/SUS316 construction for hygienic production environments.
9.User-friendly touchscreen with recipe storage and production statistics.
10.Multi-level user permissions and data traceability for regulated industries.
■ Industry Applications
■ Company Profile
■ Cooperative Clients
■ Exhibition
■ Package & Logistics
Packaging
● All products are packed in standard export-grade packaging to ensure maximum protection during transportation.
● Each unit is wrapped with plastic film and foam, fixed firmly with inner support, and placed in a strong carton or plywood case.
● All corners and fragile parts are specially protected to prevent collision, scratch and damage.
Shipping
● We support sea freight, air freight and international express (DHL, FedEx, UPS, TNT) according to customer requirements.
● Goods will be carefully loaded and inspected before delivery.
● A complete tracking number will be provided once shipped, so you can monitor the whole logistics process.
● We cooperate with reliable forwarders to ensure safe, on-time and cost-effective delivery.
