|| Product Introduction

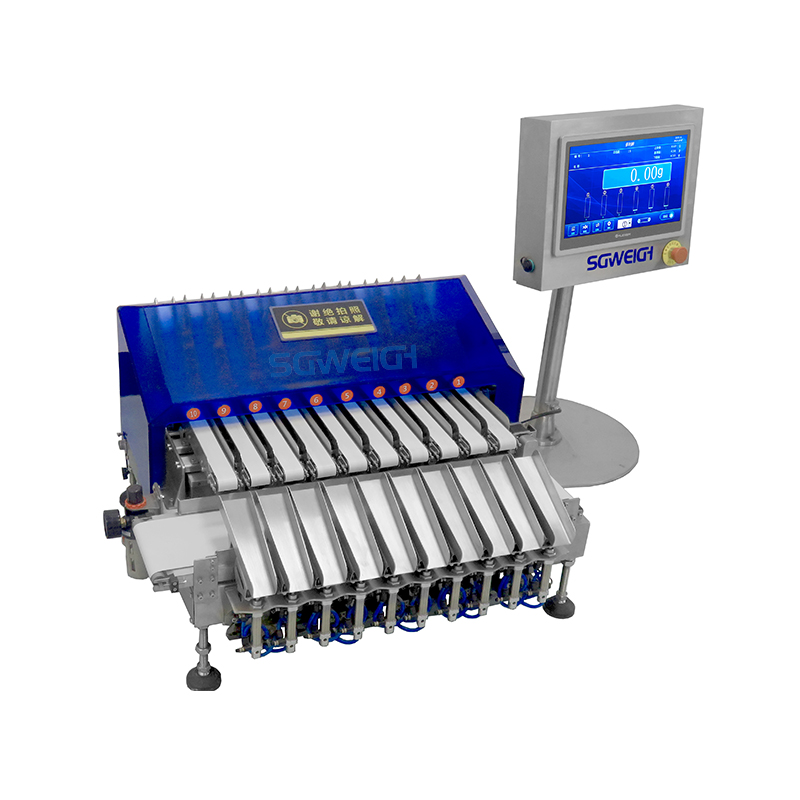

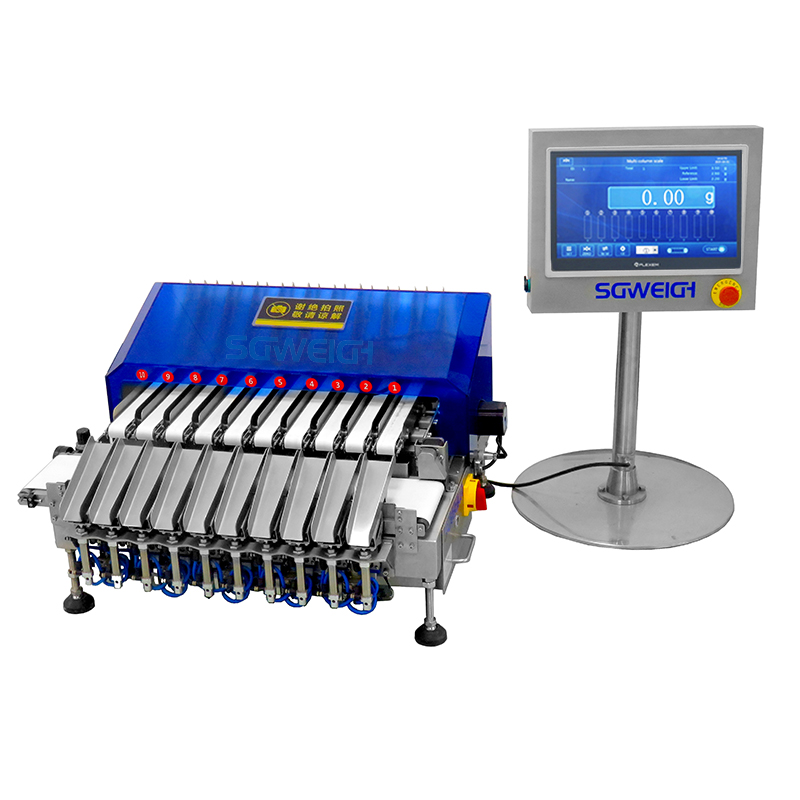

Multi line Inspection Checkweigher can achieve multi-channel weighing control with only one indicator.10 lanes Powder Sachet Stick Weight Checkers are suitable for almost any production line application that requires high-speed and accurate weighing of small packaged products.
|| Tech Specifications
Type:SG-10X
Weighing scope:2-300g
Restrictions of product:L:180 W:40 H:2-20(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt width:30mm
Highest speed:70pcs/min(one lane)
Weight of machine:about 200Kg
Powder supply：AC220V 50HZ
Power:about 300W
Main material:SUS304(Stainless Steel)
Multi-channel passing products to improve production efficiency
(the number of channels can be customized)
|| Main Features
1. Patented checkweigher with 2-12 slide rails.
2. Maximum checkweighing speed: 70 times/min.
3. Maximum accuracy: 0.01g.
4. Unqualified products can be removed separately for each lane.
5. Checkweighing data is fed back to the packaging machine to achieve real-time adjustment for each lane.
6. The number of consecutive unqualified products in each lane can be modified.
7. Statistical data export interface: USB.
8. Statistical data for each lane: real-time result display, trend chart display, bar chart display.
|| Application
|| Our Company
|| Our Customers
|| Our Exhibitions
|| Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
TAGS:Weighing Machine,10 line Checkweigher,Multi line Checkweigher
