Product Summarize

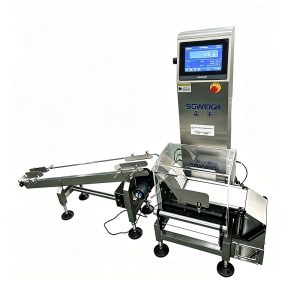

Stainless Steel Dynamic Automatic Checkweigher Machine with Pusher Reject weigh products based on dynamic weight reading. Based on the set target weight value, it automatically detects whether the weight of the product is qualified, whether the number of products in the packaging box is missing, whether the instructions or accessories are missing or overpacked, etc.Welcome to consult for quotation information !
Product Parameter
Type:SG-450
Weighing:Range 0.05-20/30kg
Limited of product:L: 550 W:450 H: 3-400mm
Accuracy:±5/10g Depend on products
Division Scale:0.1g
Belt Speed:0-60 m/min
Max Speed:40 pcs/min
Belt Width:450mm
Machine Weight:40+70+45kg
Power Supply:AC 110/220V ±10% 50HZ
Power:400W
Main Material:SU304 stainless steel
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
Product Characteristics
1.Product Placement: Products are placed on the conveyor belt of the checkweigher.
2.Weighing: As the products move along the conveyor belt, they pass under a weighing sensor or load cell that measures their weight.
3.Comparison: The measured weight is compared to a target weight or weight range specified for the product.
4.Sorting: Based on the comparison, the checkweigher categorizes the product as:
Accept: If the product’s weight is within the acceptable range.
Reject: If the product’s weight is outside the acceptable range.
5.Rejection: Products identified as rejects are typically removed from the production line using a rejection system, such as an air jet, pusher, or drop mechanism.
6.Data Collection: Checkweighers often include data collection and reporting capabilities to track production statistics.
Specific Application
Company Profile
Customer Visit
Exhibition
Packaging&Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
