|| Product Introduction

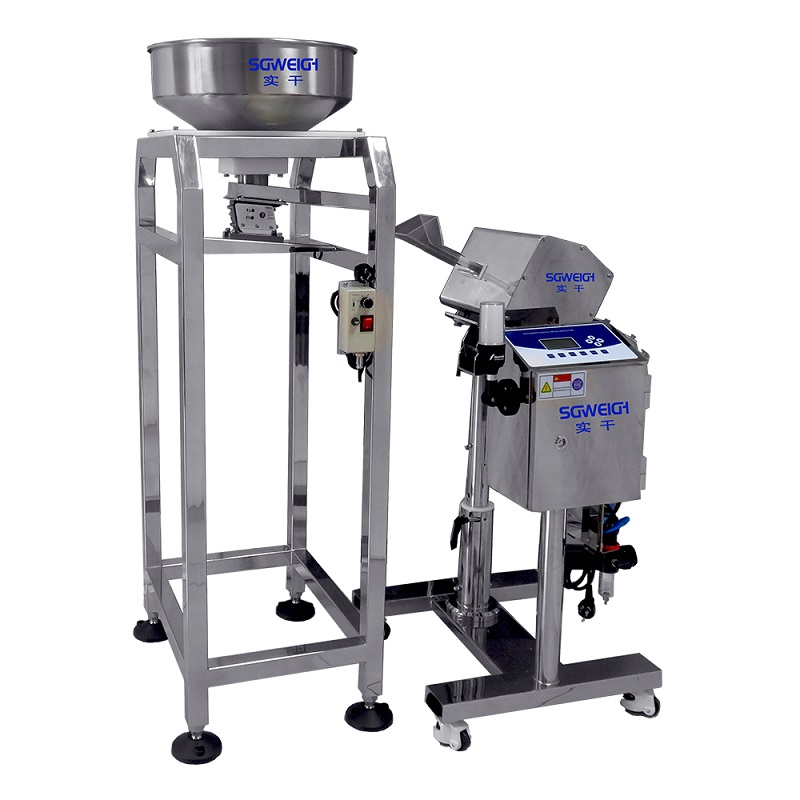

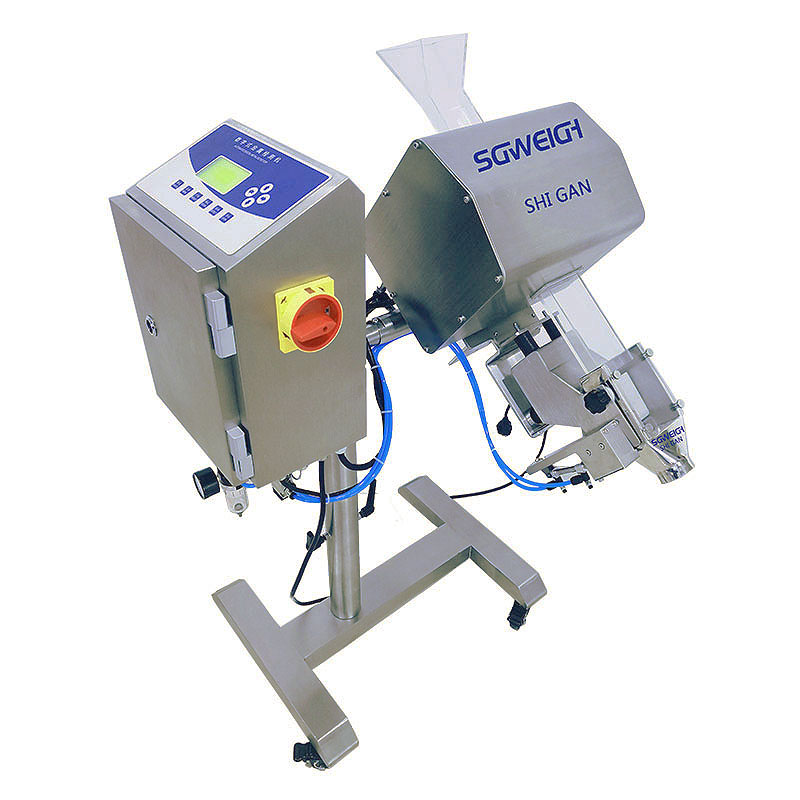

The Pharmaceutical Metal Detection Systems is designed for the detection and removal of minute pieces of ferrous, nonferrous and stainless steel contaminations in tablet.Ultra-High Sensitivity Tablet Metal Detector removes metallic contaminants automatically and without production interruption from a stream of tablets or capsules. Flexible operating height, angle and frame with lockable castor to allow for easy integration to any production facility.
|| Tech Specifications
Type:SG-M50
Feed port height and size: Height: 770-930mm Feed port size: 76mm
Height and size of outlet: Height: 770-860mm Size of outlet: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Sensitivity(adjustable or not):Yes
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Equipment dimensions: 1115*550 (1280-1400) mm
Note: The above sensitivity is when the test block freely falls through the detection pipeline. The actual detection sensitivity may vary due to different product characteristics or working environments,it should be based on the actual detection sensitivity.
|| Main Features
Very high sensitivity to magnetic & Non-magnetic Metals
Automatic Balancing
Ergonomic design for easy operation
Alphanumeric display
100 Product Memories
3 different levels of passwords
Digital Feather touch control
Audio-visual alarm on detection
100% detection & rejection
Integrated system
Low Power consumption
Digital Touch Control System
Height-adjustable, with 4 castors
|| Application
Tablets
Gel caps
Granular
Syrups
Capsules
Powders
|| Our Customers
|| Our Exhibitions
|| Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
