■ Product Overview

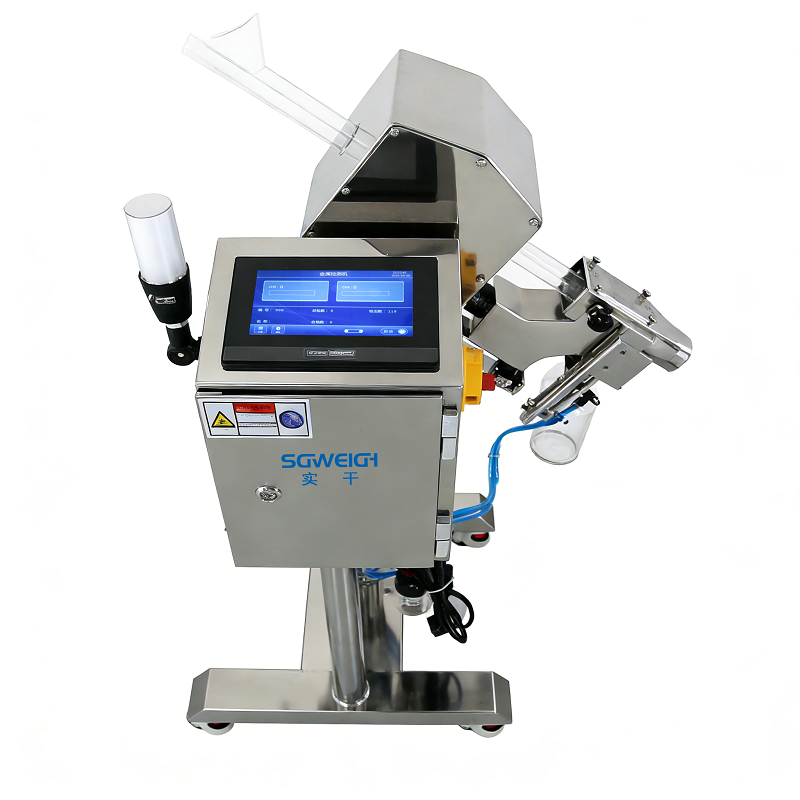

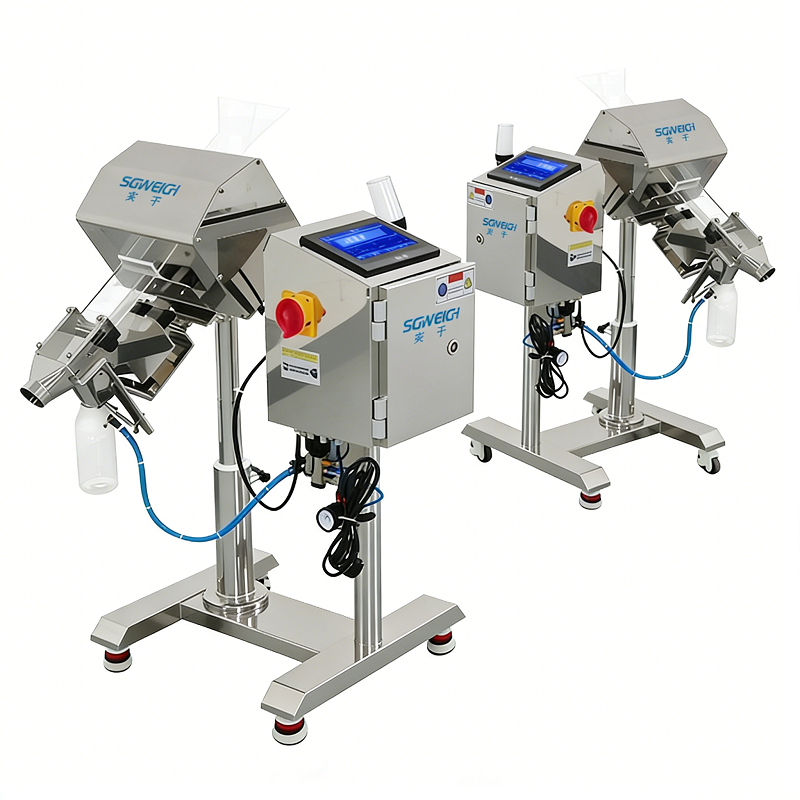

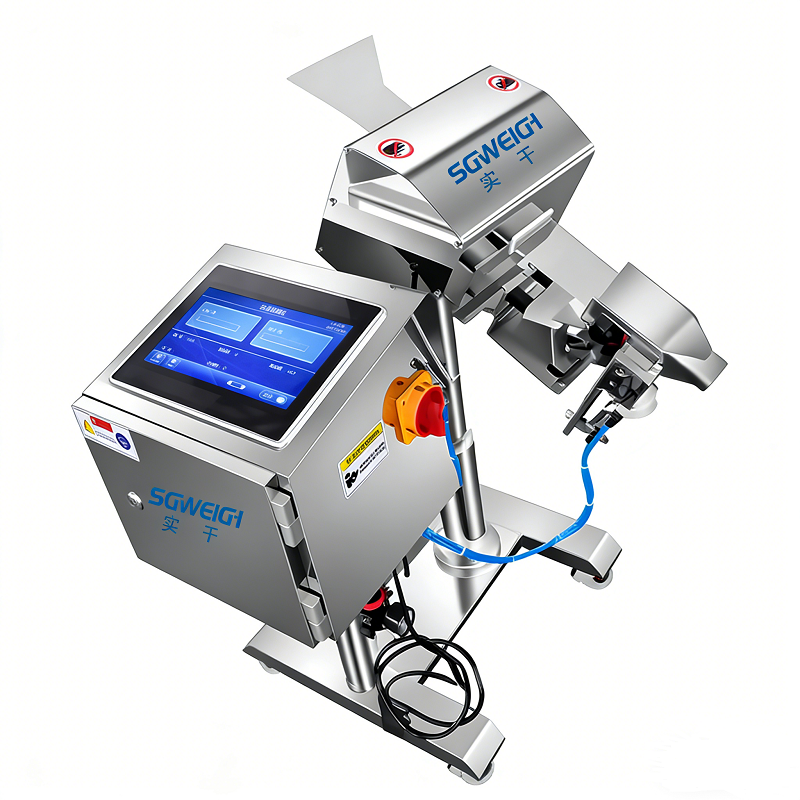

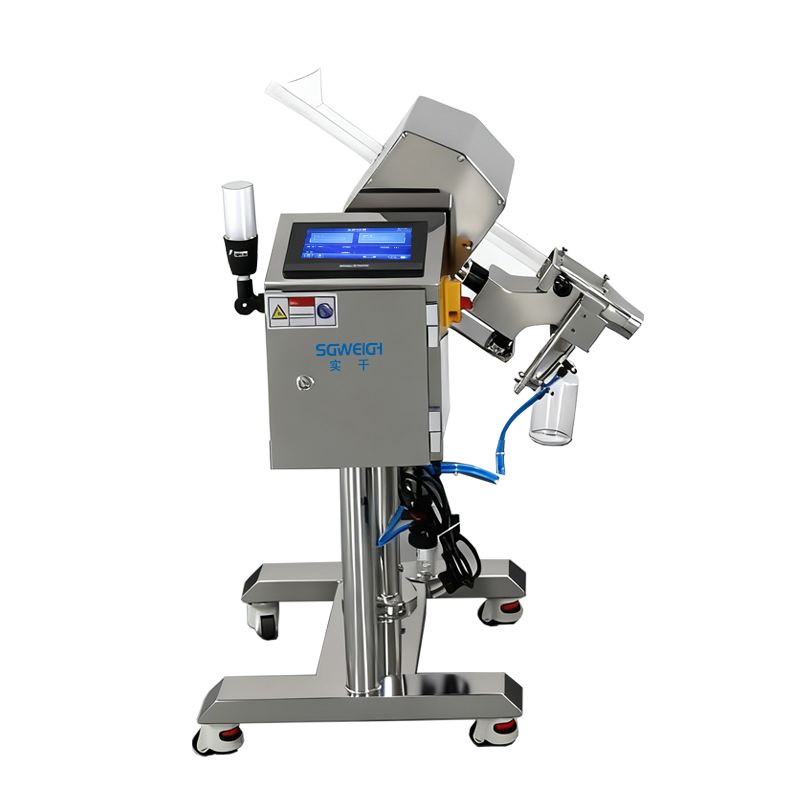

A Tablet Metal Detector (also called Tablet Metal Detection System) is a high-sensitivity, sanitary inspection machine designed exclusively for pharmaceutical, nutraceutical, and biotech industries to detect and reject microscopic metal contaminants (ferrous, non-ferrous, stainless steel) in loose tablets, capsules, caplets, and softgels during production.Pharma Grade Metal Detector is typically installed after tablet presses, de-dusters, polishers, or capsule fillers to ensure final product purity and regulatory compliance.
■ Tech Specifications
| Type | SG-M50 |
| Inlet height | 770-930mm Port size: 76mm |
| Outlet Height | 770-860mm Port size: 51mm |
| Effective passing size | W70*H20mm |
| Maximum production capacity | 500,000 pcs/hour |
| Sensitivity(adjustable or not) | Yes |
| Detection sensitivity | Fe: 0.3mm, SUS: 0.5mm,Non-Fe:0.5mm |
| Operation Mode | Touch Screen/LED fast key input |
| Removal method | flip culling |
| Working voltage | 220V/110V, 50/60HZ |
| Note: The above sensitivity is when the test block freely falls through the detection pipeline.
The actual detection sensitivity may vary due to different product characteristics or working environments,it should be based on the actual detection sensitivity. |
|
■ Main Features
● Ultra-High Sensitivity: Detects Fe ≥0.3mm, Non-Ferrous ≥0.5mm, 316L SS ≥0.5mm (standard for pharma).
● Gravity-Fall / Chute Design: Optimized for free-falling tablets; low-friction, anti-breakage channels.
● Sanitary & GMP Construction: 316L stainless steel contact parts, electro-polished, IP65, tool-less disassembly for CIP/SIP cleaning.
● Auto-Learn & Self-Calibration: Automatic product setup, real-time signal compensation.
● Compliance: FDA 21 CFR Part 11, GMP, CE; audit-ready data logging & audit trails.
● High Throughput: Up to 500,000 tablets/hour).
● Smart Rejection: Precision air-jet diverter with zero false rejects, no cross-contamination.
● Self-Diagnostics: AuditCheck / auto-test functionality to verify sensitivity continuously.
■ Application
Oral solid dosage (tablets, capsules, caplets, softgels)
Nutraceuticals (vitamins, minerals, herbals)
Pharmaceutical powders & granules (API)
Cleanroom production lines
■ Company
■ Customers
■ Exhibitions
■ Packaging & Delivery
1.Customized industrial-grade packaging with shockproof, moisture-proof and anti-pressure protection, ensuring safe delivery of equipment worldwide.
2.Professional packaging and logistics solutions for industrial equipment, with full tracking to guarantee product integrity during long-distance transportation.
3.Strict packaging standards and reliable global logistics network, meeting international delivery requirements for industrial projects.
■ FAQ
Q1. What types of metal contaminants can be detected?
A: Our systems provide full-spectrum metal detection for all common foreign metal bodies:
Ferrous metals (iron, carbon steel)
Non-ferrous metals (copper, aluminum, brass, lead)
Stainless steel (304, 316L, etc.)
Q2. What sensitivity levels are achievable?
A: Our tablet metal detectors deliver industry-leading sensitivity for pharmaceutical applications:
Fe: ≥ 0.3 mm
Non-Ferrous: ≥ 0.5 mm
316L Stainless Steel: ≥ 0.5 mm
Q3. How does the system handle product effect?
A: Equipped with dual‑frequency / multi‑frequency DSP technology and adaptive signal processing algorithms, the system automatically compensates for inherent product effect (moisture, conductive ingredients, coating, or temperature variations). This ensures stable sensitivity and minimal false rejects even with challenging formulations.
Q4. What throughput speeds are supported?
A: Designed for modern high‑speed production lines:
●Up to 500,000 tablets per hour
●Continuous operation with consistent sensitivity
●Compatible with tablet presses, polishers, de‑dusters, and packaging lines
Q5. Can the system integrate with factory automation systems?
A: Yes. The detector supports industry‑standard communication protocols:
●Ethernet/IP, Profinet, Modbus TCP/IP
●Integration with SCADA, MES, and line control systems
●Remote monitoring, diagnostics, and data export
●Real‑time production and rejection reporting
