■ Product Overview
The Capsule/Tablet Metal Detector is a high-sensitivity metal foreign object detection device specifically designed for solid dosage forms (such as capsules, tablets, soft capsules, pills, etc.) in the pharmaceutical industry. Its main function is to detect metal contaminants such as iron, non-ferrous metals, and stainless steel that may be introduced into the drug during the production process. Solid-Dosage Metal Detection System is typically installed at the rear end of tableting machines and capsule filling machines, using a free-fall structure to complete online detection, ensuring accurate and stable detection performance even under high production rates.
Capsule Tablet Metal Detector
■ Tech Specifications
Type:SG-M500
Inlet height: 770-930mm Port size: 76mm
Outlet Height: 770-860mm Port size: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Sensitivity(adjustable or not):Yes

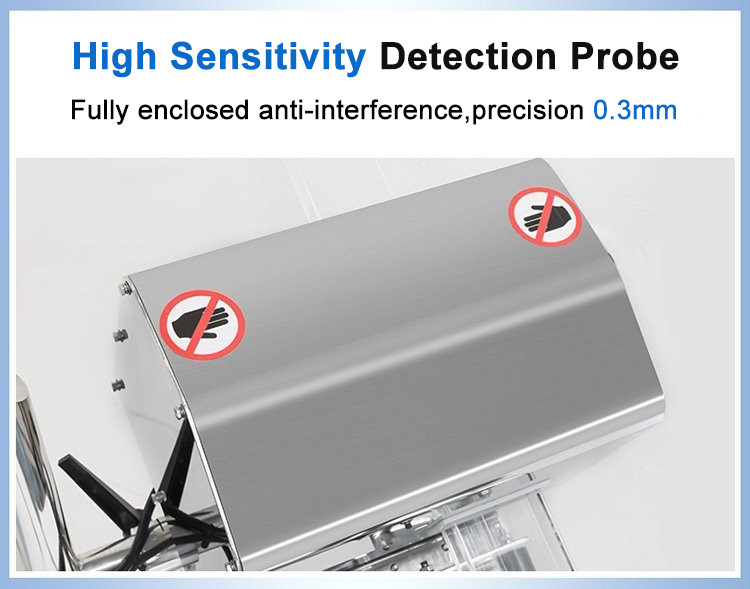

Detection sensitivity: Fe: 0.3mm, SUS: 0.5mm,Non-Fe:0.5mm

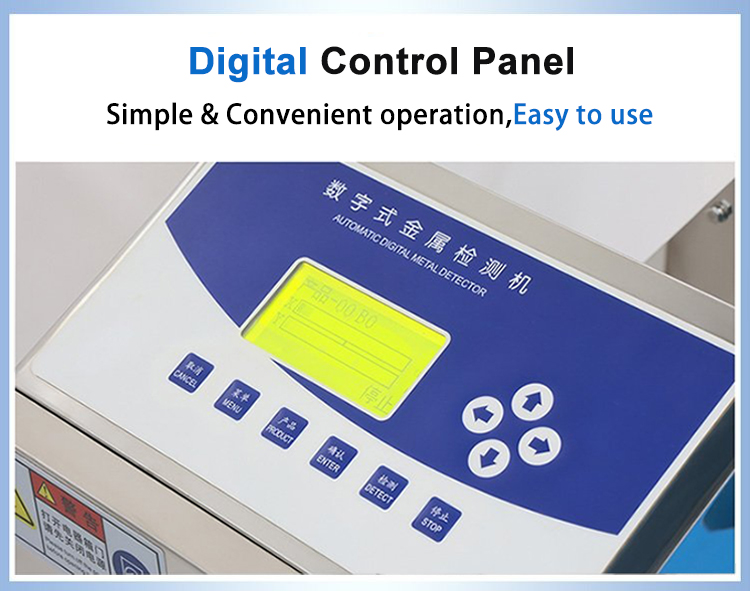

Operation Mode:Touch Screen/LED fast key input
Machine weight: 60kg

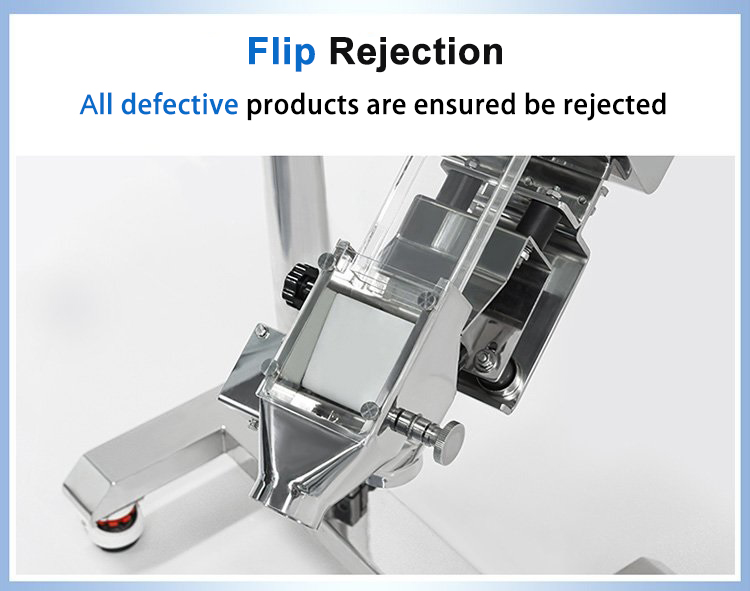

Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Equipment dimensions: 1115*550 (1280-1400) mm
■ Main Features
1.One-button intelligent operation, simple and convenient operation;
2.High-end products, with high precision, high sensitivity,Used to separate magnetic and non-magnetic metals from free-falling bulk materials.
3.It can handle various types of medicines. In order to save space, a more compact rack design is adopted.
4.For health and safety, the metal detector is made of food-grade SUS304 stainless steel;
5.Can automatically recognize product characteristics and effectively eliminate product effects;
6.The height of the probe is adjustable, and it can be customized for higher height.
7.Able to detect ferrous, non-ferrous or stainless steel even in tiny quantities.
8.Fully FDA compliant, with in-built security and data control.
■ Application
■ Customers
■ Exhibitions
■ Packaging & Delivery
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
