◆ Product Overview

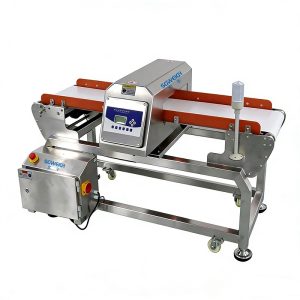

A Pet Food Metal Detector is an industrial inspection system designed to detect and reject ferrous, non-ferrous, and stainless steel contaminants during pet food production.Conveyor Food Safety Metal Detector is widely used in dry kibble, wet pet food, pet treats, freeze-dried products, canned pet food, and pouch packaging lines to ensure food safety, brand protection.
Pet food manufacturers increasingly use multi-stage inspection systems to reduce contamination risks throughout the production process — from raw ingredients to final packaging.
◆ Technical Parameters
| Type | SG-M500 |
| Machine Grade | Food Grade |
| Detect method | Electromagnetic wave detection |
| Detecting width | 150-1000mm customized according to requirements |
| Detecting height | 80-500mm (or custom-made) |
| Detecting sensitivity | Fe 0.5mm, Non-Fe0.5mm, SUS 0.8mm |
| Detecting adjustment | Intelligent adjustable |
| Belt Speed | 25m /min (or specified) |
| Alarm mode | metal detection, alarm belt stop or automatic removal |
| Power | AC220V,50/60Hz (Or Customized) |
◆ Key Advantages
1.High Detection Sensitivity
Detects:
Ferrous metals (Fe)
Non-ferrous metals (Copper, Aluminum)
Stainless steel contaminants (SUS304/SUS316)
2.Intelligent Product Effect Compensation
Automatically reduces false alarms caused by:
Moisture
Salt content
Wet or conductive pet food products
3.Automatic Reject System
Optional reject methods:
Air blast reject
Push arm reject
Drop flap reject
Retracting conveyor reject
4.Multi-Frequency Detection Technology
Improves stability for:
Dry kibble
Wet pet food
Frozen pet food
Aluminum foil packaging
5.Hygienic Stainless Steel Structure
SUS304/SUS316 construction
Easy cleaning design
Washdown protection (IP65/IP67)
6.Digital Touch Screen Control
Multi-language interface
Product memory storage
Data logging and traceability
7.High-Speed Conveyor Integration
Suitable for automated pet food production lines.
◆ Application Scope
◆ About Us
◆ Client Cases
◆ Exhibition Events
◆ Packaging & Shipping

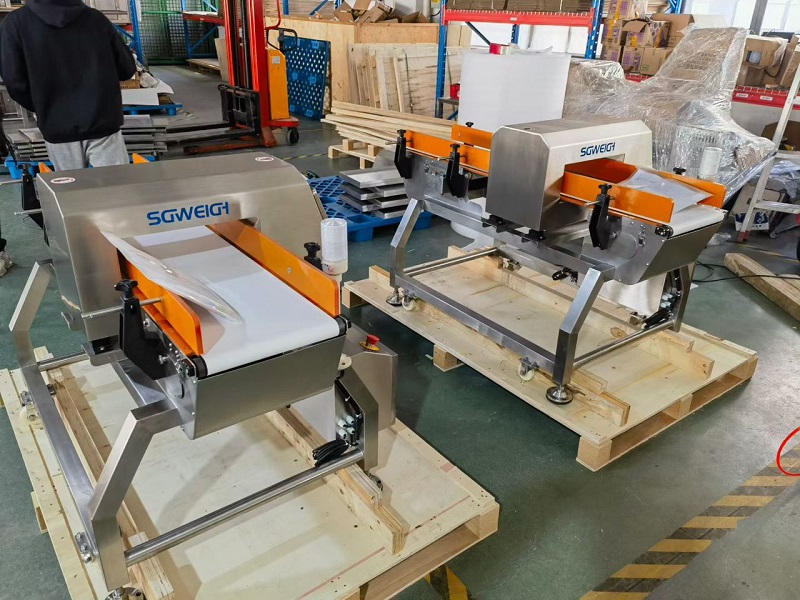

● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
