|| Product Introduction

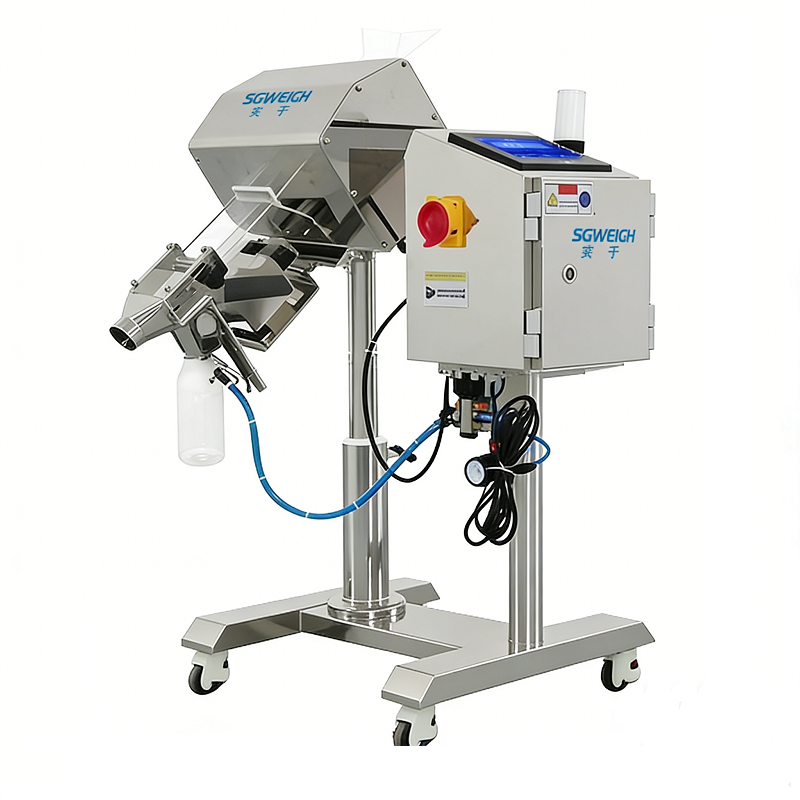

The Tablet Metal Detector is a high-precision online detection device specifically designed for the pharmaceutical industry.Pharma Metal Detector is used to identify and remove tiny metallic foreign objects such as iron, non-ferrous metals, and stainless steel from tablets and hard/soft capsules, ensuring drug safety and compliance with GMP, HACCP, 21 CFR Part 11 and other requirements.
|| Tech Specifications
| Type | SG-M50 |
| Inlet height | 770-930mm Port size: 76mm |
| Outlet Height | 770-860mm Port size: 51mm |
| Effective passing size | W70*H20mm |
| Maximum production capacity | 500,000 pcs/hour |
| Sensitivity(adjustable or not) | Yes |
| Detection sensitivity | Fe: 0.3mm, SUS: 0.5mm,Non-Fe:0.5mm |
| Operation Mode | Touch Screen/LED fast key input |
| Removal method | flip culling |
| Working voltage | 220V/110V, 50/60HZ |
|| Main Features
1. Ultra-High Sensitivity Detection
● Fe: ≥Φ0.3mm; SUS: ≥Φ0.4mm; Non-fe: ≥Φ0.5mm.
● Multi-frequency synchronization technology + product effect suppression reduces false alarms for wet/sugar/high-salt drugs.
2. Intelligent Auto-Learn
● One-click self-calibration, automatically adapting to new dosage forms/specifications, requiring no complex parameter settings.
3. Fully Automated Rejection and Validation
● High-speed pneumatic rejection, compatible with high-speed production lines.
4. Hygienic Design (GMP/FDA Compliance)
● Entire machine made of 304/316 stainless steel, IP65 waterproof and dustproof, parts directly in contact with drugs can be quickly disassembled for tool-free cleaning.
● Anti-static design prevents electrostatic adsorption and dust explosion risks.
5. Data Traceability and Compliance
● Complies with 21 CFR Part 11, supports electronic signatures, audit trails, and data immutability.
● Real-time data logging, report export, and remote monitoring meet FDA/GMP audit requirements.
6. Stable and Interference-Free
● Digital filtering + vibration suppression algorithm effectively isolates electromagnetic interference from motors/conveyor belts, with a false alarm rate of <0.01%.
|| Application
Tablets with a diameter ≤35mm,hard capsules (sizes 000–5),pills.
|| Our Company
|| Our Customers
|| Our Exhibitions
|| Packaging & Delivery
Packaging
● All products are packed in standard export-grade packaging to ensure maximum protection during transportation.
● Each unit is wrapped with plastic film and foam, fixed firmly with inner support, and placed in a strong carton or plywood case.
● All corners and fragile parts are specially protected to prevent collision, scratch and damage.
Shipping
● We support sea freight, air freight and international express (DHL, FedEx, UPS, TNT) according to customer requirements.
● Goods will be carefully loaded and inspected before delivery.
● A complete tracking number will be provided once shipped, so you can monitor the whole logistics process.
● We cooperate with reliable forwarders to ensure safe, on-time and cost-effective delivery.
