■ Product Introduction
The Ultra-Accurate 0.5mg HMI Capsule Checkweigher can check the filling weight of each capsule produced by the capsule filling machine and automatically reject unqualified capsules. This process helps to ensure the correct weight of each capsule and prevent defective products from entering the market.
Capsule Checkweigher for Pharma Production Lines
CPHI China
■ Tech Specifications
Weighing range : 2 to 2000 mg
Display scale：0.1mg
Highest sorting accuracy:±0.5mg
Max throughput (10 lanes)100000 capsules/h
Classification: Over Weight / Proper Weight / Under Weight
Product size : Capsule No. 000 to 5.
Power supply:AC-220V±10%, 50HZ
Weight of Machine :350kg
■ Main Features
1. Combining high speed and precision to improve production efficiency.
2. Available in a variety of capacities to meet your exact needs.
3. Simple operation with full touchscreen control and status monitoring.
4. Measurable weight range of 2-2000mg, providing complete flexibility.
5. Displays relevant data for each channel.
6. Three levels of operation management,with customizable passwords.
■ Application
■ Company
■ Customers

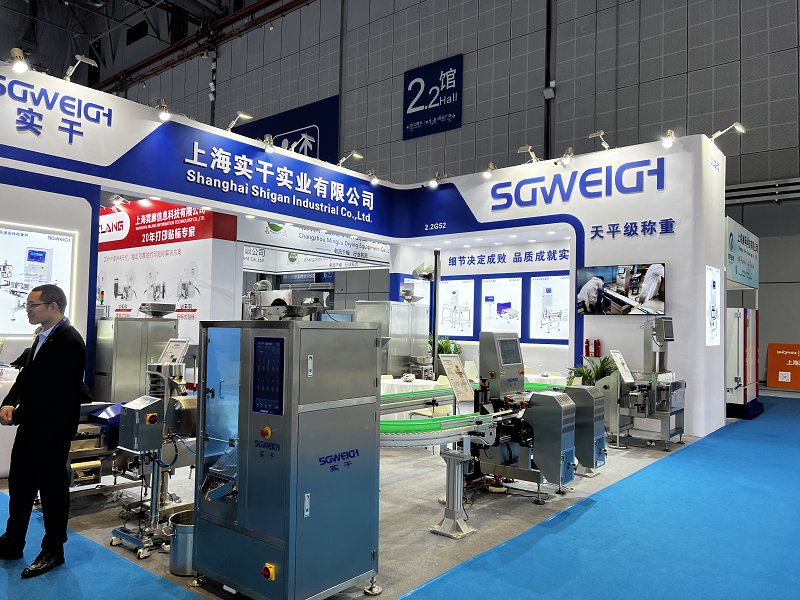

■ Exhibitions
■ Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
