■ Product Introduction

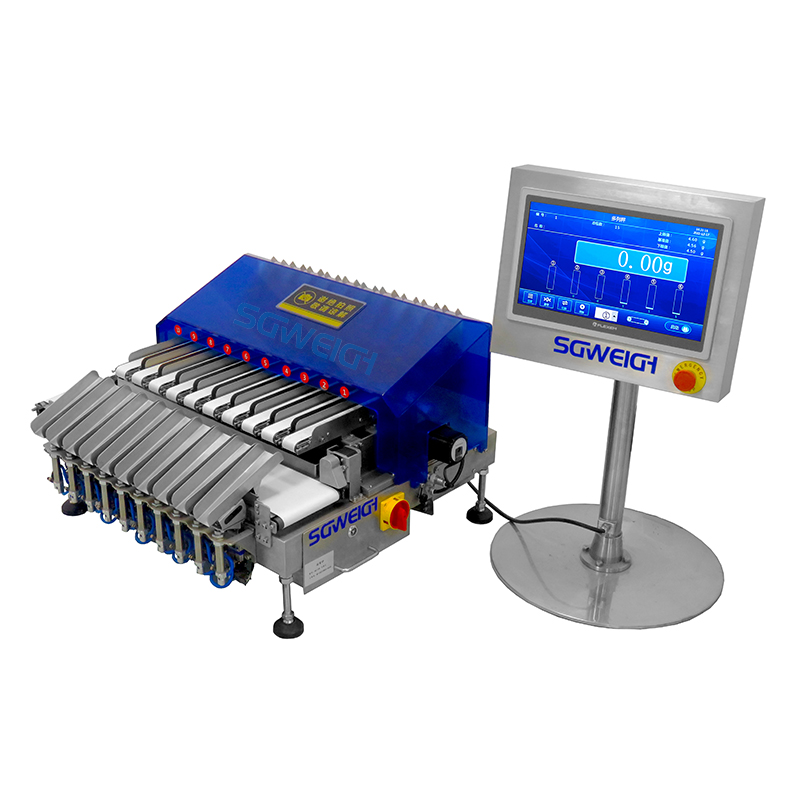

The 10-Column Checkweigher is a high-precision dynamic weighing device designed for fast, continuous weight detection and sorting of moving objects (products on the production line). 10 independent weighing channels can simultaneously process multiple columns of products conveyed in parallel, greatly improving detection efficiency.

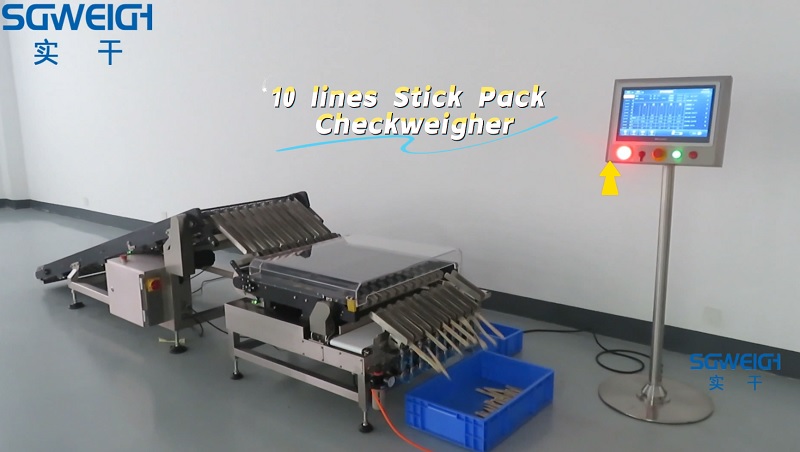

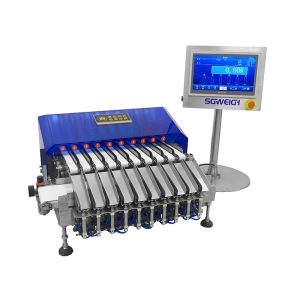

Stick Pack Food 10 lines Checkweigher
■ Tech Specifications
Type:SG-10X
Weighing scope:2-300g
Restrictions of product:L:180 W:40 H:2-20(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt width:30mm
Highest speed:70pcs/min(one lane)
Weight of machine:about 200Kg
Powder supply：AC220V 50HZ
Power:about 300W
Main material:SUS304(Stainless Steel)
■ Main Features
Dynamic weighing: When the product moves on the conveyor belt, the weighing sensor collects weight data in real time.
Automation: Seamlessly connect to the production line and provide real-time feedback control.
Multi-lane Synchronous Processing: 10 weighing channels work independently, and each column is tested simultaneously, with a speed of up to 700 pieces/minute, suitable for high-speed production lines.

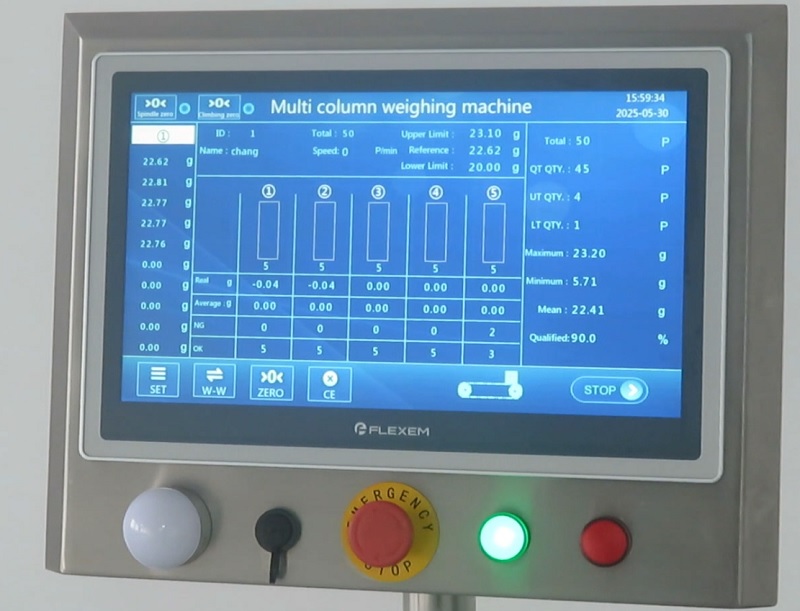

Data Integration: Weight data is uploaded to the control system, compared with the preset standard, and unqualified products are automatically eliminated.
■ Application
■ Customers
■ Exhibitions
■ Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
