|| Product Introduction

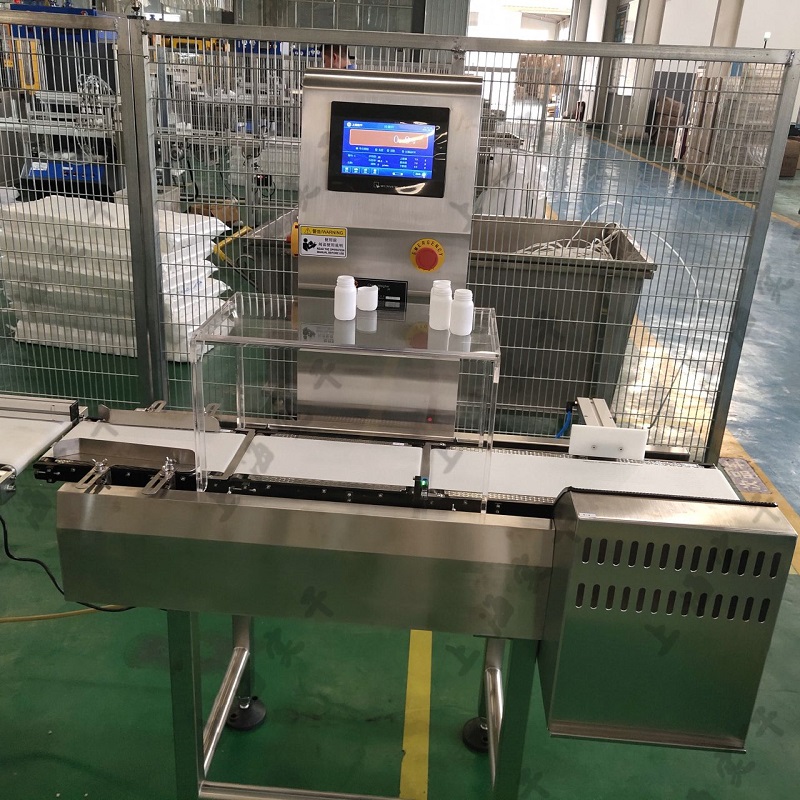

Online Bagged Plastic Components Checkweigher is a specialized system that can weigh both individual plastic parts and packaged plastic parts (multiple parts in a bag). Any deviation in the number of parts results in a weight variation.Toy Parts Touch Screen Weight Checker is crucial for quality control, especially in industries such as automotive, electronics, packaging, and medical devices.
|| Tech Specifications
Model:SG-150
Weighing range:5-500g
Minimum scale:0.1g
Checking speed :Max 120pcs/Min
Belt speed:0-65m/min

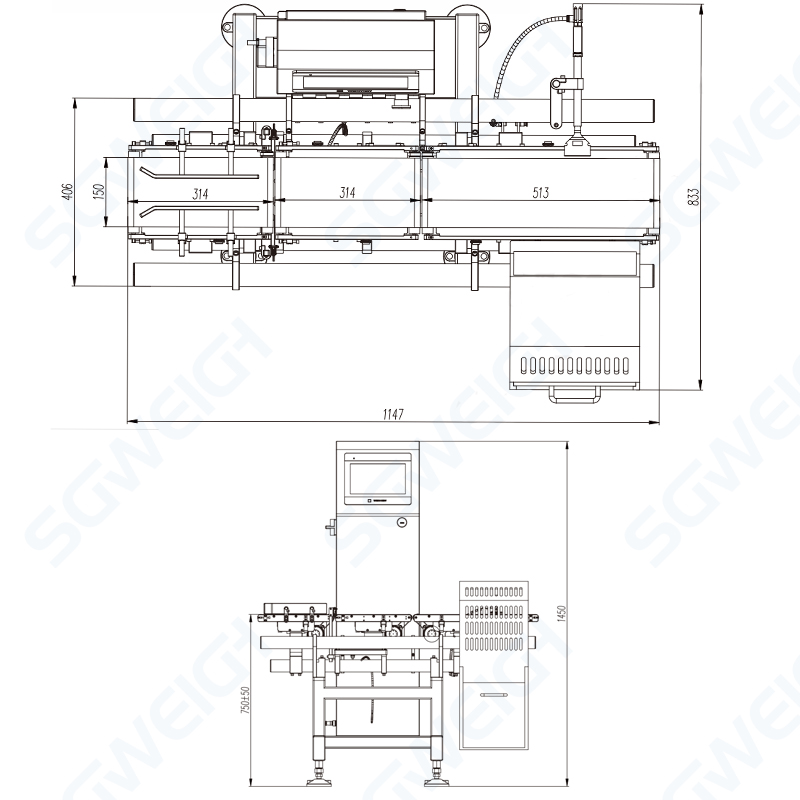

Box size limit:Length:200mm Width:150mm Height:3-200mm
Operation Way:Touch operation
Conveying direction:Facing the touch screen from left to right
Rejection method:Push Rejection
Belt height from the ground:750±50mm（can be customized）
Machine material:Stainless steel（SUS304）
Power supply:220V50/60HZ
Power:About300W
|| Main Features
1.High Precision – Measures small weight variations (depending on part size).
2.Fast Throughput – Handles high-speed production lines.
3.Rejection Mechanism – Automatically removes underweight/overweight parts (e.g., air blast, pusher arm, or diverter).
4.User-Friendly Interface – Touchscreen HMI for easy setup and monitoring.
5.Data Logging & Reporting – Tracks weight trends, defects, and production statistics.
6.Integration with Production Lines – Works with packing machine,metal detetcor.
7.Durability – Resistant to dust, static, and industrial environments.
|| Application
|| Our Company
|| Our Customers
|| Our Exhibitions
|| Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
