■ Product Overview

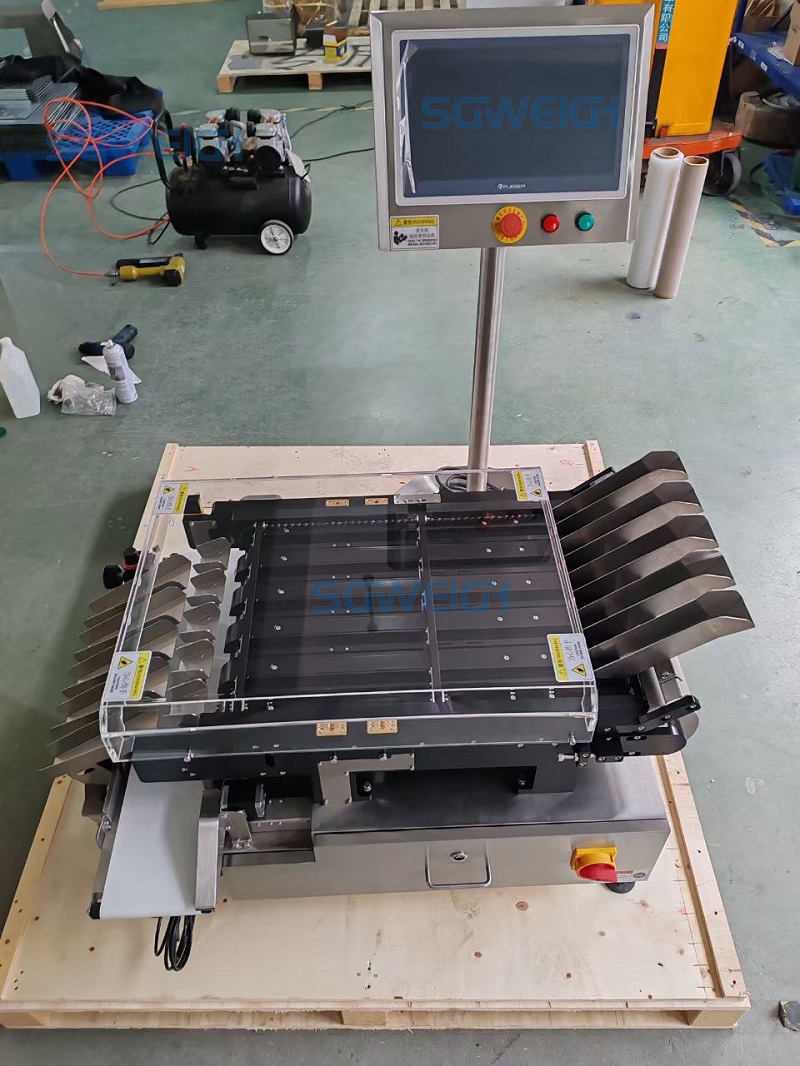

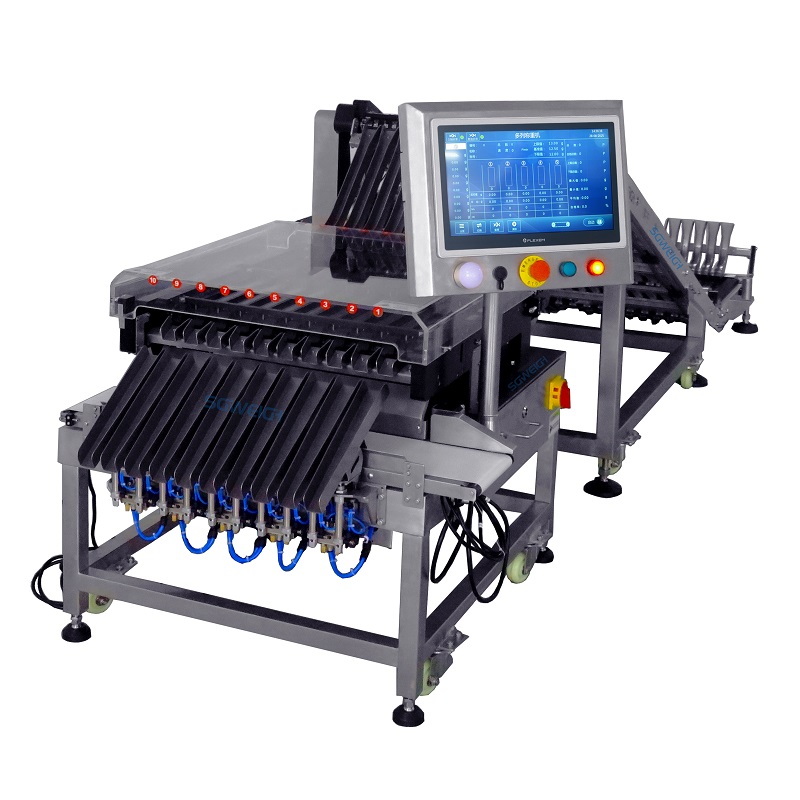

The High-Speed Fruit Puree Multi-line Checkweigher is a high-efficiency quality control system integrated into the back end of a multi-row packaging machine.Multi-line Checkweigher for Coffee Stick can simultaneously detect the weight of multiple parallel-produced strips, ensuring that the weight of each bag meets preset standards. Through high-frequency sampling technology, the system automatically rejects underweight or overweight defective products and feeds real-time weight data back to the packaging machine for dynamic replenishment.
■ Tech Specifications
Type:SG-10X
Weighing scope:0.5-100g
Restrictions of product:L:180 W:40 H:2-20(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt width:30mm
Speed:40-60 pcs/min(one lane)
Weight of machine:about 200Kg
Powder supply：AC220V 50HZ
Power:about 300W
Main material:SUS304(Stainless Steel)
Multi-channel passing products to improve production efficiency
(the number of channels can be customized)
■ Main Features
1. Space Optimization:Designed for the compact discharge port of multi-row packaging machines, it adopts a multi-channel parallel mechanical structure, significantly saving production workshop floor space.
2. Independent Rejection Mechanism: Each channel is equipped with an independent rejection device, ensuring that the normal operation of other channels is not affected when a single bag fails to meet standards.
3. Can store inspection data for 100 products, allowing users to easily switch between them.
4. USB data storage interface, allowing report data to be transferred to a PC for analysis and printing.
5. Password-protected parameter settings, accessible only to administrators.
6. Remote real-time monitoring capability;
7. Compliance: Fully compliant with GMP, FDA, and CE standards, supporting data traceability (21 CFR Part 11) and statistical report output.
■ Application
■ Customers
■ Exhibitions
■ Packaging & Delivery
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
