■ Product Introduction

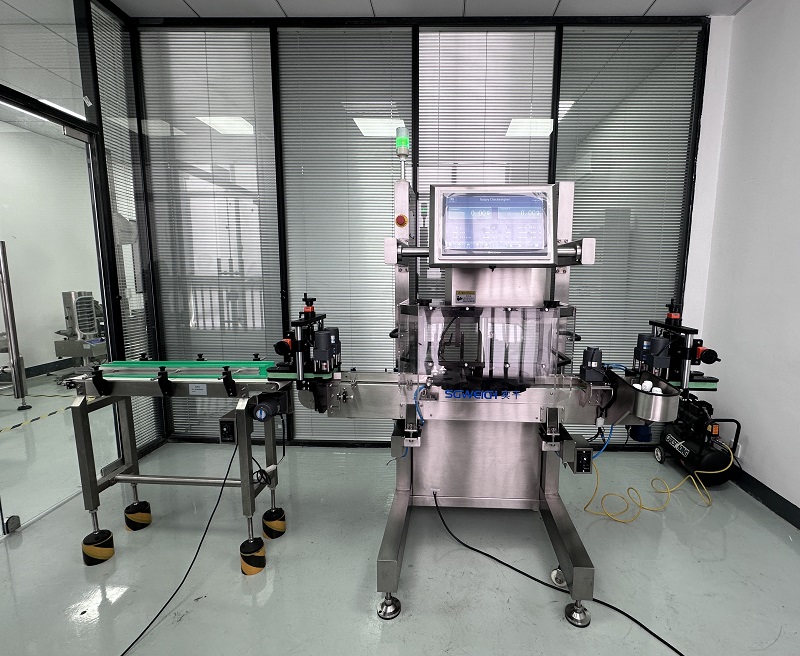

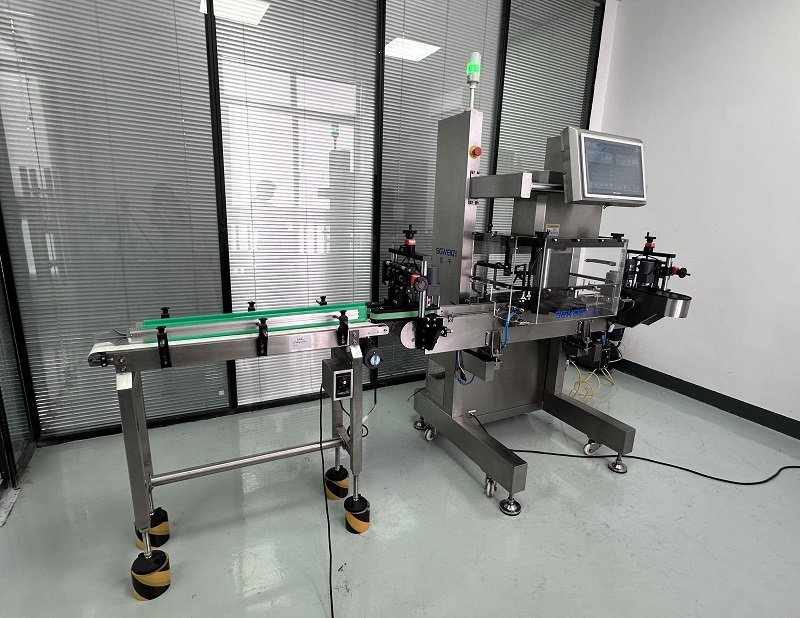

The Glass Bottle Turntable Checkweigher is a high-speed, automated, precision machine for simultaneously weighing two bottled products. This Bottled Products Rotary Weight Checker measures cylindrical products such as aerosols, glass bottles, and plastic bottles at high speed and can be easily integrated into production lines. The servo-motor-controlled star wheel can be interchanged to accommodate different product sizes.
■ Tech Specifications
Model: SG-Z2 (dual channel)
Weighing range: 5-300g
Minimum scale: 0.01g
Sorting accuracy: ±0.02 grams (depending on the product)
Sorting speed: maximum 50 pieces/minute (single channel)
Conveying speed:0-50m/min
Operation mode: touch operation
Conveying direction: Facing the touch screen from left to right
Rejection method: air blowing removal/push plate removal
Belt height from the ground: 750±50mm (can be customized according to customer requirements)
Machine structure: stainless steel (SUS304)
Power supply: 220V 50-60HZ
Power: about 1500W
■ Main Features

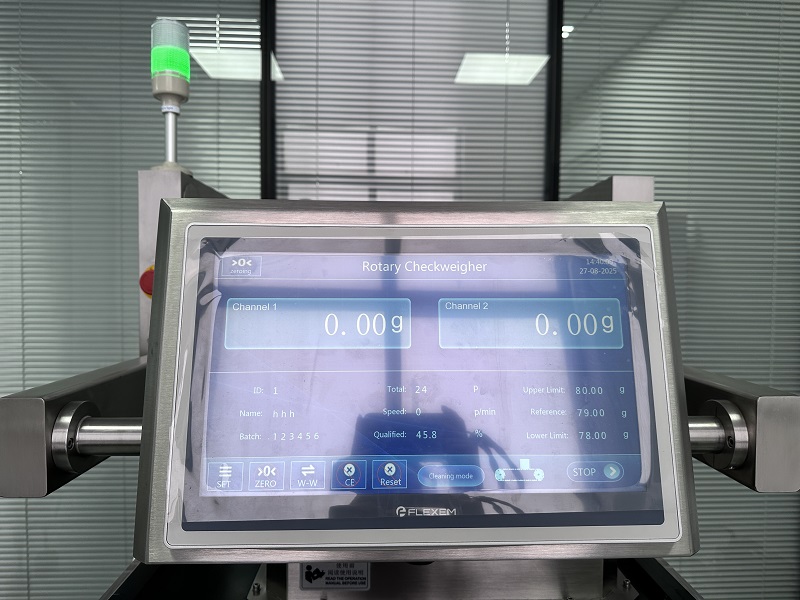

◎ Large screen display for clear viewing and easy operation.
◎ Default Chinese and English user interface.
◎ Photoelectric positioning: The turntable accurately delivers products to the load cell.
◎ Durable chain conveyor.
◎ Three-level operation permission management, with customizable passwords.
◎ 100 preset product recipes.
◎ Automatic rejection of unqualified products.
◎ Multiple product lanes improve production efficiency (customizable number of lanes).
■ Application
■ Customers
■ Exhibitions
■ Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
