■ Product Introduction

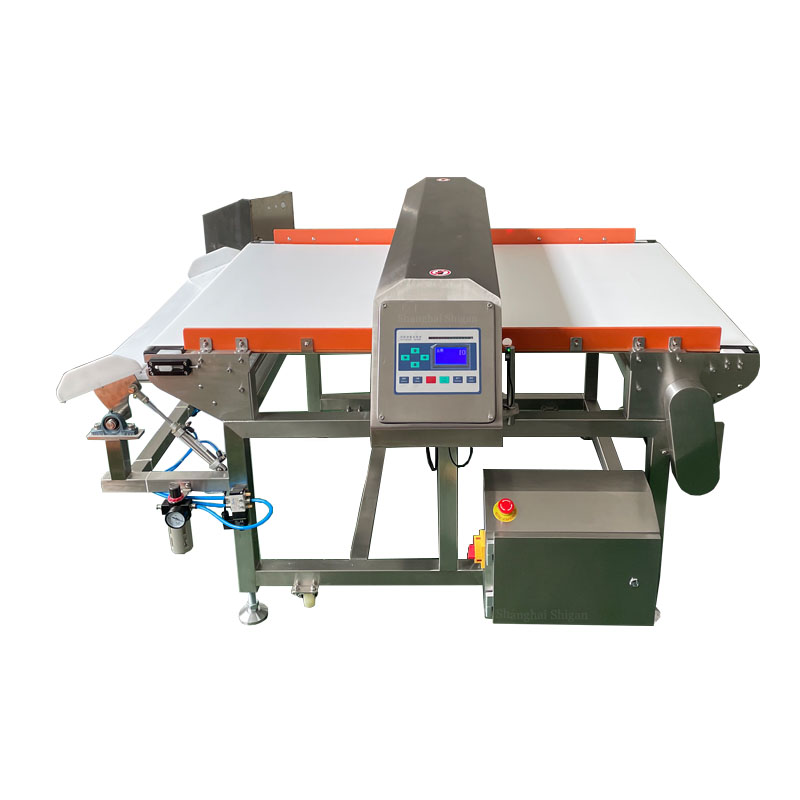

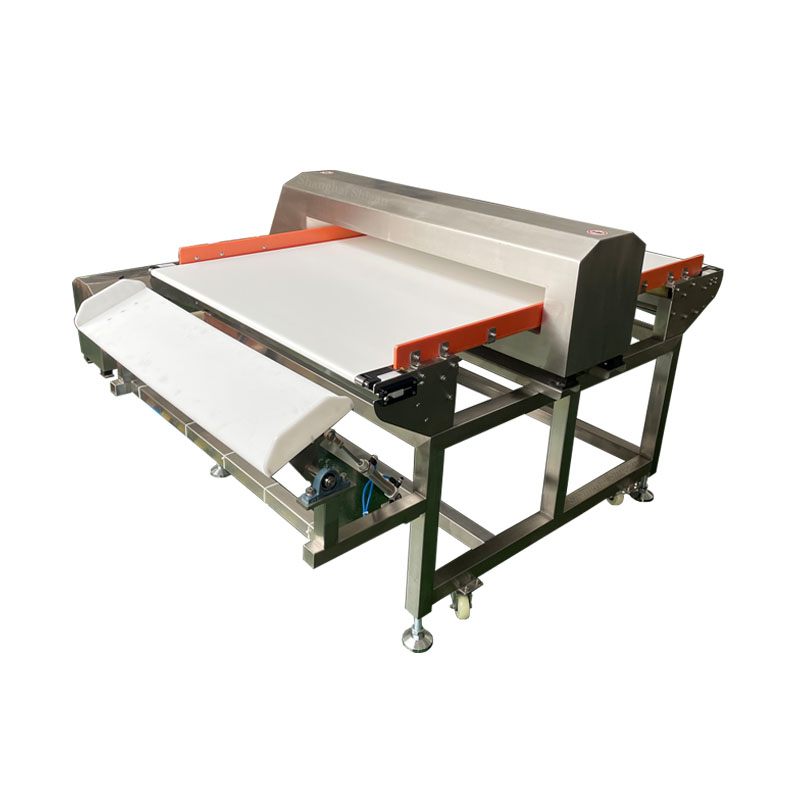

Customizable Conveyor Belt Food Metal Detector is a high-precision, high-sanitation automated detection device used to detect and remove metal foreign matter (such as iron, stainless steel, copper, aluminum, etc.) mixed into the candy production line.Metal Detector for Wrapped Candy Production Lines can effectively ensure food safety and avoid product recalls or brand reputation losses caused by metal contamination.
■ Tech Specifications
Type:Conveyor Metal Detector
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED fast key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W

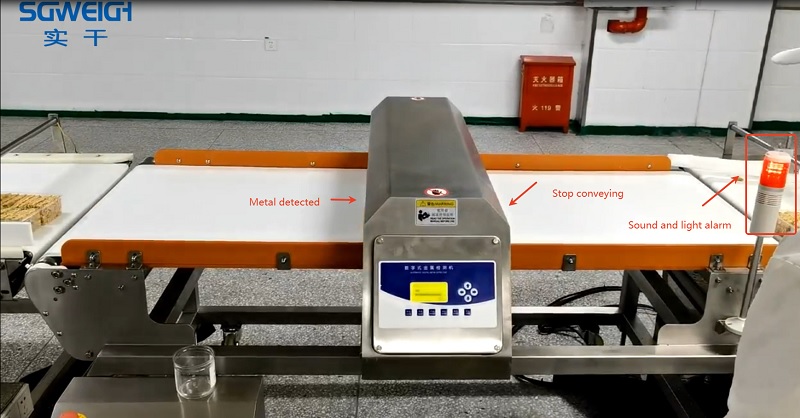

Alarm mode: metal detection, alarm belt stop or automatic removal
1. The above detection accuracy is for reference only. The actual detection accuracy will be obtained after testing.
2. Special specifications can be customized according to customer requirements.
3. The material used for the metal detection device is SUS304, dustproof and waterproof.
4. The sense of detection is related to the properties of the tested product (humidity, temperature, salt content, mineral matter, etc.).
■ Main Features
1. Can be used almost anywhere in food processing lines.
2. Operate at various speeds to suit a variety of food production lines.
3. Check product types: bulk/boxed/bagged/bottled, etc.
4. Suitable for food, aquatic products, frozen meat and daily necessities, etc.
5. 304SUS bracket, easy to clean and maintain.
6. Simple operation.
7. Ensure the safety of processing and packaging lines.
■ Application
Food, pharmaceutical, chemical, rubber, ice, ice products, toys, shoes, leather, knitting, printing and other industries to detect the metal impurities in the production process or raw materials.
■ Customers
■ Exhibitions
■ Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
