|| Product Introduction

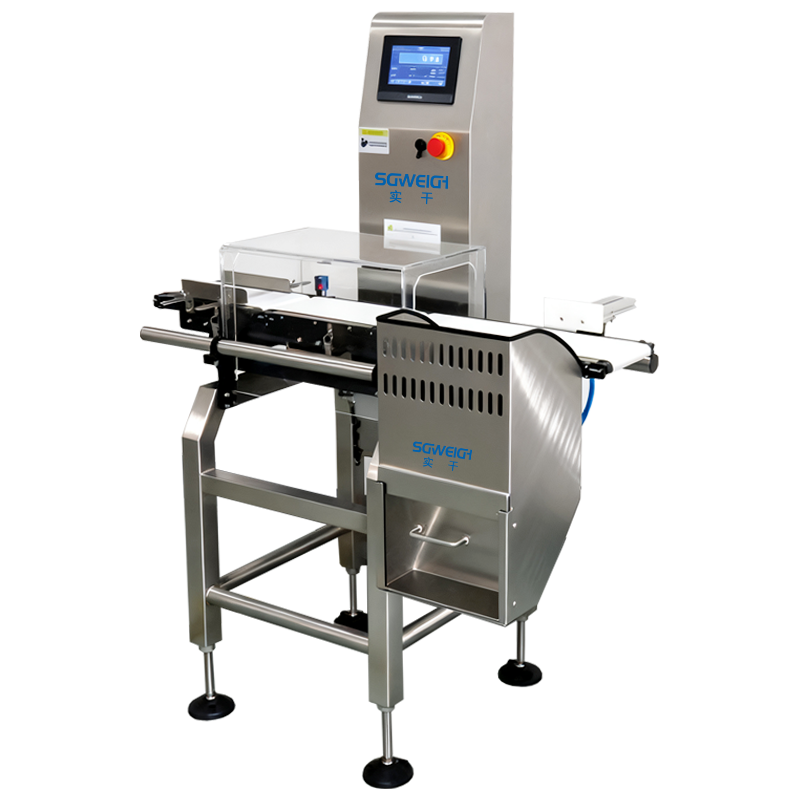

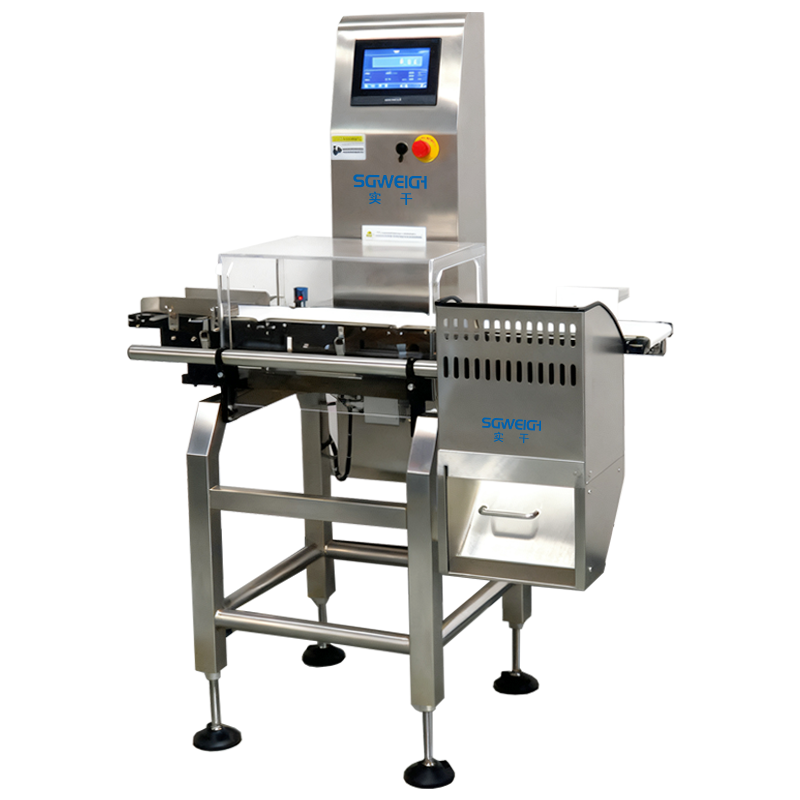

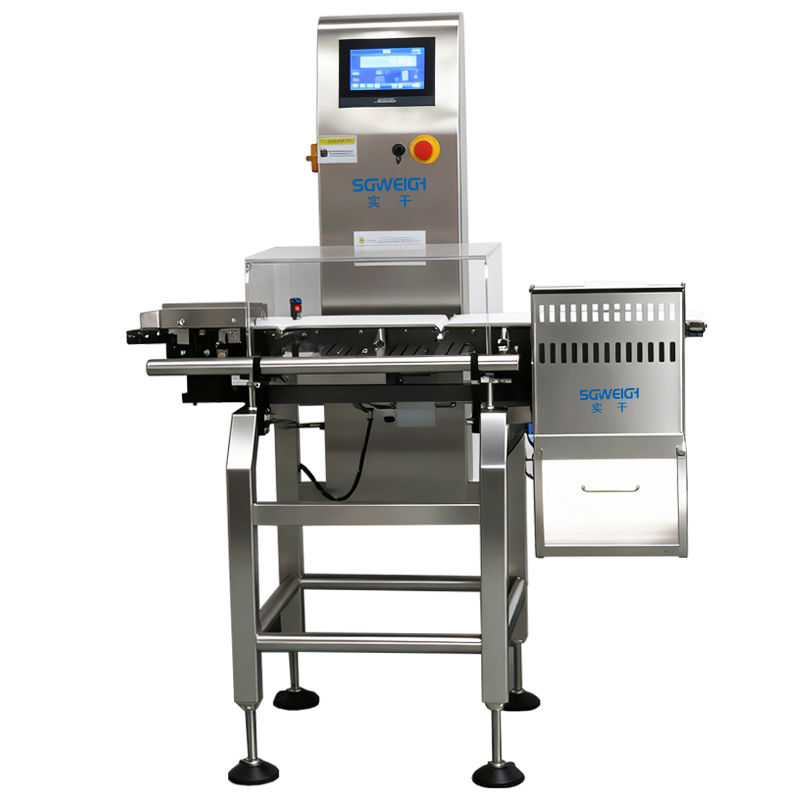

Cosmetic / Medicine Automatic Checkweighers are online dynamic weighing systems used to weigh each package (e.g., bottles, boxes, tubes, bags) individually during high-speed production line operation, automatically rejecting defective products.
|| Tech Specifications
Model:SG-150
Weighing range:5-500g
Minimum scale:0.1g
Checking speed :Max 120pcs/Min
Belt speed:0-65m/min
Box size limit:Length:200mm Width:150mm Height:3-200mm
Operation Way:Touch operation
Conveying direction:Facing the touch screen from left to right
Rejection method:Push Rejection
Belt height from the ground:750±50mm（can be customized）
Machine material:Stainless steel（SUS304）
Power supply:220V50/60HZ
Power:About300W
|| Main Features
1. Feeding Section:
Adjusts product spacing to ensure only one product enters the weighing area at a time.
2. Weighing Section:
The core area, utilizing high-speed digital filtering technology to capture instantaneous dynamic weight.
3. Rejection Section:
Includes air-blowing, push-bar, lever-type, or drop-in methods to sort overweight/underweight products.
4. Control System:
Touchscreen interaction, supports multi-product formula storage and data export (USB/Ethernet).
|| Application
Pharmaceutical Industry:
1.Missing Component Detection: Detects whether instructions, desiccants, or blister packs are missing from medicine boxes.
2.Compliance: Must comply with 21 CFR Part 11 and GMP standards.
3.Small Capacity, High Precision: Designed for lightweight products such as capsules and blister packs.
Cosmetic Industry:
1.Multi-Shape Compatibility: Adapts to complex packaging such as irregularly shaped bottles, tubes, and cosmetic boxes.
2.Hygienic Design: Stainless steel body, easy to clean, preventing cross-contamination.
|| Our Customers
|| Our Exhibitions
|| Packaging & Delivery
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
