●Product Introduction

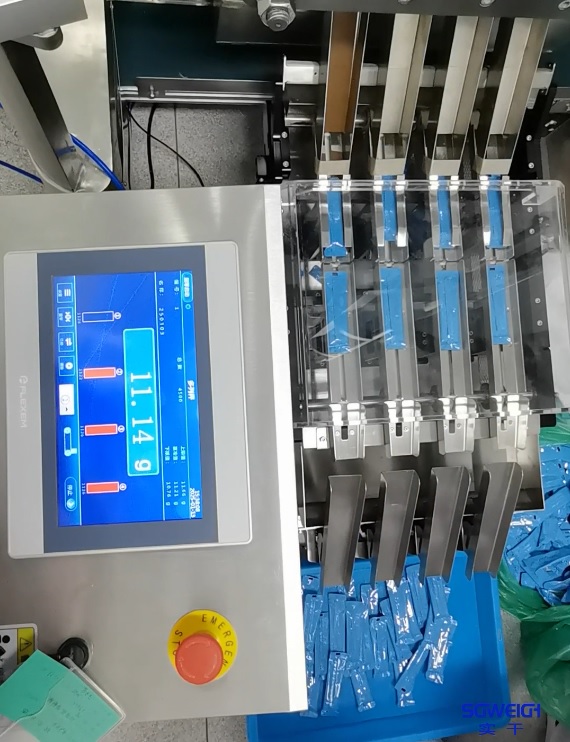

Chocolate Bars 4-6 Track Weight Checker is a high-speed, multi-lane precision weighing machine designed specifically for weighing stick packs.Multi lane Stick Pack Powder Checkweigher can handle products simultaneously on 4, 5, or 6 parallel lanes, dramatically increasing production throughput.
Its primary function is to ensure that each stick pack meets predetermined weight limits, protecting both the manufacturer and the consumer from underweight or overweight products, which is crucial for regulatory compliance and cost control.
●Tech Specifications
Model:SG-4X Checkweigher
Weighing range:1-50g
Minimum scale:0.01g
Weighing speed:The single-lane speed can reach up to 70 pcs/min (depending on the length of the product)
Restrictions of product:L:180 W:40 H:2-20(mm)
Operation way:Touch screen
Operation screen:12 inch screen
Material:Stainless steel（SUS304）
Power supply:220V 50-60HZ
Power:About 200W
Weight:About160KG
●Main Features
1.Feeding: Stick packs are fed from the form-fill-seal (FFS) machine onto the infeed of the checkweigher.
2.Lane Alignment: The infeed system gently guides and separates the packs into the defined number of parallel lanes.
3.Weighing: As each stick pack enters its dedicated lane on the weighing module, it is momentarily isolated on the weighing belt. The load cell instantly captures its weight measurement.
4.Decision: The control system compares the measured weight against the preset acceptable range.
●Accept: If the weight is within tolerance, the pack continues undisturbed to the outfeed conveyor.
●Reject: If the weight is outside the tolerance range, the system will remember the package and trigger the corresponding reject device when the defective package passes the reject station, removing it from the production line.
5.Data Reporting: The system continuously logs data, providing real-time and historical reports on production counts, reject counts, average weight, and statistical process control data.
●Application
●Our Customers
●Our Exhibitions
●Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
●FAQ
Q1. Are you a manufacturer or a trader?
A: Shanghai Shigan Industrial Co., Ltd. is a manufacturer located in Shanghai,China. We have our own product design team and factory.
Q2. How many types of checkweighers do you have?
A：Our company has a variety of models of checkweighers, suitable for most products and can be applied to almost all industries. Our company’s checkweighers can be customized according to demand.We have standard checkweighers, bottle checkweighers, multi-lane checkweighers,tablet capsule checkweighers, box checkweighers,heavy object checkweighers and so on.
Q3. What factors should be considered when choosing a checkweigher?
What is the product you want to weigh?
How many grams/kg of the product?
What is the size of the product?
What are the speed requirements?
Accuracy requirements?
Based on the above information, our sales will recommend the most suitable checkweigher for you.
Q4. How much does the checkweigher cost?
A:There is no quick,easy answer to this question.Our machines are customer-specific, so “standard pricing” is not usually available.Pricing depends largely on your unique needs,such as the product you want to weigh, the size of the product,the speed you want to achieve,or the complexity of the process.Contact us to get a specific quote.
Q5. What kind of shipping methods can you provide?
A: Sea, air and international express. We will send photos and videos of the machine to customers before delivery to check the operation of the machine.
Q6. Do you accept customer logos and customizations?
A: We accept all kinds of customization and logos for all products.
Q7. How is the product packaging?Is it easy to be damaged during transportation?
A: No. We use wooden boxes, which are very safe.
