■ Product Introduction

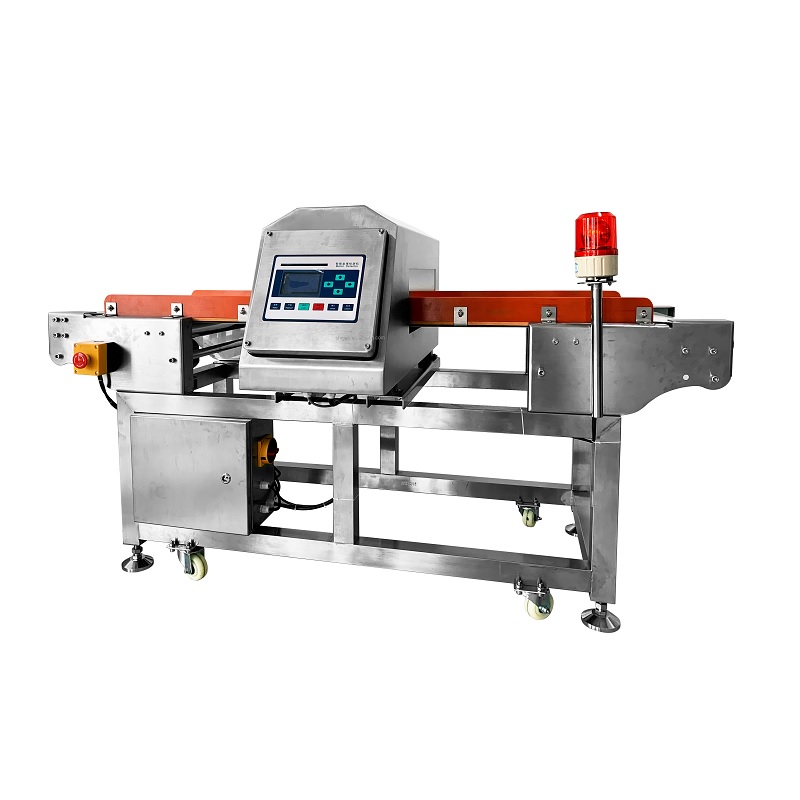

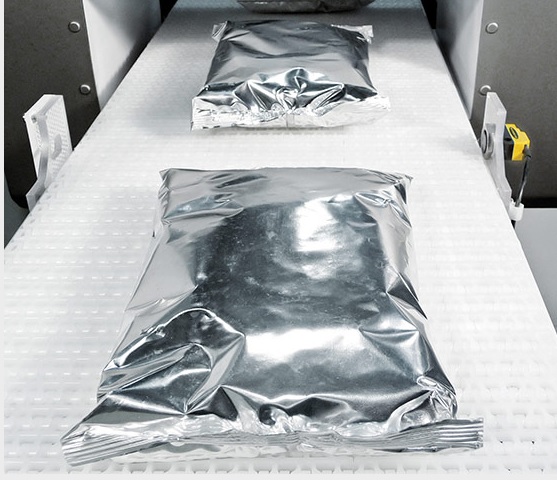

The Aluminum Foil Packaging Products Metal Detector can detect metal (iron, non-iron, stainless steel) in aluminum foil packaging. The aluminum foil metal detector has a built-in high-sensitivity sensor that can effectively shield the signal from the aluminum foil packaging product and accurately determine the magnetic metal foreign matter in the package.Metal Detector for Cosmetics Pharma Food is suitable for the detection of aluminum foil packaging products such as coffee bags, peanuts, dried meat products, chocolate and other materials, and has a wide range of applications.
■ Tech Specifications
Model: SG-JH250
Belt speed: 10-60m/min adjustable, stepless speed regulation
Passing height: H30mm-H150mm
Can detect metals: Fe, SUS304, magnetic materials
Waterproof grade: IP66
Frequency: low frequency
Maximum product weight: 5kg
Machine weight: 80kg
Rejection type: air blowing, falling, push plate, lever (need to be equipped separately)
■ Main Features
1. High sensitivity, anti-aluminum foil interference
Adopt intelligent recognition technology (such as phase adjustment, frequency adaptation) to effectively distinguish aluminum foil background signal and metal foreign body signal.
Can detect tiny metals (such as iron, stainless steel, copper, etc.), with a sensitivity of φ0.3~φ1.0mm (depending on the metal type and aluminum foil thickness).
2. Strong adaptability
Multi-band selection: For aluminum foil packaging with different thicknesses and layers (such as single-layer aluminum foil, composite film), adjust the detection frequency to reduce false alarms.
Product effect compensation: Automatically calibrate the conductivity of the aluminum foil itself to avoid misjudgment.
3. Automated integration
Can be linked with the production line (such as conveyor belts, rejection devices) to achieve online detection + automatic rejection to ensure assembly line efficiency.
4. Humanized design
Touch screen operation: intuitive parameter adjustment, and multiple product detection modes can be preset.
IP66 protection: Adapt to humid and dusty environments (such as food workshops).
■ Application
Food industry: aluminum foil packaged chocolate, capsule coffee, condiments, etc.
Pharmaceutical industry: aluminum-plastic medicine plates, aluminum foil sealed medicine bottles.
Daily chemical industry: toothpaste tubes, cosmetic aluminum film packaging.
■ Company
■ Customers
■ Exhibitions
■ Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
