■ Product Introduction

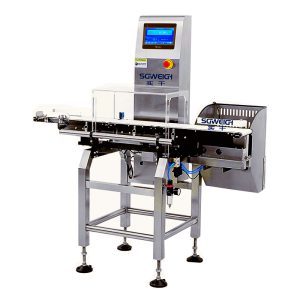

2 Lines Bag Box Stick Checkweigher is a weighing system designed to simultaneously inspect the weight of products on two separate production lines.Automatic Blister Double Track Weight Checker’s commonly used in packaging and manufacturing to ensure products meet weight specifications and to reject those that are under or overweight.
■ Tech Specifications
Model: SG-2X
Weighing range: 1-50g
Product restrictions: L:180 W-40 H:2-20(mm)
Sorting accuracy: ±0.01g (Depends on products)
Graduation value: 0.01g
Maximum speed: 70pcs/min
Belt width: 100mm
Machine weight: about 50kg
Power supply: AC220V±10%50HZ
Power: about 100W
Main material: SUS304
■ Main Features

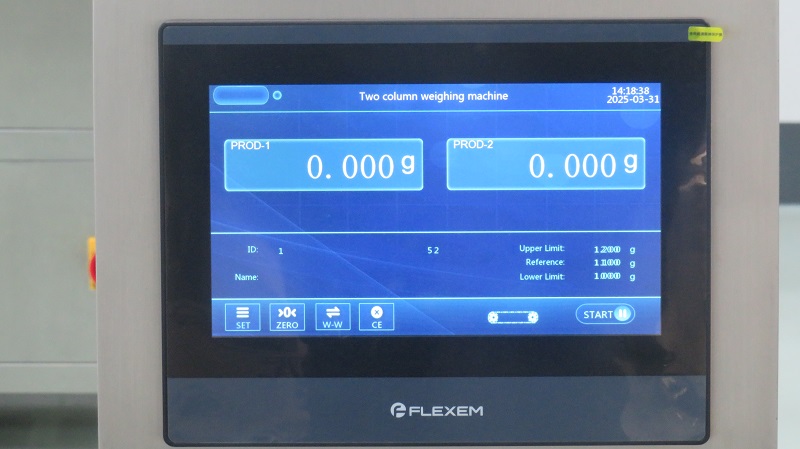

1. Touchscreen interface with human-computer interaction.
2. Default Chinese and English user interface.
3. Customizable channels for improved production efficiency.
4. Bar charts and line graphs for customer analysis of product qualification rates.
5. Three-level access control with customizable passwords.
6. 100 preset product recipes.
7. Automatic rejection of unqualified products.
■ Application
■ Company
■ Customers
■ Exhibitions
■ Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
