■ Product Introduction

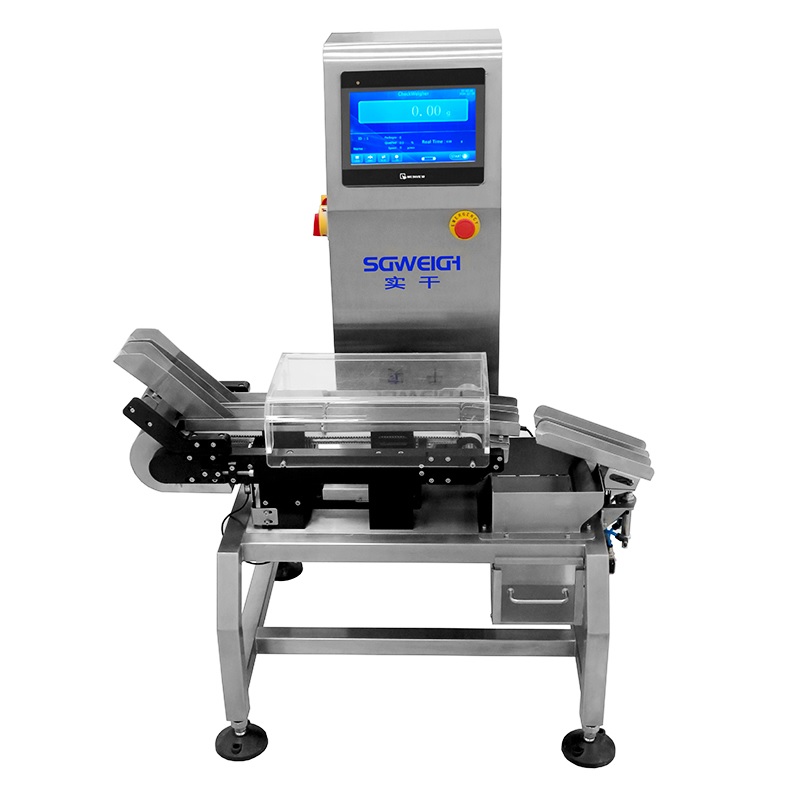

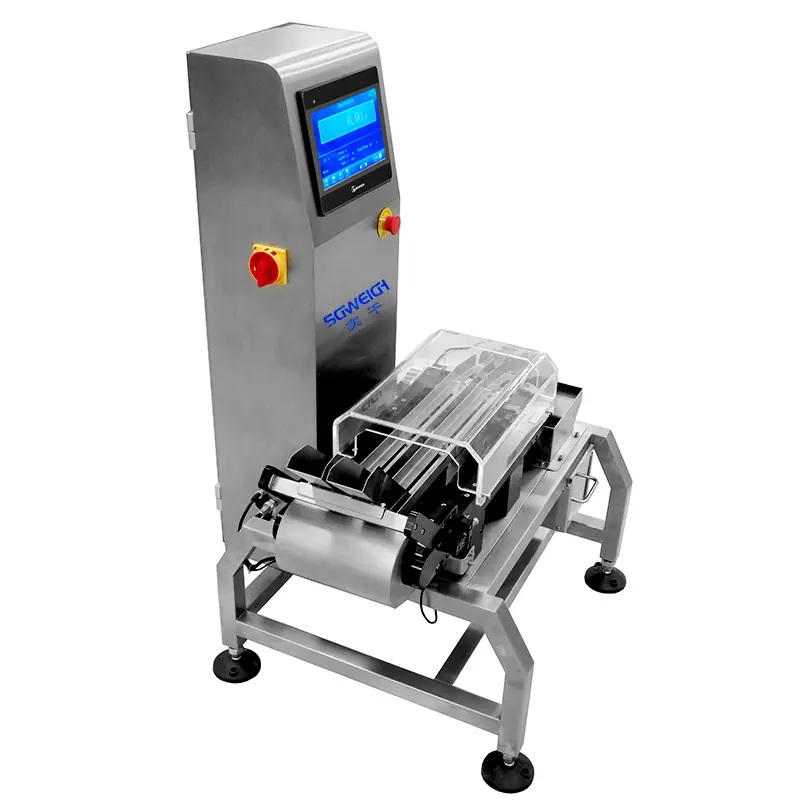

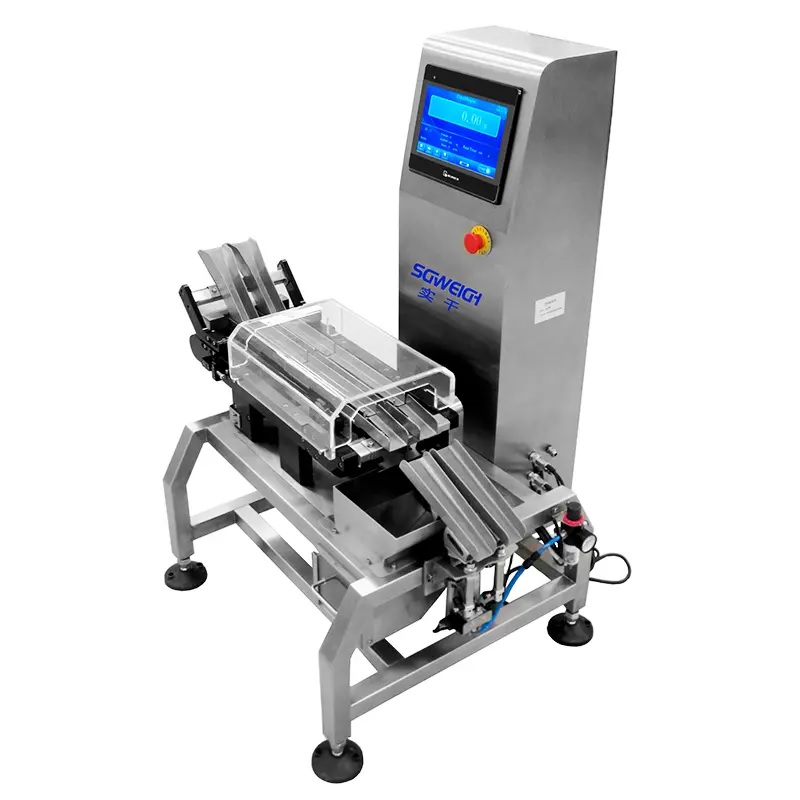

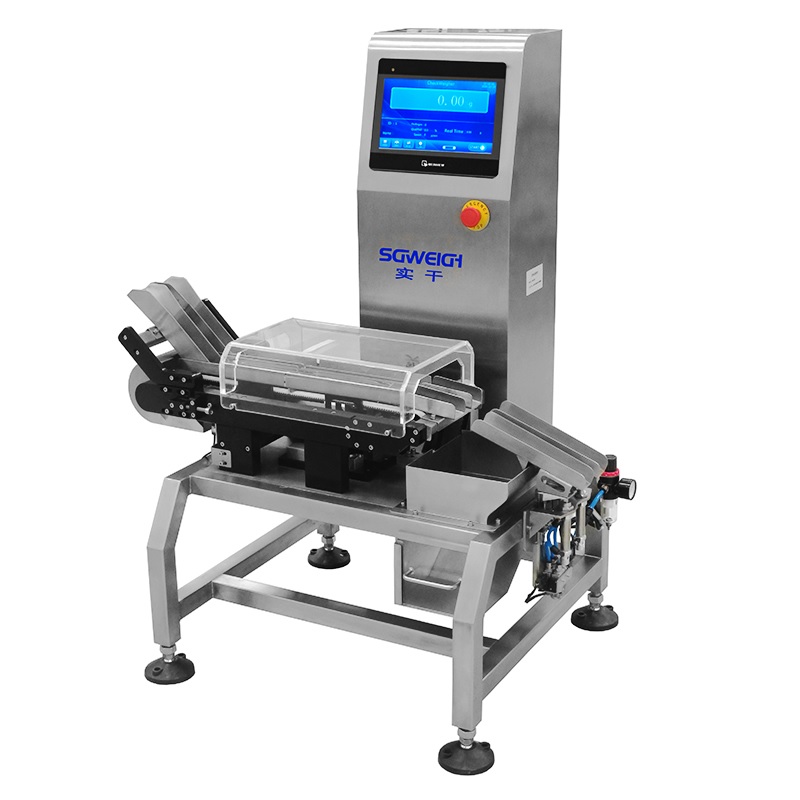

This Dual-lane Checkweigher is designed to inspect two lanes of product, ensuring the weight of food, pharmaceuticals, and other products.2 Channels Stick Packs and Tubes Checkweigher can inspect and process items simultaneously on the production line, allowing for synchronized but non-interfering production lines.
■ Tech Specifications
Model: SG-2X
Weighing range: 1-50g
Product restrictions: L:180 W-40 H:2-20(mm)
Sorting accuracy: ±0.01g (Depends on products)
Graduation value: 0.01g
Maximum speed: 70pcs/min/lane
Belt width: 100mm
Machine weight: about 50kg
Power supply: AC220V±10%50HZ
Power: about 100W
Main material: SUS304
■ Main Features
1. Touchscreen interface.
2. Default Chinese and English user interface.
3. Weight compensation function.
4. Bar graphs and line charts for customer analysis of product quality.
5. Three-level operation permission management with customizable passwords.
6. 100 preset product recipes can be stored.
7. Automatic rejection of unqualified products.
Optional
USB port
RS485/232/LAN connection port
Sound-light alarm lamp

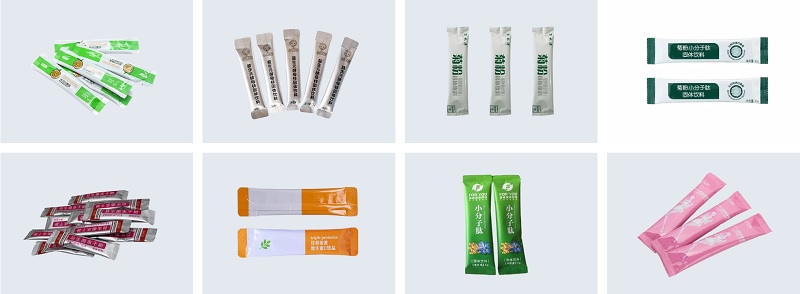

■ Application
■ Customers
■ Exhibitions
■ Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
