|| Product Introduction
It is a high-speed, precision Industrial Checkweigher integrated into a conveyor system. Its function is to weigh each box as it moves along the production line and reject any box that does not meet the preset weight standard (underweight or overweight).
Box Check Weigher for Production Line
|| Tech Specifications
Type:SG-150U
Weighing Range:3-500g
Limited of product:L: 200 W:150 H: 3-200mm
Accuracy:±0.1g Depends on product
Division Scale:0.1g
Belt Speed:0- 60m/min
Max Speed:150 pcs/min
Belt Width:150mm
Machine Weight:60kg
Power Supply:AC 110/220V±10% 50HZ
Power:100W
Main Material:SUS304 stainless steel
|| Main Features
1. High Accuracy and Resolution:
Capable of detecting even the slightest weight deviation. We’re talking about the weight of a single blueberry (approximately 1-2 grams). Resolution is typically accurate to 0.1 gram.
2. Ultra-High Speed:
The packaging line operates at extremely high speeds. Hundreds of boxes can be weighed per minute.
3. Gentle Handling:
The conveyor and rejection system do not impact or damage the soft fruit. The airflow rejector is fast, precise, hygienic, and contactless (preventing bruises).
4. User-Friendly Software:
A simple interface allows operators to easily set targets and limits and easily view various data.
5. Easy Integration:
Easily connects to upstream (fillers, sealers) and downstream (labelers, case packers) equipment.

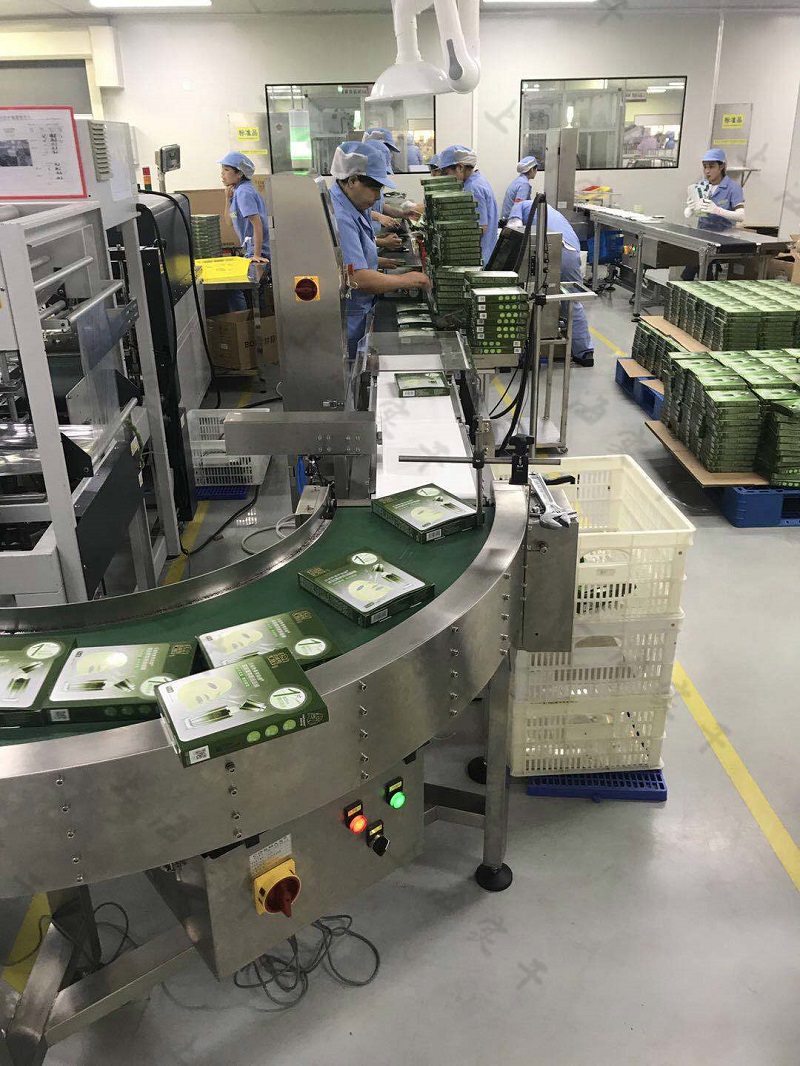

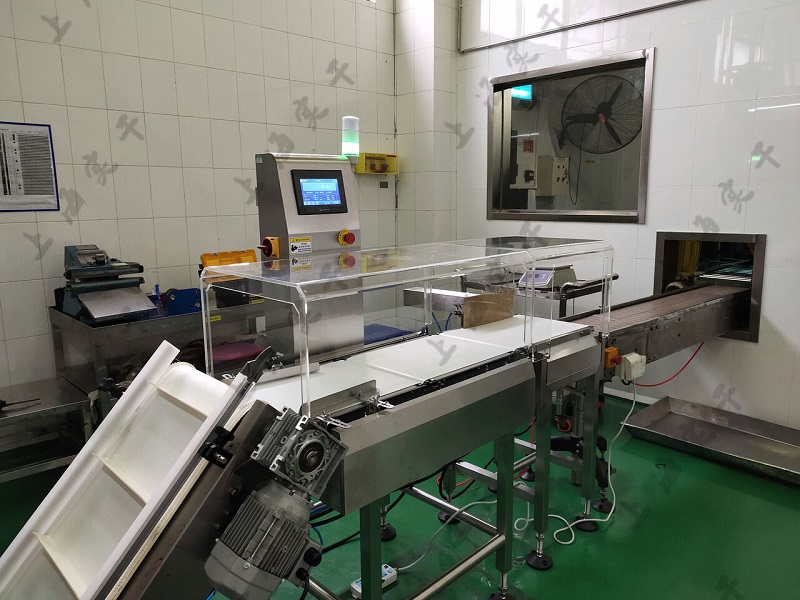

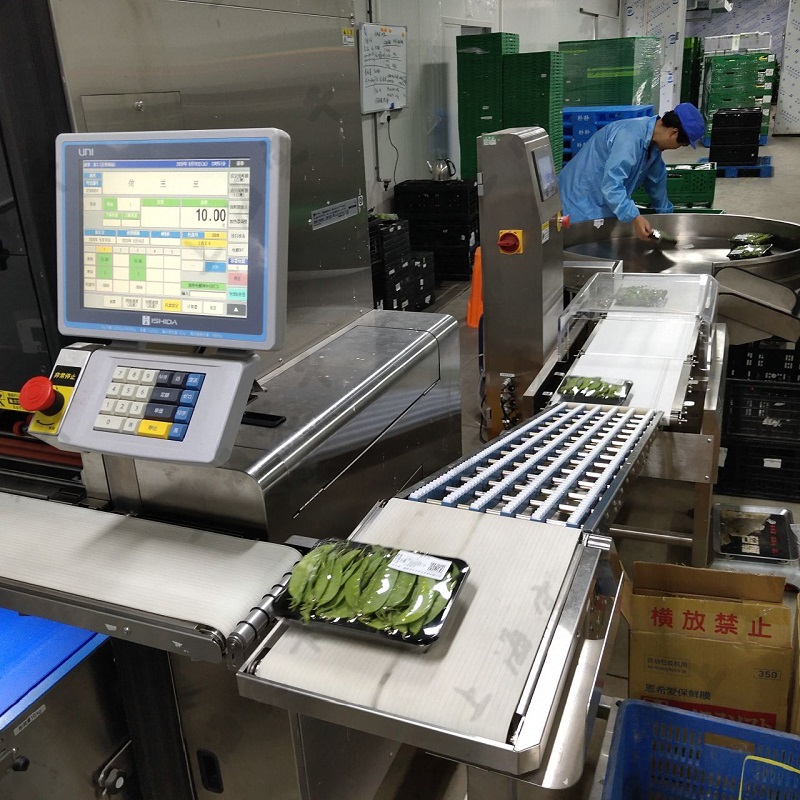

|| Application
|| Our Customers
|| Our Exhibitions
|| Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
